1kw 1.5kw 2kw Hand Held Fiber Laser Welder Portable
FEATURE:
Simple & easy to learn, flexible and convenient: The machine adopts an integrated structure. There is no high requirements for welder, after short training, they can get started using the machine.
Low machine cost and maintenance cost: Hand-held laser welding machine, no need a fine welding working-table when operate. It’s also less consumables, low running costs and maintenance costs. It’s high cost performance;
Save welder: Welding speed is fast, 5-10 times faster than traditional welding, and one machine can save at least 2 welders a year; the welded seam after welding is smooth and beautiful, reducing the subsequent polishing process, saving time and cost;
Good quality: The laser welding workpiece has no deformation, no welding scar, and the welding is firm and stable;
Safety protection: It has a contact type safety protection function to avoid accidental laser emission and ensure that laser can only be welded after contact with metal. Equipped with laser protective glasses, which need to be worn when welding to ensure safety.
|
Model
|
ZLW-1000W
|
ZLW-1500W
|
ZLW-2000W
|
|
Continuous power
|
1000W
|
1500W
|
2000W
|
|
Fiber optical length
|
≥10m, can be customized
|
||
|
Machine Dimension
|
600mm*1000mm*950mm
|
600mm*1000mm*950mm
|
600mm*1000mm*950mm
|
|
Machine Weight
|
300kg
|
300kg
|
300kg
|
|
Welding Head Weight
|
1.0kg
|
1.0kg
|
1.0kg
|
|
Working Voltage
|
220V
|
380V
|
380V
|
|
Protective gas interface
|
6mm quick plug
|
||
|
Total Power
|
3kw
|
4.5kw
|
5.5kw
|
|
Weldable materials
|
Stainless steel, galvanized sheet, aluminum alloy, brass……
|
||
|
Welding thickness
|
1.5mm tailor welding
|
2.5mm tailor welding
|
3.5mm tailor welding
|
|
Wire feeding function
|
Yes
|
Yes
|
Yes
|
|
Working temperature
|
-30℃ ～ 40℃, antifreeze is needed in low temperature environment
|
||
|
Storage temperature
|
Temperature -40℃～80℃, pay attention to empty the water tank at low temperature;
Humidity: 30%～75%RH; Keep no corrosive gas. |
||

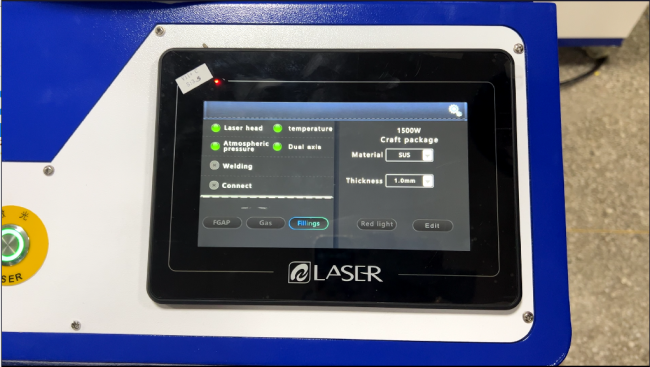

1. The control system is simple, easy to learn, flexible and convenient.
2. It with low requirements for operators, simple training posts and simple and fast operation
3. Multi dimensional welding is convenient
LASER WELDING HEAD:
The brief introduction of laser welding gun.
WELDING NOZZLE:
5 pieces nozzles, different welding nozzle can be chosen to adapt various angels of welding.
Only when the copper nozzle of the welding head touches the workpiece and presses the button switch at the same time, the welding head will be welded. Avoid accidental light emission caused by mistakes.
SAMPLES:
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service
2. If I know nothing about laser cutting machines, which model should I choose?
Please tell us your materials, thickness, size, and the cutting objects (plates, tubes, etc) then we will provide you with professional suggestions.
First, we have a detailed user manual and videos for your learning. Second, our engineers will provide you with technical support in time. If you want, we can provide you with training in our factory or at your door.
4. How about the price? Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry
5 . How about the payment?
T/T,30% deposit, and balance are after the production is finished.
Also, we accept the PAYPAL, west union, etc.
For our standard model, the delivery time is 10-15 working days. For a customized model, it will need about 20-40 working days.
7. Do I need the gas for my fiber laser welding machine?
Yes. The Ar or helium are necessary for one fiber laser welder.
