Ultra Large Format Sheet Metal Laser Cutter 24000mmx2500mm For Metal Sheet
Price:
USD12000-25000 per Piece
MOQ:
1
Delivery Time:
10-30days
Brand:
ZLTECH
Product Description

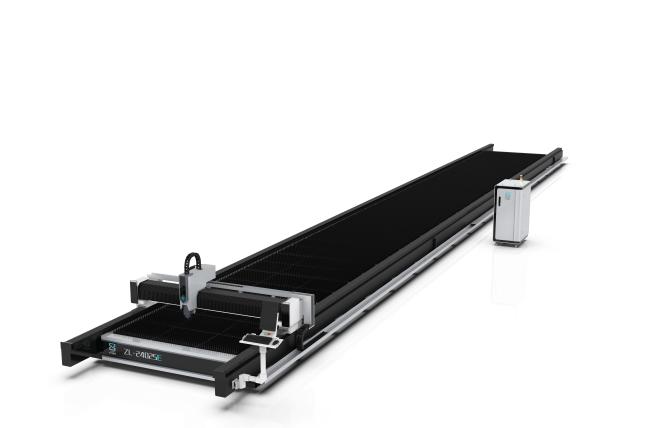

Sheet Metal Laser Cutter Ultra Large Format Fiber Laser Cutting Machine For Metal Sheet
ZLTECH ultra large format fiber laser sheet cutting machine for metal sheet.
|
Working Area(mm)
|
24000*2500mm
|
|
X-axis Travel
|
2500mm
|
|
Y-axis Travel
|
24000mm
|
|
Z-axis Travel
|
320mm
|
|
Laser Power
|
6kw~40kw
|
|
X/Y Axis positioning accuracy
|
±0.1mm/m
|
|
X/Y Axis repeated positioning accuracy
|
±0.03mm
|
|
Maximum Speed
|
80m/min
|
|
Maximum acceleration
|
0.8G
|
| Model | Split type |
Product details
Safety and Environmental Protection
The laser cutter is equipped with a safety light curtain as standard.When the distance between the operator and the beam is too close, the machine will quickly receive feedback and stop running immediately to ensure personal safety.
The laser cutter is equipped with a safety light curtain as standard.When the distance between the operator and the beam is too close, the machine will quickly receive feedback and stop running immediately to ensure personal safety.
Thick Plate Cutting, Improve Efficiency
The power can be selected from 6KW-36KW, the stable cutting thickness is more than 20mm, and the limit cutting thickness is more than 50mm.Optional ultra-large format, processing width up to 4000mm, length can be determined according to user processing requirements.
Thick Plate Cutting, Improve Efficiency

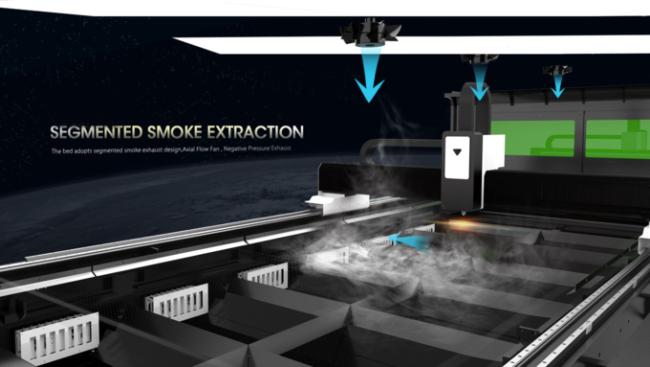

Dust removal design, 360°enclosed surround smoke exhaust. The powerful dust removal effect can not only ensure the environmental protection requirements and the health of the operators, but also protect the precision optical components in the cutting head from smoke and dust, and extend the service life.

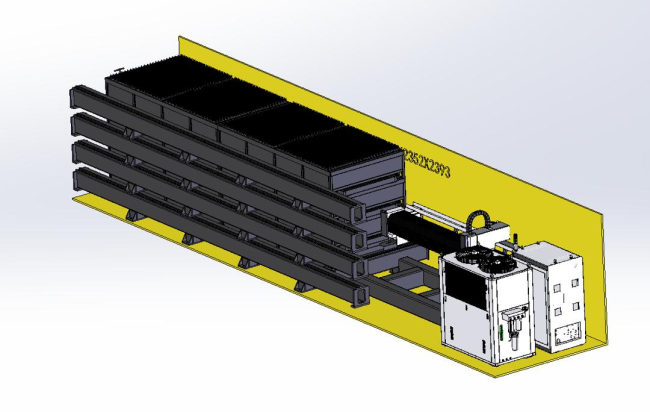

Packing design
Split design, easy to install, convenient to transfer and transport.
Products Overview
In-kind shooting details
Laser Source / China MAX Switzerland Raytools
MAX, as a leading developer and Raytools is currenly the most popular and used
manufacturer of high performance fiber laser, cutting head brand in the market
is stable and enery-saving, which is applied cause its high presion and cost performance.
in numerous markets.

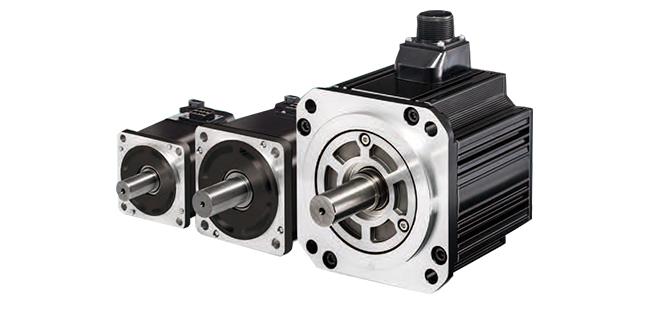

Servo Motor / Japan Fuji
Fuji servo motor can withstand high speed and high
acceleration, which decides the high stability of laser
cutting machine.
30mm Guide Rails / Taiwan Hiwin&Rack gear / Taiwan YYC
Hiwin high positioning accuracy Guide Rails makes the whole cutting machine works in a high presion situation.
YYC high presion Rack and Gear make sure the whole cutting machine works in a high presion situation.
Control System / China CypCut
Powerful functions, user-friendly design and easy operation make it currently the largest brand of CNC laser cutting machine systems in China.
Sample Display
Company Profile
FAQ
1.Are you a factory or a foreign trade company?
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service
2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
We have factory production machines and the price is very competitive.
We have after-sales technology to provide 24-hour service
2.If I know nothing about fiber laser cutting machine, which model should I choose?
Please tell us your materials, thickness, size and the cutting objects (plates, tubes, etc) then we will provide you professional suggestions.
3. If I do not know how to operate the fiber laser cutter, how you can help me?
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.
4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry
6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.
8.How to ensure the safety of the machine during transportation?
We have experienced and professional packaging team, according to the needs of customers to carry out special packaging, and we use a lot of soft materials in the inside of the packaging case to ensure the safety of the machine during transportation.
First, we have detailed user manual and videos for your learning. Second, our engineers will provide you technical support in time. If you want, we can provide you training in our factory or your door.
4.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
5.How about the price?Can you make it cheaper?
The price depends on your needs (function, size, quantity) We will quote you the best discount after receiving your inquiry
6.How about the payment?
T/T,30% deposit, and balance is after the production is finished.
Also we accept the PAYPAL, west union,etc.
7.What‘s your delivery time?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
8.How to ensure the safety of the machine during transportation?
We have experienced and professional packaging team, according to the needs of customers to carry out special packaging, and we use a lot of soft materials in the inside of the packaging case to ensure the safety of the machine during transportation.
