Ftth IP68 Outdoor Fiber Optic Terminal Box FTTH Box 16 Ports Caja NAP

FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience.

Features

• Water-proof design with IP-68 Protection level.

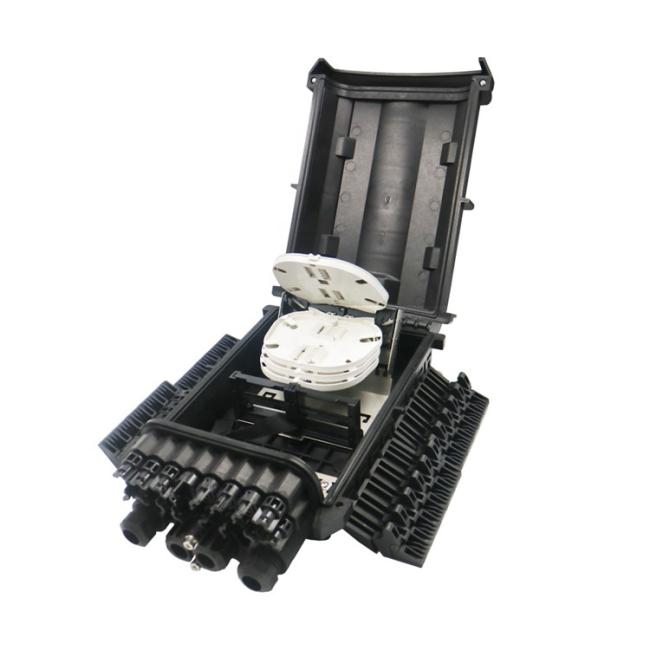

• Integrated with flap-up splice cassette and adaptor holder.

• Impact test:IKlO. Pull Force: lOON. Full rugged design

• All stainless metal plate and anti-rusting bolts,nut s.

• Fiber bend radius control more than 40mm.

• Suitable for the fusion splice or mechanical splice.

• 2 pcs of 1*8 Splitter can be installed as an option.

• Mechanical sealing structure and mid-span cable entry.

• 24 ports cable entrance for drop cable.

• 24 adaptors for drop cablepatching

Configuration

Applications:

• Wall mounting and pole mounting installtion

• FTTH pre-installation and filed installation

• 4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable

Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clam p, cable tube, wreach, cover holder, rubber seal for cable entrance.

Optional Accessories

Pole ring
