96 Core Dome Type 4 Port Fiber Optic Splice Closure Ip68 Fiber Enclosure Outdoor
96 Core Dome Type 4 Port Fiber Optic Splice Closure Ip68 Fiber Enclosure Outdoor
Product Description

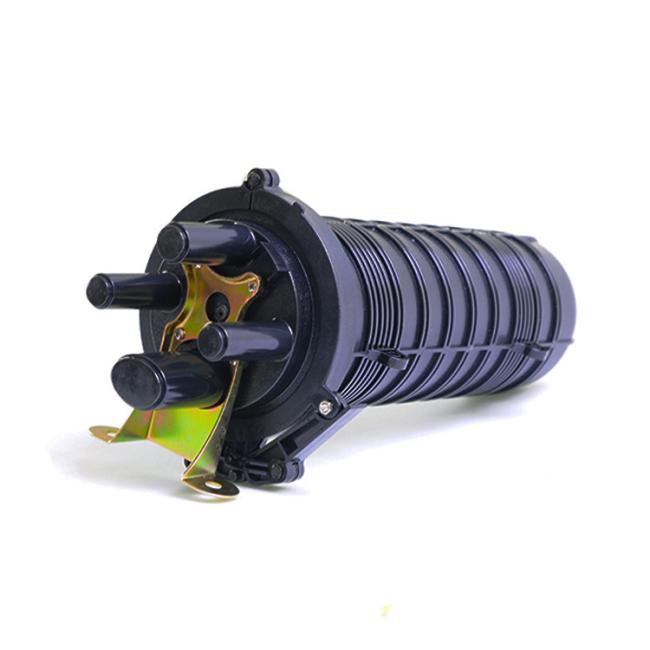

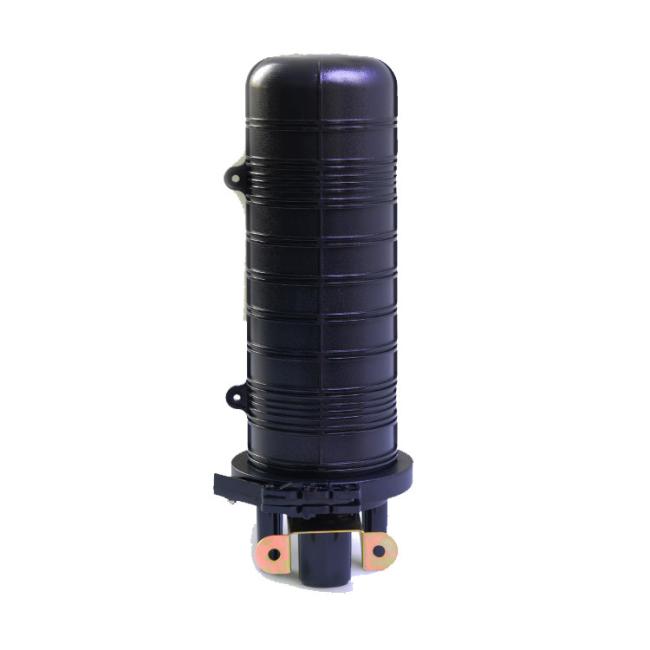

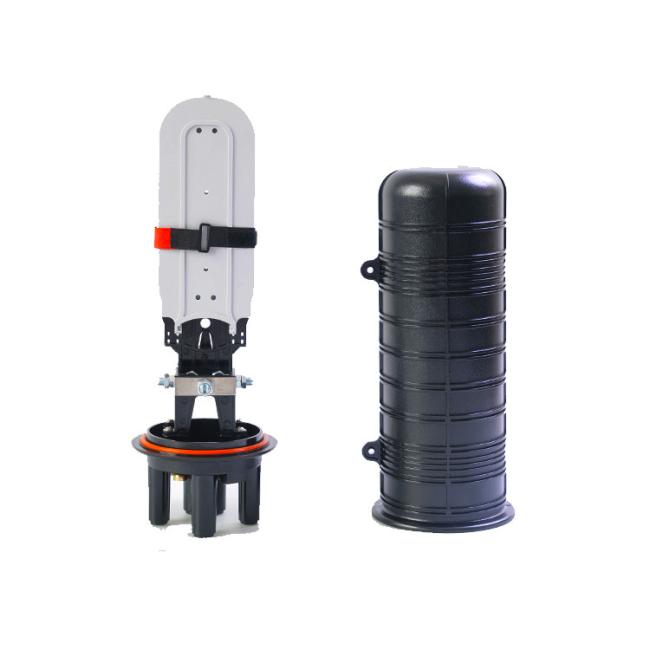

GJS-D001 DOME Type fiber optic splice closure is also called asvertical closure, it is suitable for FTTH accessing. Theinput and output are on the same side. An oval hole andhree round holes facilitates the operation. It is suitablefor aerial, underground, conduct installation.
Features
1. Heat shrinkable sealing structure
2. High quality industrial plastic body material .
3. One oval hole and three round holes for cable entrance
4. Suitable for cable diameter 5mm-25mm
5. Support aerial , underground , pipeline , man holes , hand holes
6. Protection level reaches IP68
7. 360 degrees access , fiber bending > 40mm
8. Maximum capacity : 96F single or 144F ribbon

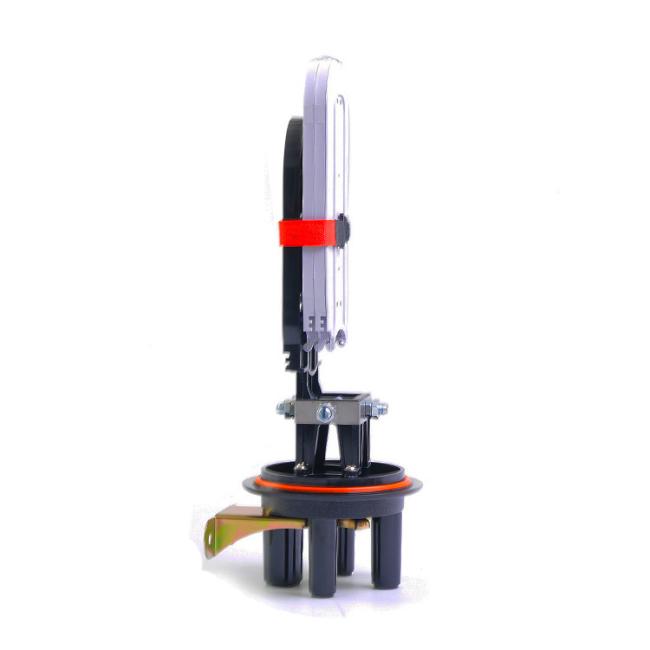

9. Number of trays : 4 pcs x 24F .
Application
1. Direct buried installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access layer
| Product Name | 96 Fiber Dome Splice Closure |
| Dimension(mm) | 440*190mm |
| Mount Type | Dome Type |
| Max capacity | 96 Cores |
| Material | PC |
| Operating Temperare: | -40℃ to +85 ℃ |
| Atmospheric pressure: | 70-106Kpa |
| Tensile Strength | >2000N |
| Weight | 3KG |
| Color | Black |
