8 Fibers Sc/Apc Fiber Optic Din Rail Terminal Box Grey Cold Rolled Steel
8 Fibers SC/APC Fiber Optic DIN Rail Terminal Box Grey Cold Rolled Steel

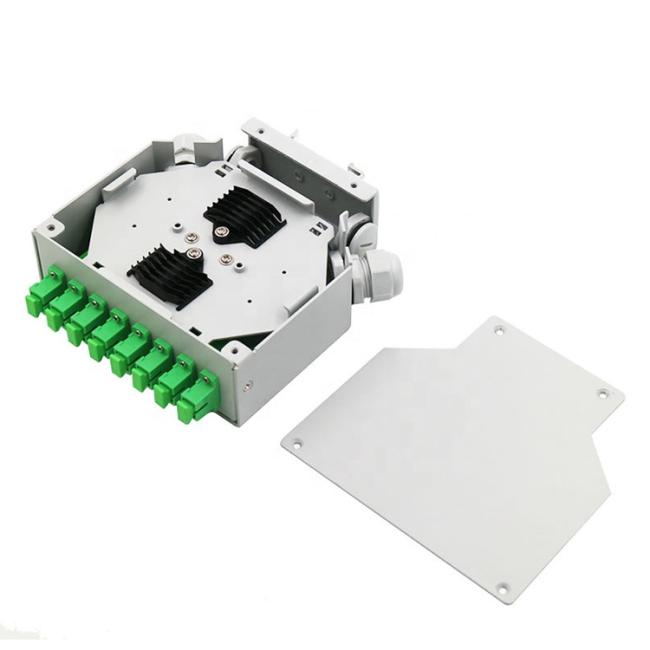

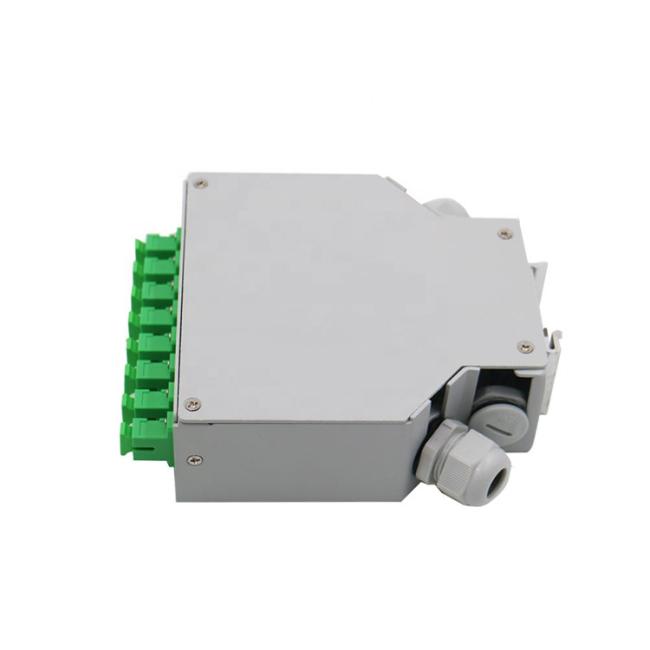

Fiber Optic DIN Rail Terminal Box with 8 sc simplex adapter is metal box special designed to be snapped on din rail ,DIN RAIL fiber box accepts one modular panel making it ideal for smaller fibre count applications of up to 8 fibers.This compact enclosure makes it possible to direct terminations or fusion splices in much smaller protected areas.
Features:

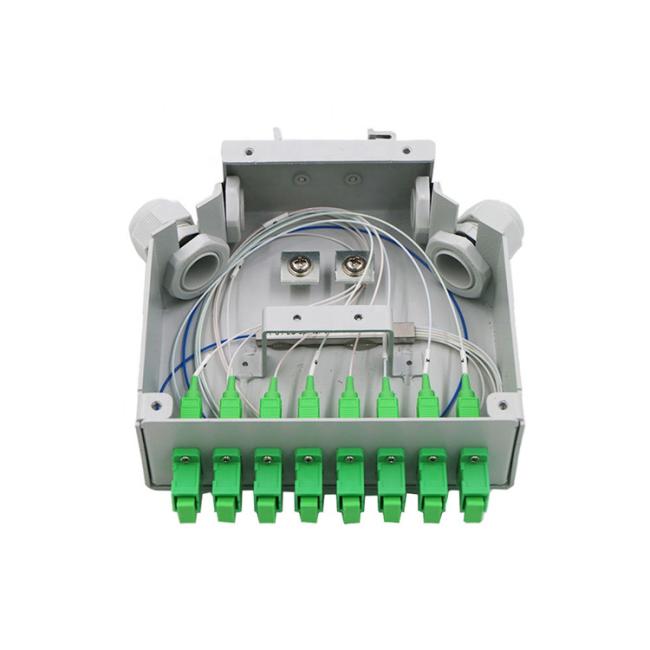

● Integrated splice holders (fusion splices)
● 2pcs cable entry/exit ports; 8pcs pigtail entry/exit ports
● IP20 protection
● Rear or aside DIN rail fixation
● 2x rear entries (PG 11 cable gland)
● Grey color
Specification:
| Dimension | Material | Adapter port | Splicing capacity | Cable port | Application |
| 129*130*40mm | Cold-Roll Steel | 8 SC Simplex | Max. 8 fibers | 4 ports | DIN rail mounted |
Accessories:
| Item | Name | Specification | Unit | Qty |
| 1 | Heat shrinkable protection sleeves | 45*2.6*1.2mm | pcs | As per using capacity |
| 2 | Cable tie | 3*120mm white | pcs | 2 |
Application:
Suitable for Pigtail, ribbon and bunch cable connect distribution Used for wall-mounted applications.
Used in FTTH, Telecommunications, CATV etc.
