6Port Fiber Optic Terminal Box SC APC/UPC SM SX PC+ABS Light Grey For Telecom
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
3-8 work days
Brand:
Twilight Optic
Product Description
6Port Fiber Optic Terminal Box SC APC/UPC SM SX PC+ABS Light Grey For Telecom
Description
FAT-6A fiber access termination box is able to hold up to 6 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 6Port Fiber Optic Terminal Distribution Enclosure |
| Use | FTTH FTTX Solutions |
| Connecting Adapter | SC/LC/FC/ST |
| Fiber type | SM/MM(OM1/OM2/OM3/OM4) |
| Insertion loss | <0.2dB |
| Operating Temperature: | -40-+75℃ |
| Size | 186*116*41MM |
| Material | PC+ABS |
| Color | Light Grey |
| Weight | 0.8KG |
Features
♦ Water-proof design with IP-66 Protection level.
♦ Integrated with splice cassette and cable management rods.
♦ Manage fibers in a reasonable fiber radius condition.
♦ Easy to maintain and extend the capacity.
♦ Fiber bend radius control more than 40mm.
♦ Suitable for the fusion splice or mechanical splice.
♦ 1*4 Splitter can be installed as an option.
♦ Efficient cable management.
♦ 6 ports cable entrance for drop cable.
Application
♦ Local Area Network
♦ CATV Network
♦ FTTX System
♦ Wide Area Network
♦ Data commnication
♦ Network

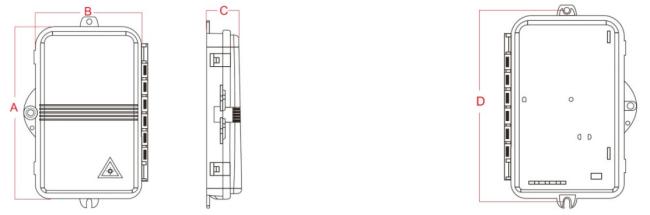

Configuration
| Material |
Size
|
Max Capacity
|
Installation size |
Weight |
Color
|
||
| PC+ABS |
A*B*C(MM) 186*116*41
|
SC
6 Ports
|
LC
12 Ports
|
PLC
1x4(SC)
|
D(MM)
195
|
0.8kg
|
Light Gray
|
Details Picture
