8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
3-8 work days
Brand:
Twilight Optic
Product Description
8Port Fiber Optic Terminal Box IP-66 Protection Level SM SC Wall Pole Mount
Description
FAT-8A fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 8Port Fibre Optique Distribution Enclosure |
| Use | FTTX Solutions |
| Mount Type | Wall or Pole Mount |
| Fiber type | SM or MM (OM1, OM2, OM3, OM4) |
| Protection Level | IP-66 |
| Connecting Adapter | SC, LC, ST, FC |
| Insertion loss | <0.2dB |
| Operating Temperature | -40-+75℃ |
| Size | 213*163*47MM |
| Weight | 0.8KG |
Features
• Water-proof design with IP-66 Protection level.
• Integrated with splice cassette and cable management rods.
• Manage fibers in a reasonable fiber radius condition.
• Easy to maintain and extend the capacity.
• Fiber bend radius control more than 40mm.
• Suitable for the fusion splice or mechanical splice.
• Efficient cable management.
• 8 ports cable entrance for drop cable.
Configuration
| Material | Size | Max Capacity | Weight | Color |
| PC+ABS |
A*B*C(mm)
213*163*47
|
SC
8 Ports
|
0.8kg
|
White |

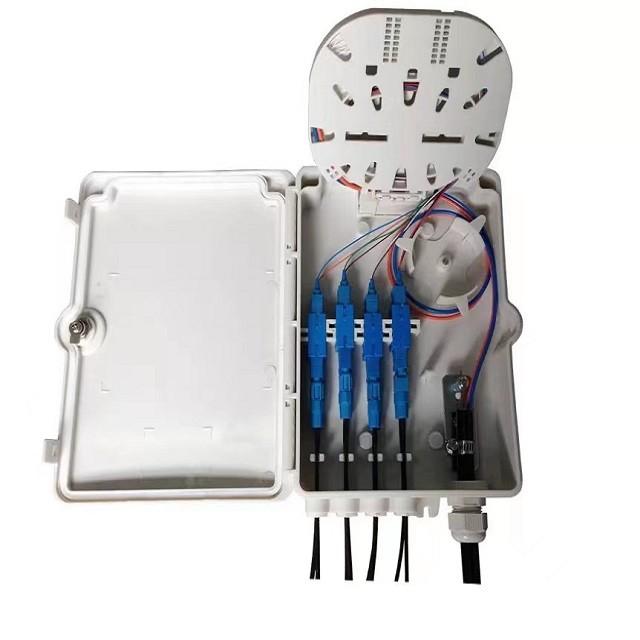

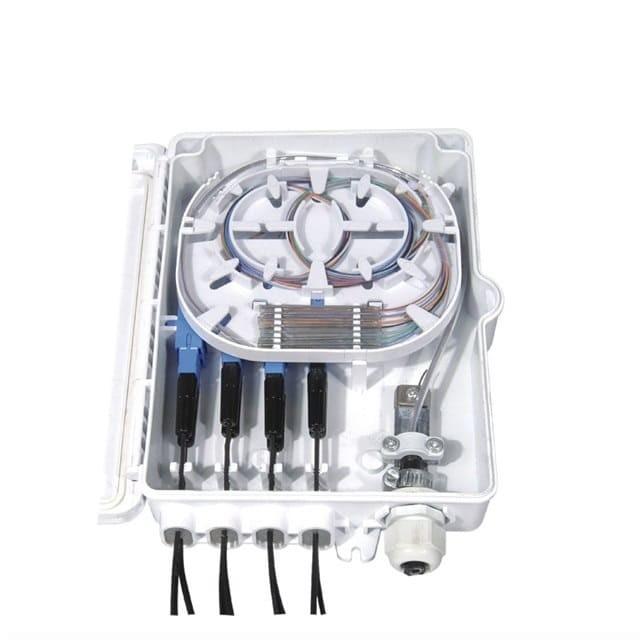

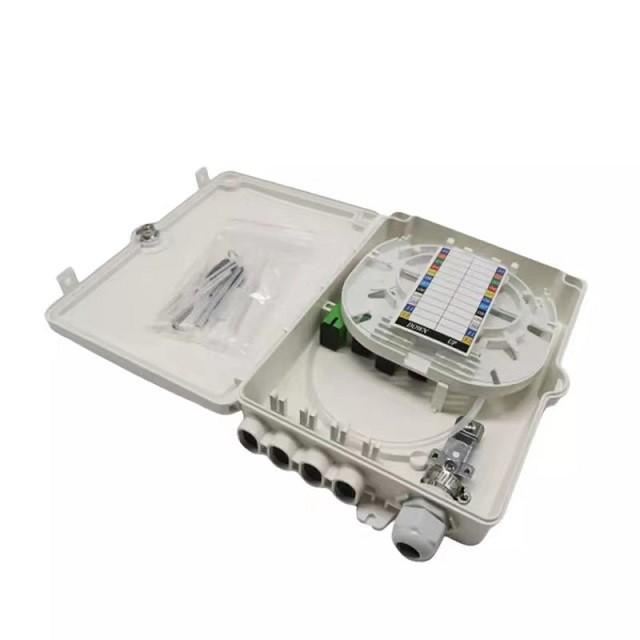

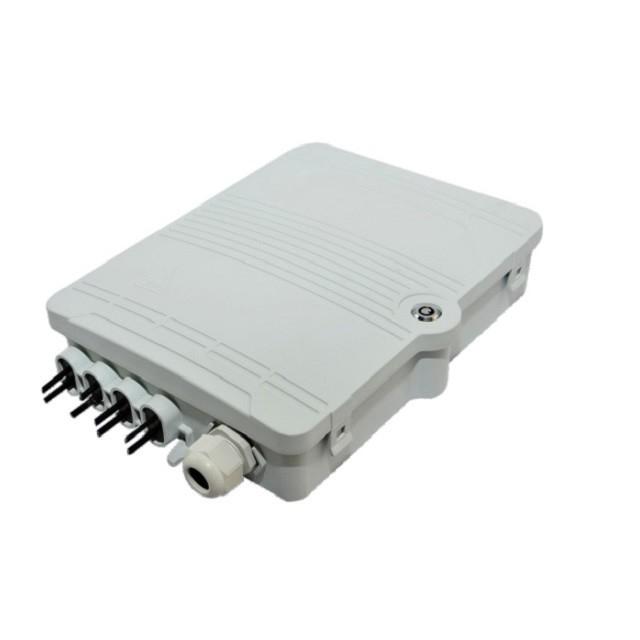

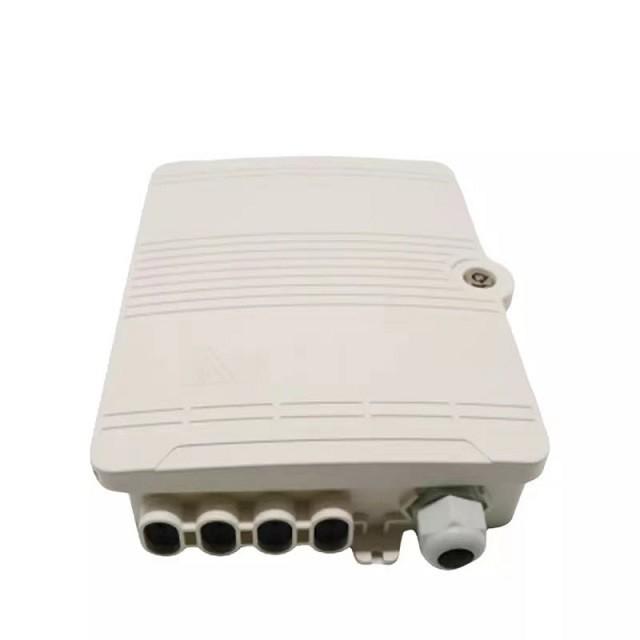

Details Picture
