Fiber Optic Terminal Box 8Port Indoor Outdoor SC APC/UPC SM Simplex
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
3-8 work days
Brand:
Twilight Optic
Product Description
Fiber Optic Terminal Box 8Port Indoor Outdoor SC APC/UPC SM Simplex
Description
FAT-8B fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | Fiber Optic Termination Distribution Enclosure 8Port |
| Application | FTTH Solutions |
| Application type | Indoor Outdoor |
| Mount Type | Wall Mount/Pole Mount |
| Adapter Type | SC, LC, CST, FC |
| Ferrule End-face | APC/UPC |
| Fiber Type | SM, MM, OM1, OM2, OM3, OM4 |
| Color | White/Black |
| Material | PC+ABS |
| Max Capacity | 8Port (SC), 16Port (LC), 1X8PLC (SC) |
Features
♦ Water-proof design with IP-66 Protection level.
♦ Integrated with splice cassette and cable management rods.
♦ Manage fibers in a reasonable fiber radius condition.
♦ Easy to maintain and extend the capacity.
♦ Fiber bend radius control more than 40mm.
♦ Suitable for the fusion splice or mechanical splice.
♦ 1*8 Splitter can be installed as an option.
♦ Efficient cable management.
♦ 8 ports cable entrance for drop cable.
Configuration
|
Material
|
Size
|
Max Capacity
|
Weight
|
Color
|
||
| PC+ABS | 227*181*54.5 |
SC
8 Ports
|
LC
16 Ports
|
PLC
1x8(SC)
|
0.6KG | White |

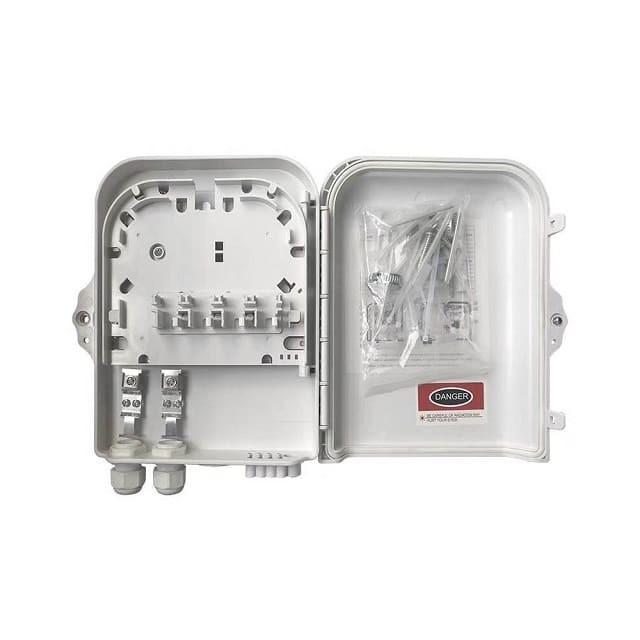

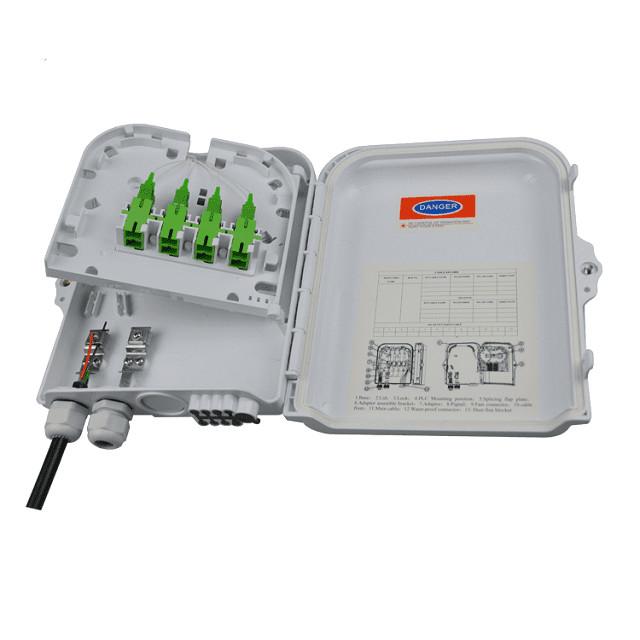

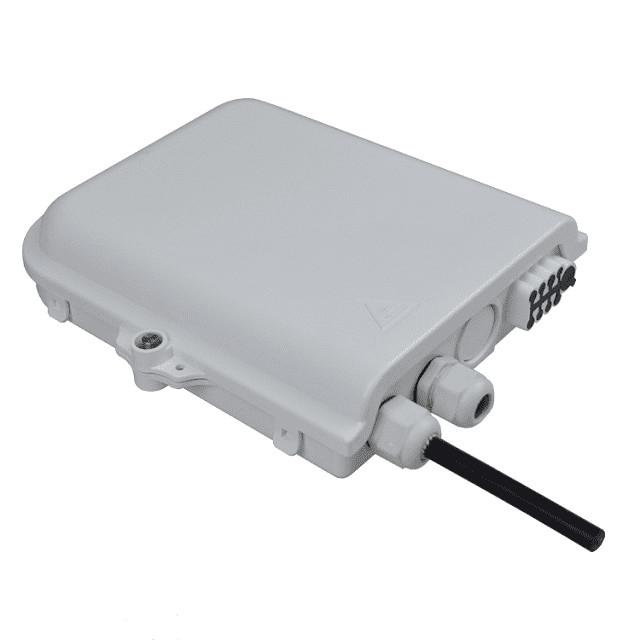

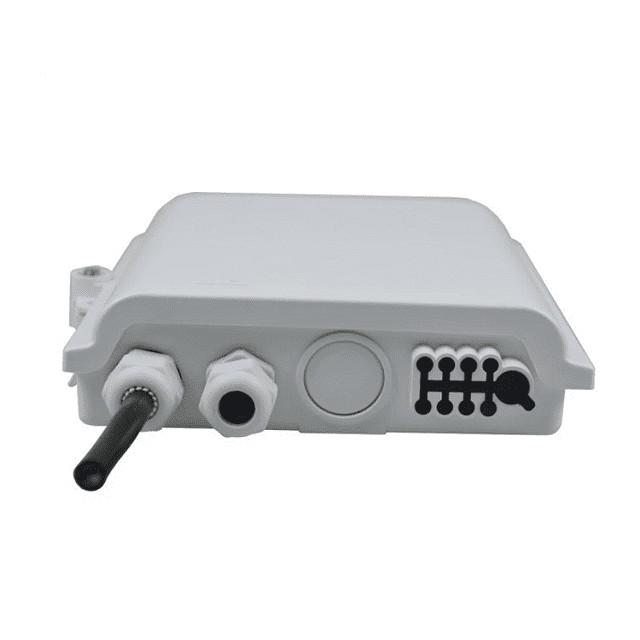

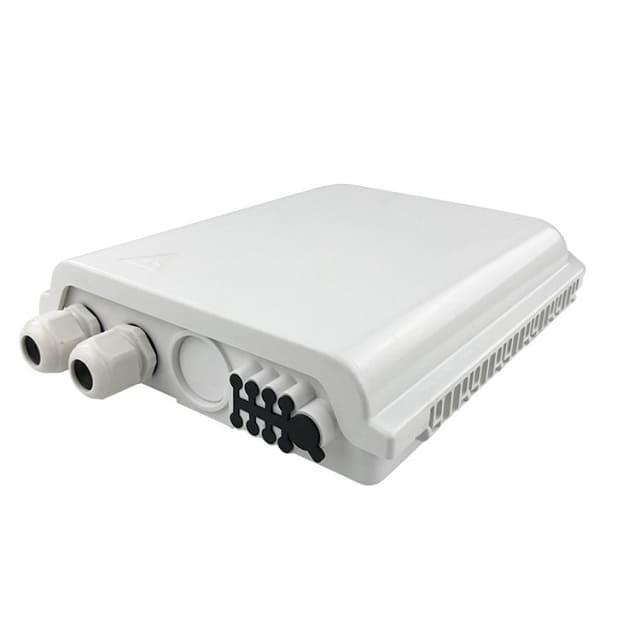

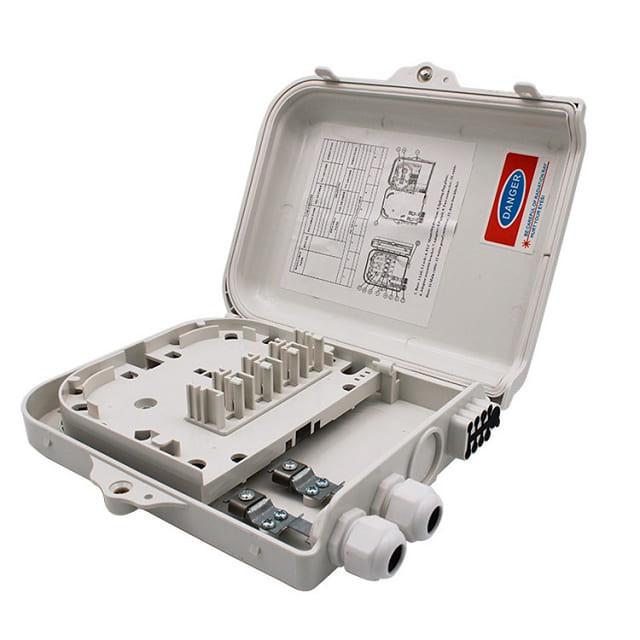

Details Picture

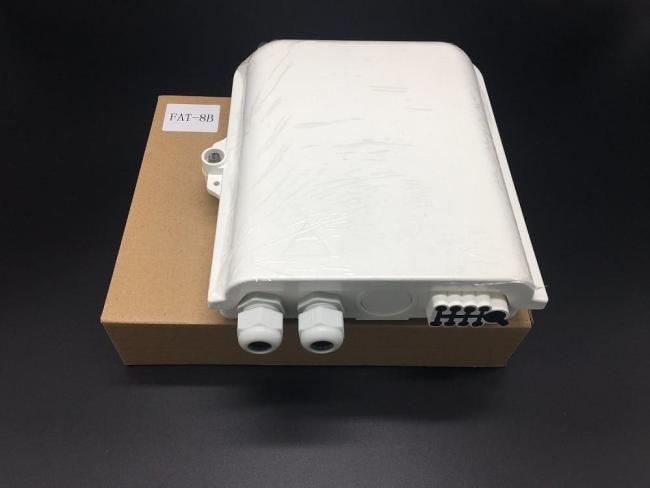

Packaging Details
