Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
3-8 work days
Brand:
Twilight Optic
Product Description
Fiber Optic Terminal Box 12Port SC/LC/ST/FC IP-66 UPC/APC Light Gray FTTH
Description
FAT-12A fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 12/24Cores Fiber Optic Distribution Terminal Enclosure |
| Application | FTTX FTTH |
| Material | PC ABS |
| Color | Light Gray |
| Network | 4g, Wired LAN, Wireless Lan |
| Waterproof | IP-66 Protection level |
| Suitable Adapter | SC/LC/ST/FC |
| Ferrule End-face | PC, UPC/APC |
| Demention | 225*200*65MM |
| Weight | 0.85KG |
Features
► Water-proof design with IP-66 Protection level.
► Integrated with splice cassette and cable management rods.
► Manage fibers in a reasonable fiber radius condition.
► Easy to maintain and extend the capacity.
► Fiber bend radius control more than 40mm.
► Suitable for the fusion splice or mechanical splice.
► 1*8 Splitter can be installed as an option.
► Efficient cable management.
► 12 ports cable entrance for drop cable.
Configuration
|
Material
|
Size
|
Max Capacity
|
Installation size
|
Weight
|
Color
|
||
| PC+ABS |
A*B*C(mm)
225*200*65
|
SC
12 Ports
|
LC
24 Ports
|
PLC
1x8(SC)
|
D*E(mm)
168*210
|
0.85kg
|
Light Gray
|

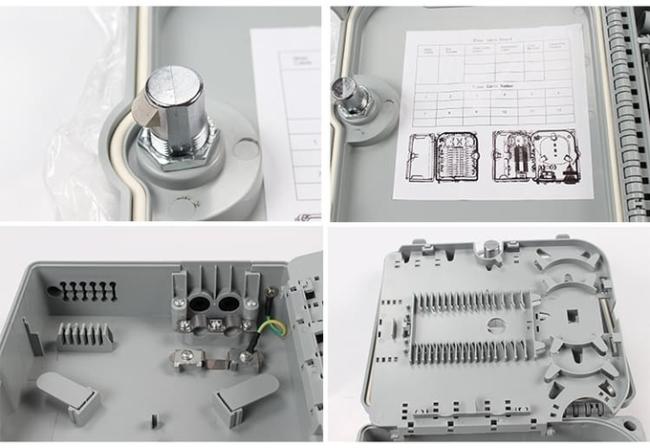

Details Picture
► Pole-Mounted can also be made as an option

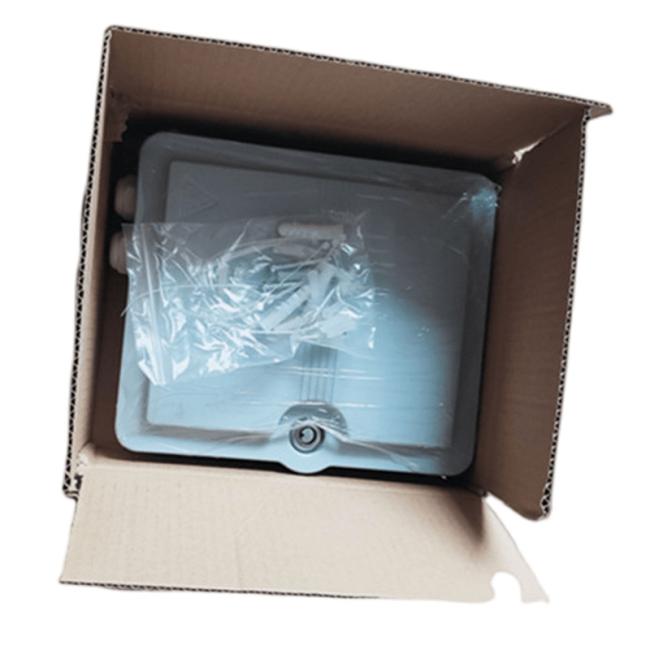

Packaging Details
