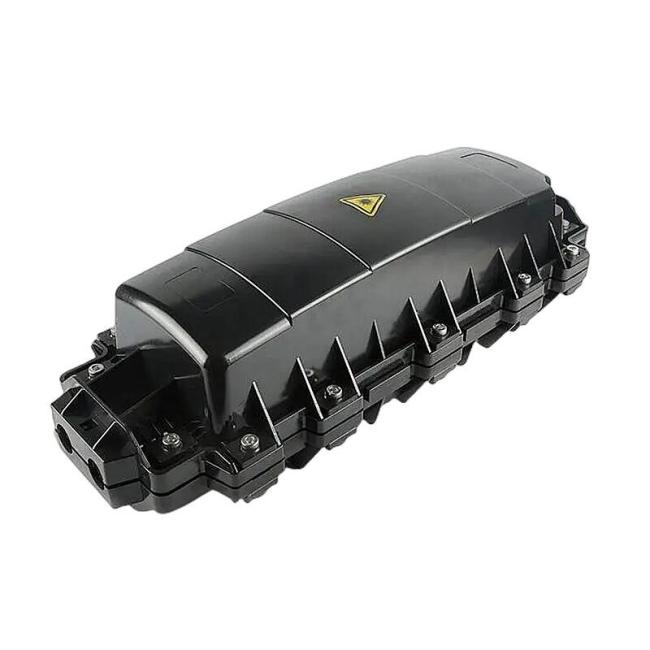

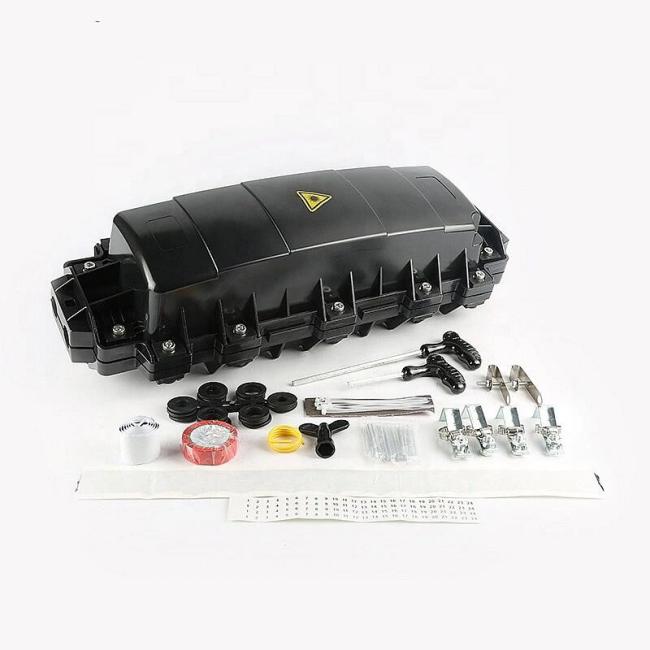

Underground 288Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure
Underground 288 Cores Fiber Optic Closure 2in 2out Horizontal Aerial Joint Enclosure
Product Description
GJS-H016 The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple.
Features
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed

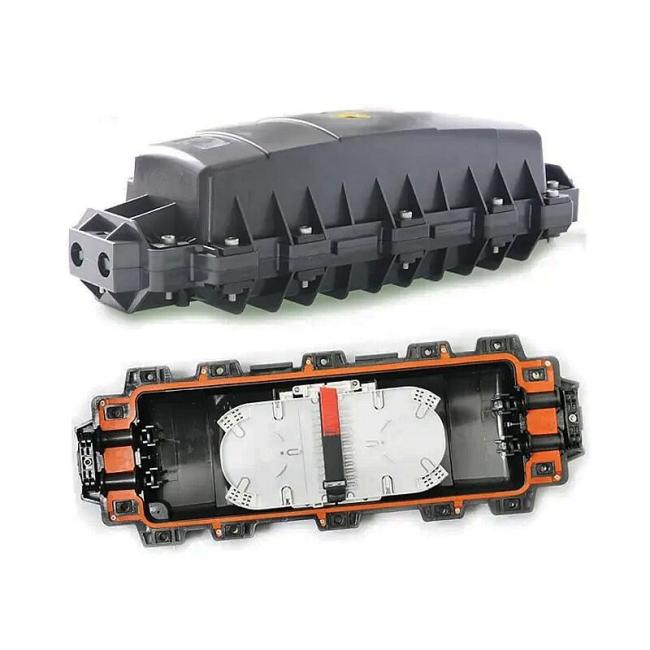

6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Application
1. Direct buried
2. Pole mounted
3. Wall mounted
Specification
| Model | GJS-H016 |
| Type | Inline type |
| Number of Inlet/Outlet ports | 4 ports |
| Cable Diameter | 4 ports×23mm |
| Maximum Capacity | Bunchy: 288 fibers; Ribbon: 864 fibers |

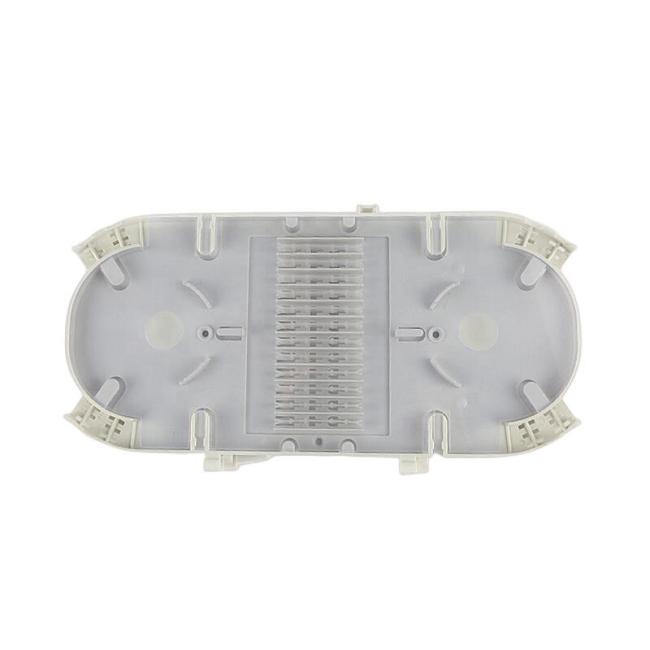

| Capacity per Splice Tray | Bunchy: single layer: 24 fibers; dual layers: 48 fibers; Ribbon: 6pcs |
| Quantity of Splice Tray | 6pcs |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| Dimension | 605(L)×215(W)×175(H)mm |
| Net Weight | 3.0~4.6KG |
| Temperature | -40℃~65℃ |
