12 Port LC Quad Adapter 48Core Fiber Optic DIN Rail Terminal Box
12 Port LC Quad Adapter 48Core Fiber Optic DIN Rail Terminal Box

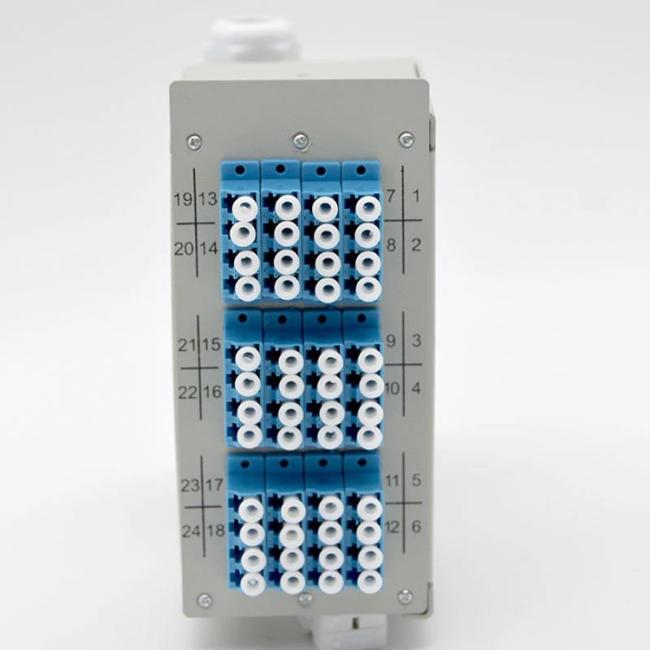

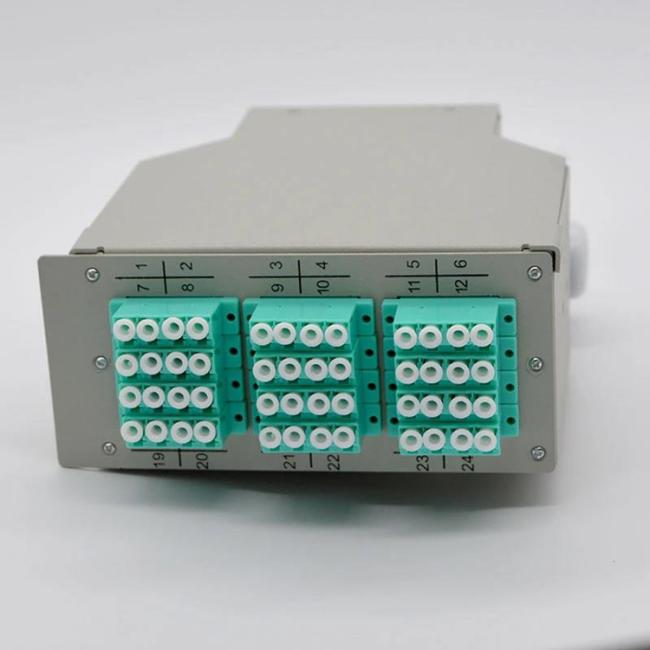

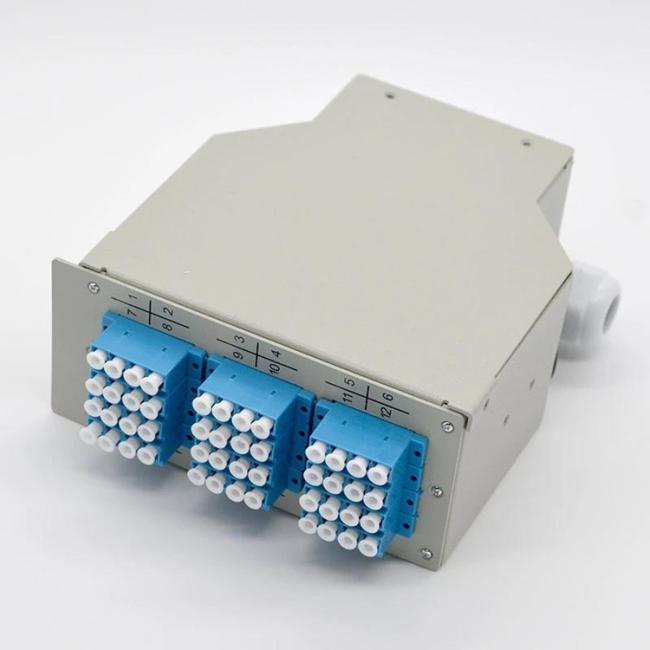

DIN-Rail type Termination Box comes with 12xLC Quad adapter holes. This splicing equipment is suitable for distribution and termination of various kinds of optical fiber cables, especially for mini networks in which the optical cables, patch cords, adaptors and pigtails are connected.
Quick infomation:
| Name | Din rail (type) fiber optic splice terminal box. |
| Model | TW-DRB05-12LCQD |
| Cable port | 2 cable ports |
| Suitable cable diameter | 8~24mm |
| Adapter ports | 12 adapter ports |
| Suitable adapter type | LC quad adapter ( Single mode, Multimode, OM3, OM4 ) |
| Splice capacity | 48core |
| Size | 131.5x131.7x 52.6 mm |
| Weight | About 0.8kg |
Features
Cold-roll steel, electrostatic painting
Suitable for SC Duplex and LC Quad adapters
2 pcs of cable entry/exit points.
Splicing casette inside with capacity of 24 fibers,up to 48 fibers.
Application:
- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV etc.
