IP65 Fiber Optic Cabinet Outdoor FAT Fiber Distribution Hub FDH

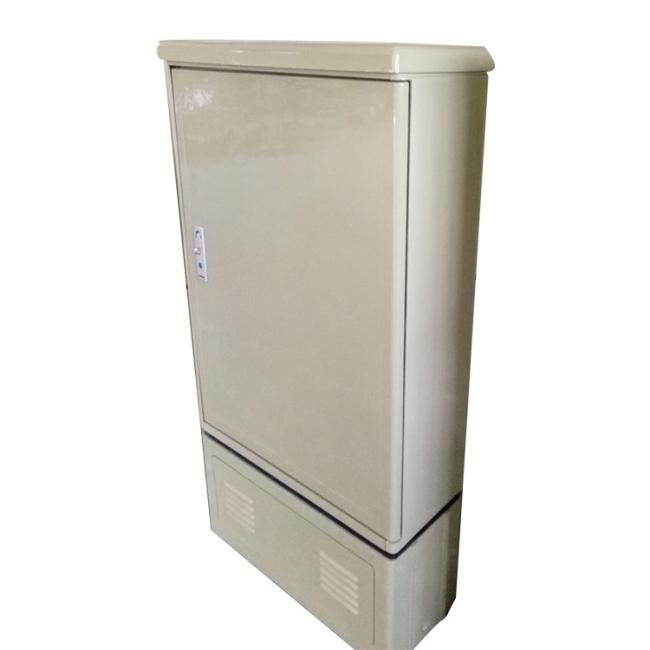

Fiber Distribution Hub FDH Outdoor Fiber Optic Cabinet 288Core Fiber Access Terminal FAT
1. Specification
|
Parameters |
|
|
Model |
TW-CBSMC-288A |
|
Max. No. of Cores |
288F SC, Or 576F LC |
|
Splitter Type |
ABS type |
|
Max. No. of Splitters |
10 |
|
Splice Tray Type |
12 cores/tray or 24 cores |
|
Max. No. of Splice Tray |
24 or 24 |
|
Cabinet Material |
SMC |
|
Adapter Panel |
FC square, SC, DLC (SC type) |
|
Insulation Resistance (MΩ) |
1000 @500V (DC) |
|
Withstanding Voltage (V/min) |
3000 (DC), no breakdown, no flashover |
|
Installation Type |
Ground |
|
Protection Rating |
IP65 |
|
Operating Temperature (°C) |
-40~ +60 |
|
Dimensions (mm) |
1450*750*320MM |
|
Weight (kg) |
80 |
Features:
1. High intensity and anti-erosion performance；
2. Able to counter abrupt climate change and extreme environment；
3. Capacity can be flexibly customized as required；
4. Installation is quick and convenient；
5. Built-in direct splice unit is capable for providing direct connection function；
6. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers；
7. With secure and reliable fastening and grounding protection devices for the optic fiber；
8. Applicable to strap-shaped and non-strap shaped fibers.
9. Large capacity: the maximum distribution capacity is 96-cores, 144-cores, 288-cores, and 576-cores four types of optical fiber cables, and the capacity of direct welding is single, 120-cores -240-cores, and 240-cores -480-cores ribbon optical fiber cables.
10. The cabinet adopts special high-strength corrosion-resistant materials, has good waterproof, anti-condensing, moisture resistance properties, and can stand various adverse effects caused by climate and environment.
11. The cabinet is equipped with horizontal wiring duct, and makes the optical cable layout more reasonable and tidy.
12. Adopts the terminal tray integrating welding and distributing. Welding and distributing are performed at the same level, which makes the operation convenient, reduces the length of ribbon tail fiber and lowers the cost.
13. The terminal module adopts the horizontal draw-out structure with 12 cores as a unit, each core can be drawn out separately, which makes it convenient to operate in distributing, and reduces the number of bends arising from the distributing of tail fiber.
14. The optical fiber splitter is structurally reasonable, the optical fiber cable core is sheathed with sleeve, and the fixing, grounding and other operation on optical fiber cable can be performed, without removing the optical fiber splitter.
Applications:
1. Local Area Network；
2. CATV Network；
3. FTTx System/ FTTH Project；
4. Wide Area Network.

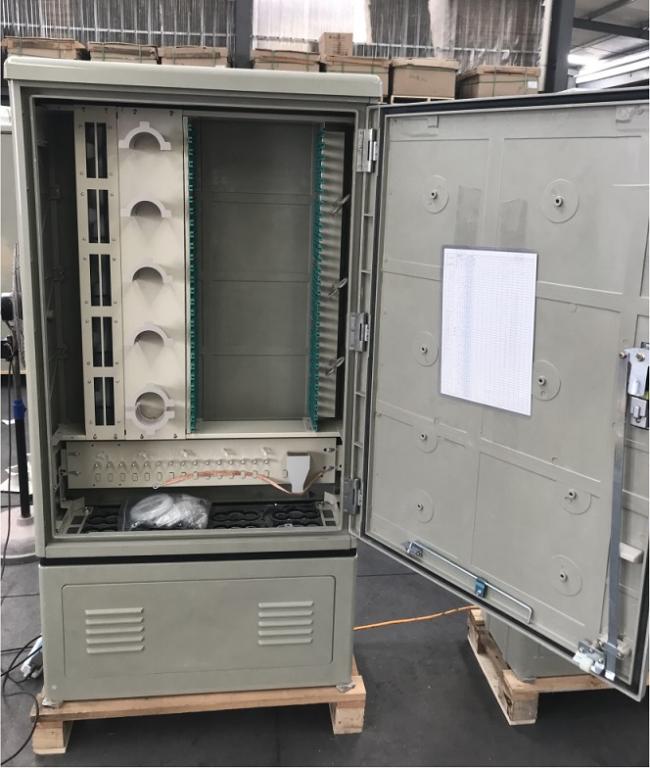

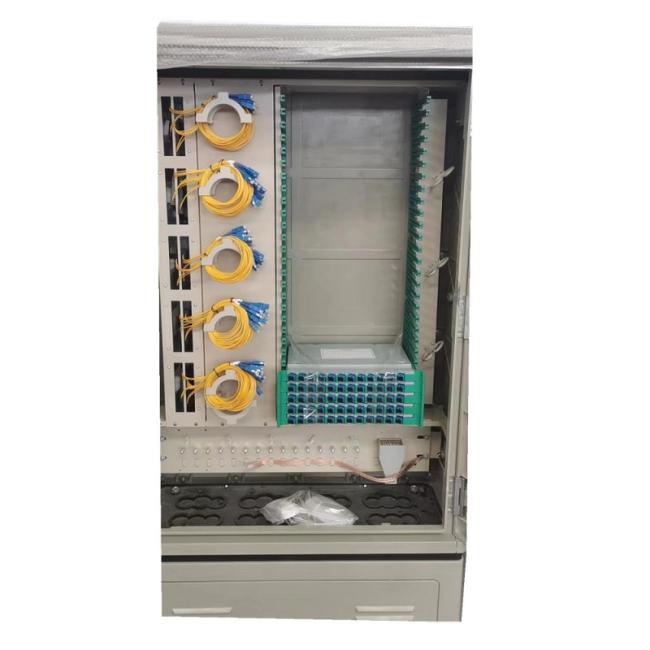

More photos for reference:
