12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
3-8 work days
Brand:
Twilight Optic
Product Description
12Cores Fiber Optic Terminal Box SC/LC/FC/ST Simplex/Duplex Indoor/Outdoor
Description

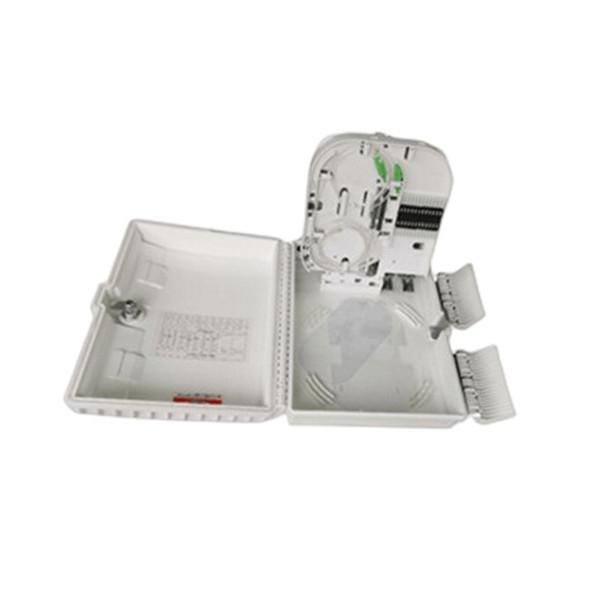

FAT-12C fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 12/24Ports Fibra Optica Termination Enclosure |
| Use | FTTH FTTX FTTB Solutions |
| Application Type | Indoor/Outdoor |
| Mounting Type | Wall-mounte/Pole-mounted |
| Material | PC+ABS |
| Color | Light Gray |
| Adaper Type | SC/LC/FC/ST |
| Fiber Type | SM/MM |
| Max Capacity | 12Cores (SC), 24Cores (LC), 1X8PLC (SC) |
| Adapter Mode | Simplex/Duplex |
| Size |
250*200*72mm
|
| Weight | 1.0kg |
| Working temperature | -40℃ - +85℃ |
| Atmospheric pressure | 70KPa - 106Kpa |
Features
♦ Water-proof design with IP-66 Protection level.
♦ Integrated with splice cassette and cable management rods.
♦ Manage fibers in a reasonable fiber radius condition.
♦ Easy to maintain and extend the capacity.
♦ Fiber bend radius control more than 40mm.
♦ Suitable for the fusion splice or mechanical splice.
♦ 1 pcs of 1*12 Splitter can be installed as an option.
♦ Efficient cable management.
♦ 12 ports cable entrance for drop cable.
Configuration
| Material | Size | Max Capacity | Weight | Color | ||
| PC+ABS |
250*200*72MM
|
SC 12Cores |
LC 24Cores |
PLC 1*8 (SC) |
1.0kg | Light Gray |
Details Picture
