16Port Fiber Optic Terminal Box SC/LC/ST/FC LGX PLC SM/MM Wall-Mount
Price:
Negotiate
MOQ:
Negotiate
Delivery Time:
3-8 work days
Brand:
Twilight Optic
Product Description
16Port Fiber Optic Terminal Box SC/LC/ST/FC LGX PLC SM/MM Wall-Mount
Description
FAT-16A fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 16Ports Wall/Pole Mount Fiber Optic Distribution Enclosure |
| Application | FTTH FTTX FTTB |
| Material | PC+ABS |
| Color | Black/White |
| Suitable Adapter | SC/LC/ST/FC |
| Ferrule End-face | PC, UPC/APC |
| Mount Type | Wall-Mount/Pole-Mount |
| Dimension | 295mm*220mm*85mm |
| Fiber Type | SM/MM |
| Adapter Mode | SM/DX |
| Weight | 1.57kg |
| Max Capacity | SC 16Port, LGX PLC 1*16 |
Features
♦ Water-proof design with IP-66 Protection level.
♦ Integrated with splice cassette and cable management rods.
♦ Manage fibers in a reasonable fiber radius condition.
♦ Easy to maintain and extend the capacity.
♦ Fiber bend radius control more than 40mm.
♦ Suitable for the fusion splice or mechanical splice.
♦ 2 pcs of 1*8 Splitter can be installed as an option.
♦ Efficient cable management.
♦ 16 ports cable entrance for drop cable.
♦ White color can be made as an option
Configuration
| Material | Size | Max Capacity | Weight | Color | |
| PC+ABS |
295*220*85MM
|
SC 16 Port |
PLC 1*16 (SC) |
1.57kg | Black/White |
Packaging Details

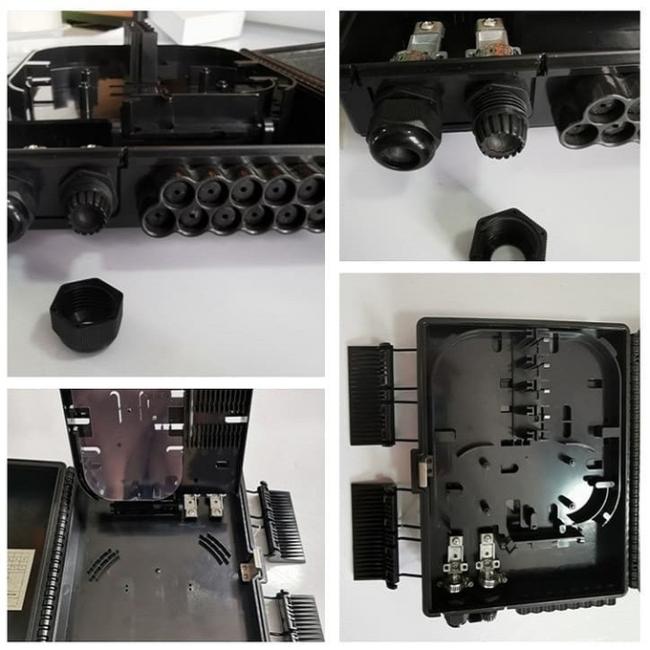

Details Picture








Color
► White color can also be made as an option



/
