1U MTP MPO Fiber Patch Panel 19 Inch Frame Rack Cabinet 96 Cores Splicing

Price Negotiable

Price: Can be disscussed

MOQ: 20

Delivery Time: 15-20 working days

Brand: Twilight Optic or OEM

Product Description

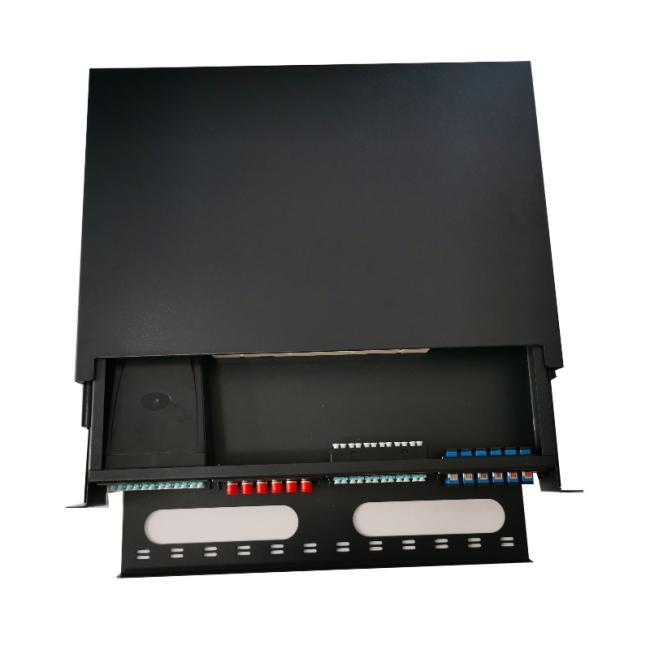

1U Drawing Type MTP MPO Patch Panels 19 Inch Frame Rack Cabinet 96 Cores Splicing

Description:

1U drawing type Patch Panel is used in data center cabling region, and connected the ports with cable to the back of the panel. it is usually assembled in 19 inch frame rack and cabinet.

Can assemble with LC adapter panel. and it can finish 1U 96 cores splicing.

Specification:

Parameters
Model	TW-1U4MDA03
Max. No. of Cores	96 Cors LC
Main Body Thick	1.2mm
Max of Splice Tray	4pcs
Splice Tray Type	24 Fibers
Color of Splice Tray	Black or White
Material	Cold rolled steel sheet
Adapter Panel	LC,ST,FC,SC
Cassete type	MPO
Withstanding Voltage (V/min)	3000 (DC), no breakdown, no flashover
Installation Type	Rack Mount
Color	Black
Operating Temperature (°C)	-40~ +60
Dimensions (mm)	430362.444mm
Weight (kg)	4kg

Technical Features:

◆ Drawing type design, with 3 flexible guide rail, operate more fluently and flexibly;

◆ Can install 4 pcs adapter panel, and manage 96cores max;

◆ Usually assembled with 2 layers fusion splice plates with ears, and can splice 48 cores accordingly. If for splicing 96 cores, we can provide 4pcs thin fusion splice plates;accordingly.

If for splicing 96 cores, we can provide 4pcs thin fusion splice plates;

◆ Produced with high-quality cold-rolled steel sheet, the main body's depth is 1.2mm;

◆ With cable management plate, more cabling ways.
