Outdoor Aerial 288 core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
10-15 work days
Brand:
Twilight Optic
Product Description

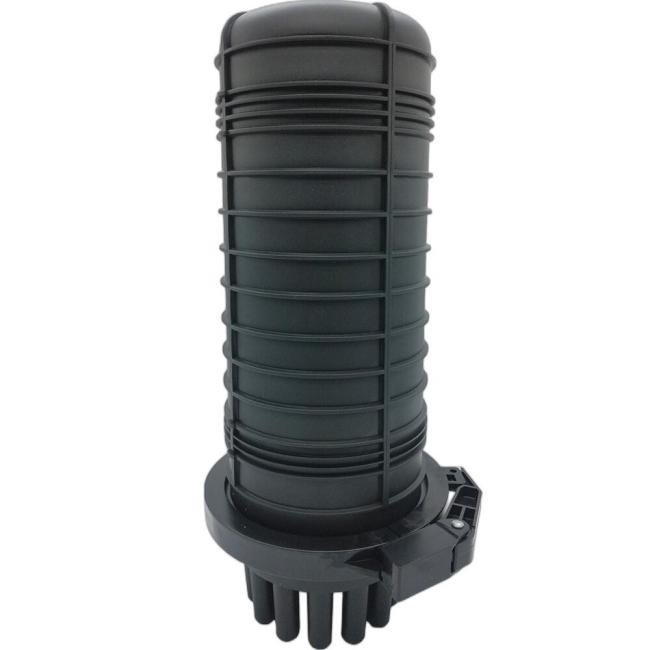

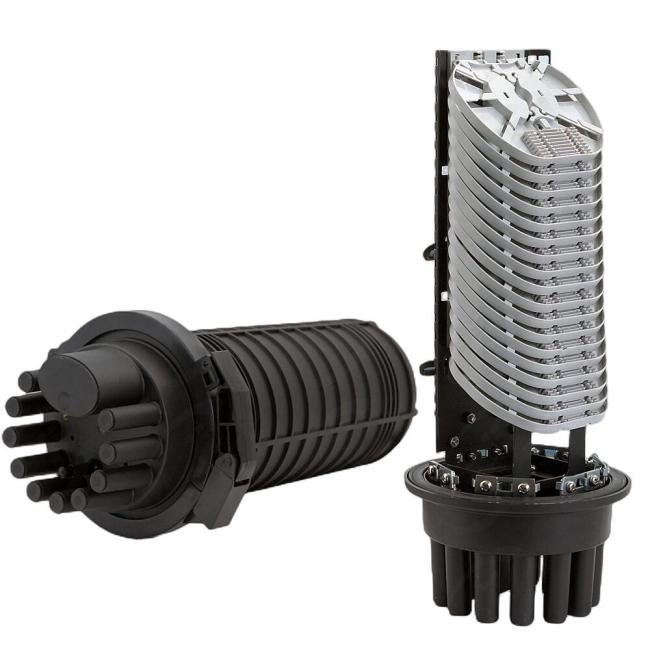

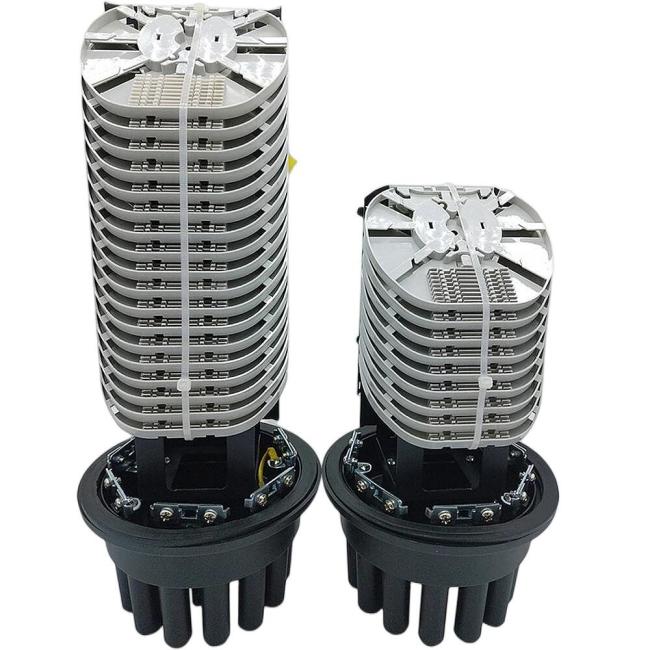

Outdoor Aerial 144 288core Fiber Optic Joint Enclosure 6in 6out Dome Splice Closure
Product Description
M11-RS dome closure used for direct connection during optical fiber transmission process, and provides joint connection protection, it can be used for overhead, pole, wall and buried installations..
Features
1. Material is ABS, water-proof, dust-proof, anti-aging, protection level up to IP68
2. Compact size, max 24fibers with one splice tray
3. Efficient cable management with 2 fiber capacity.
4. Can accommodate one 1×8 or 1*16 steel tube version splitter
Application
1. Aerial
2. Pole mounted
3. Wall mounted
| Type | GJS-M11 / RS-B-288 | GJS-M11 / RS-B-144 |
| Size(mm) | 230 * 440 | 230 * 320 |
| splitter type | 1:4(2pcs)/1:8(1pc) | 1:4(2pcs)/1:8(2pc) |
| Cable diameter (mm) | 7~12 | 7~12 |
| Splice tray capacity | 16 (single core) | 16 (single core) |
| Cable in /out | 6 / 6 | 6 / 6 |
| Max quantity of splice tray | 18 | 9 |
| Max capacity | 288 (single core) | 144 (single core) |
| Sealing type | heat shrinkable tube, silicon rubber | heat shrinkable tube, silicon rubber |
►144 Core
►288 Core
