6 Port Fiber Optic Patch Panel SC 12 Core 1U Rack Mount Fiber Enclosure
1U Rack Mount Enclosure Drawer Type 12 Core 6 Port Fiber Optic Patch Panel
Description:
Rack Mount type fiber optic enclosure patch panel is an integrated unit for fiber distribution, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.
There different models to fit for 12core 24core 48core 96core 144core 288core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ, etc. related fiber accessories and pigtails are optional.
Product details
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 6 Port |
| Installation way | Rack Mount |
| Dimensions | 485mmx295mmx47mm(1U 19") |
| Applications | Rack Mountable Cabinet in Data Center |
| Connector Capacity | 6pcs SC/LC connectors |
| Connector Type |
SC LC FC ST |
| Location | Cabinet Usually |
| Location of Use | Data Center |
| Number of Trays | 1 Splice Tray |
| Product Type | ODF/Fiber Patch Panel |
| Splice Capacity | 24 fibers |
Feature:
1. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
2. The box has a pothook, which is convenient to install and dismantle.
3. The splice tray could be piled one upon another, flexible to turn
4. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly.
5. The indoor type is of excellent seal performance, which could prevent water from entering effectively.
6. The box is of unique structure, reasonable layout, and has adequate room for operation.
Application:
1. Telecommunications subscriber loop
2. FTTH
3. LAN/WAN
4. CATV
more models
| SIZE | |
| Drawer Type Fiber Patch Panel |
1U 12/24 Port SIZE:485*295*47MM |
| Drawer Type Fiber Patch Panel |
2U 48/72 Port SIZE:485*250*90MM |
| Drawer Type Fiber Patch Panel |
3U 96 Port SIZE:485*310*120MM |
| Drawer Type Fiber Patch Panel |
4U 144 Port SIZE:485*295*180MM |

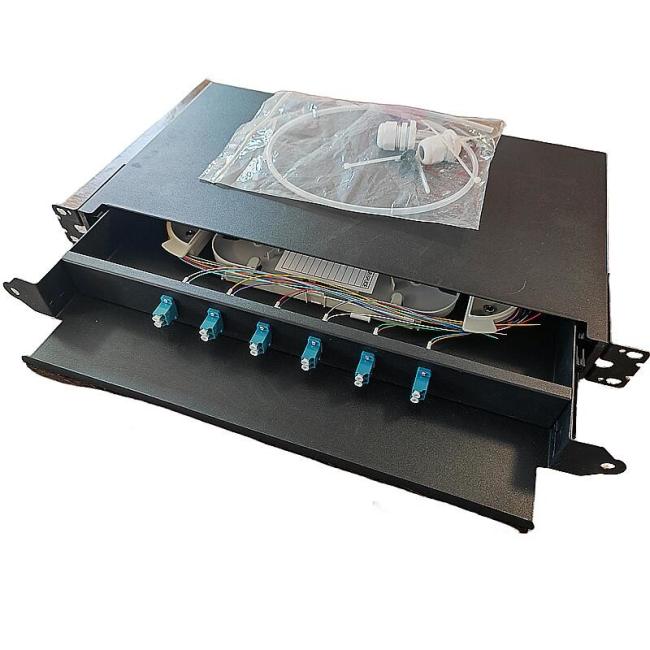

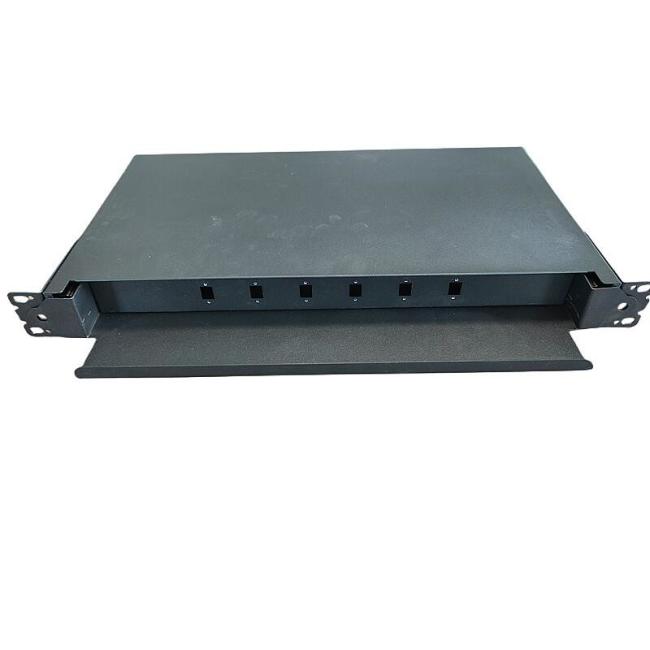

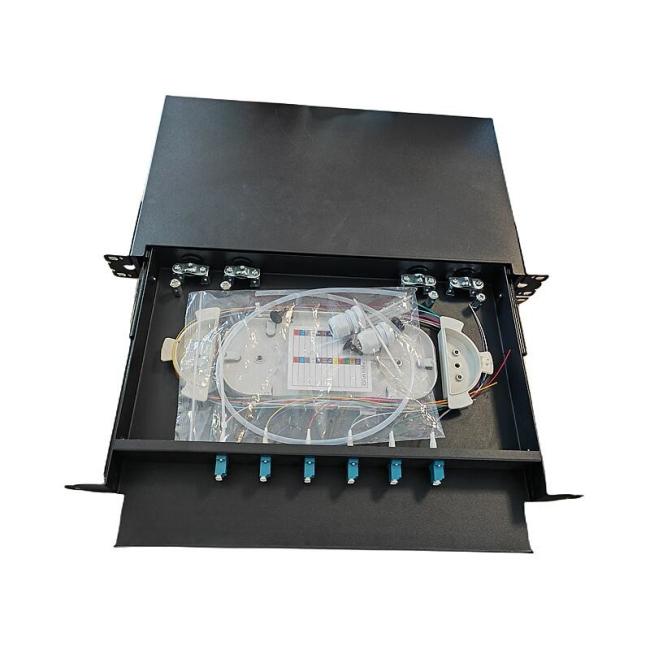

Details photos:
