Cold Roll Steel Rack Fiber Optic Patch Panel 0.8mm Thick 2U FC Adapter
Rack Mount Fixed Fiber Optic Patch Panel FC Adapter 48 Core 2U
Description:

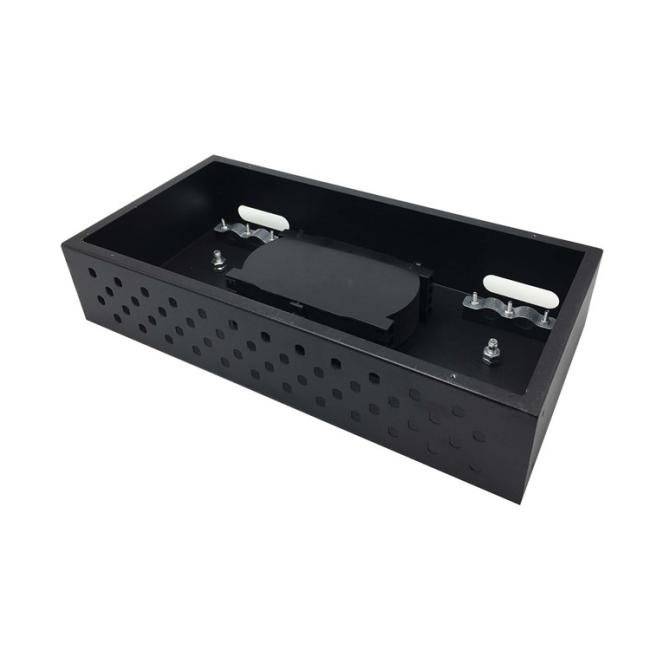

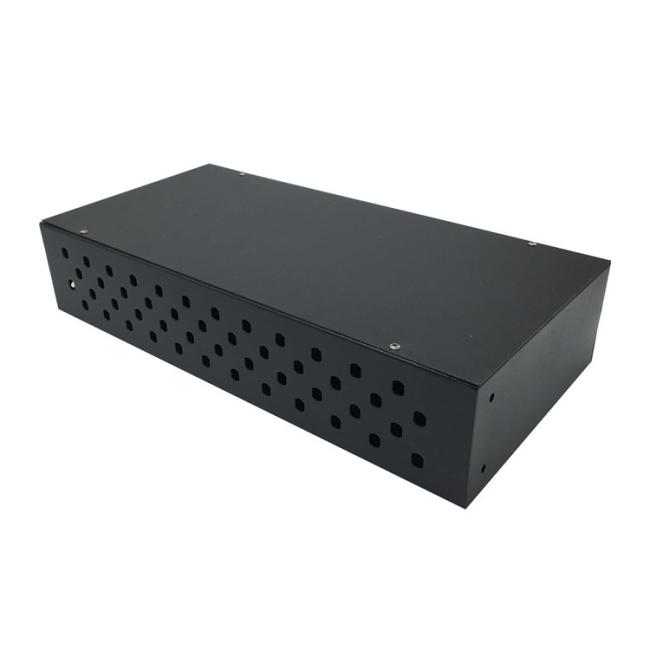

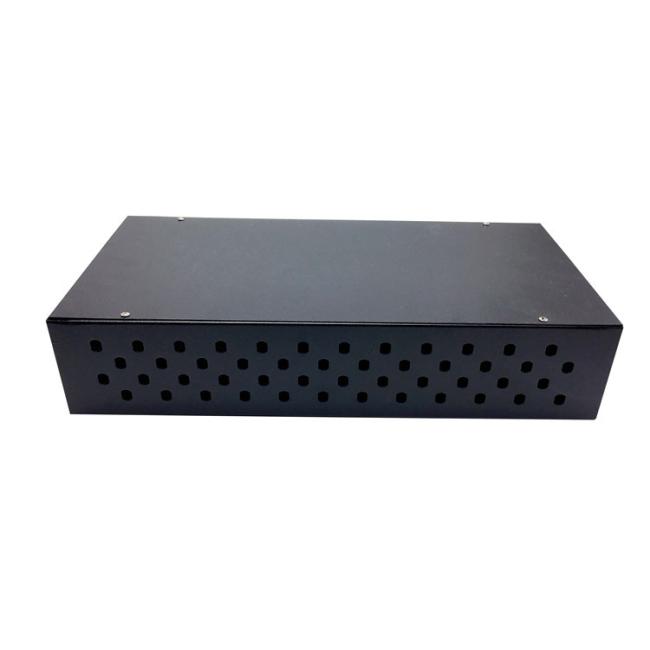

19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable
and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made
of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation
is convenient.
Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24
cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.
Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply
firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine
of termination, protection, connection, management of fiber optic cables.
Technical specification
| Material | Cold rolled steel sheet |
| Thinckness of the steel sheet | 0.8mm,1.0mm,1.2mm |
| Painting method | Electrostatic Painting |
| Color | Black |
| Dimension | 430×250×85mm |
| Capacity | 48 Core |
| Adapter | FC/SC/ST/LCD |
| Atmospheric pressure | 70kPa～106kPa |
Feature:
● Standard 19 inch structure, could be installed on various of standard racks.
● 19" drawer and 19" fixed optional
● 1.0mm superior cold-rolled sheet cold-rolled primes,surface painting by Electro-static coating
● Frame plate is suitable for installing sorts of adaptors such FC, SC, ST, 2LCetc.
● Three-in-One of fiber splicing wrapping &storage Distribution with smart configuration
● Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.
