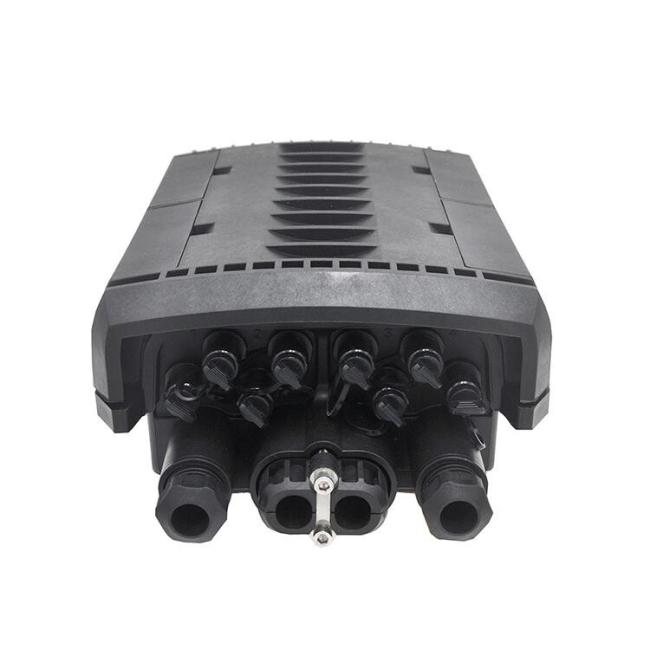

8 Core Fiber Access Terminal Box IP68 Cajas Nap With Splice Trays

The access terminal box is an outdoor pre-terminated network access point closure (NAP) designed for harsh

environments to enable fast and easy deployment of FTTX and special fiber networks. It is used to connect

distribution network cable to access network drop cables in FTTX and fiber networks. IP68 protection together

with hardened outdoor patchcord integration provides perfect solution for harsh outdoor environments and manholes.

Features

1.  Integrated with flap-up splice trays.
2.  Impact test:IK10,Pull Force:100N,Full rugged design.
3.  Maximum 144F splice capacity, stainless anti-rust bolts and nuts.
4.  Plug-and-play installation, easy for maintenance and expansion.
5.  Fiber bend radius control more than 40mm.
6.  180 degree access with buckled lock structure.
7.  1*8 PLC Splitter can be installed in each splice tray as option.
8.  Mechanical sealing structure and mid-span cable entry.
9.  8 pcs of pre-installed reinforced water-proof adapter for SC.
10.  1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 mechanicals glands for distribution cable (8-16.5mm).

Technical Index

Applications

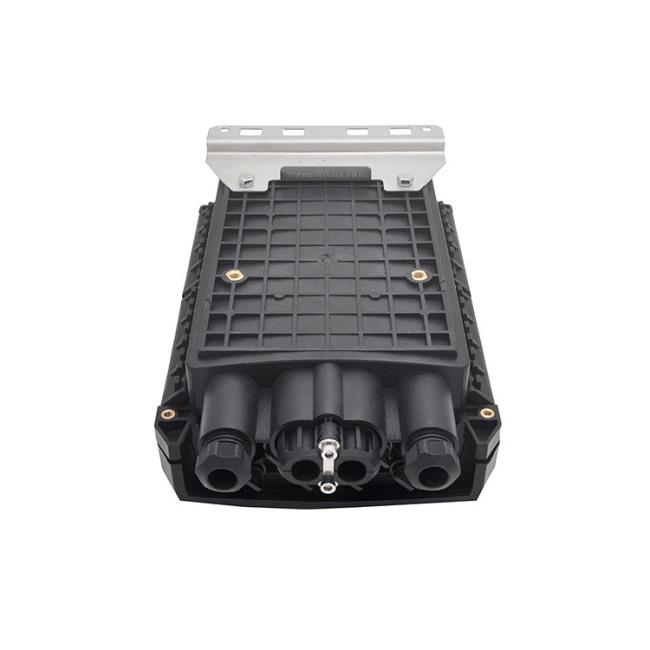

Wall mounting and pole mounting installtion
FTTH pre-installation and filedinstallation

Standard Accessories
Splice cassette and cable management tool,installation nuts and bolts,protection sleeves,
hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.
