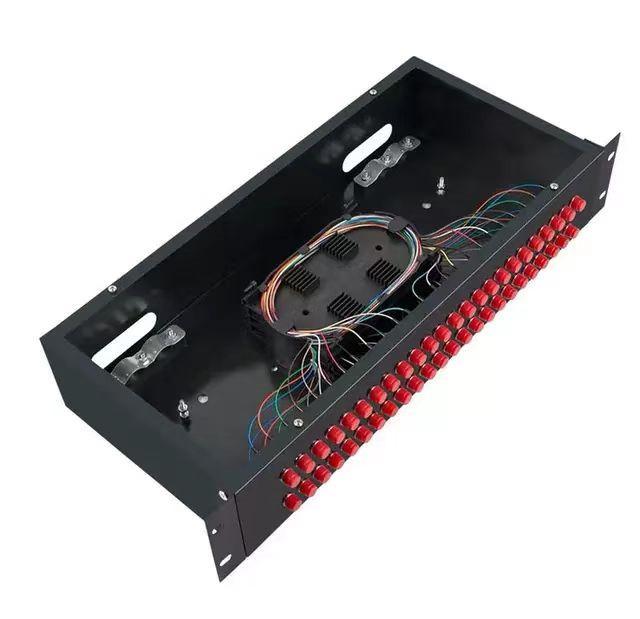

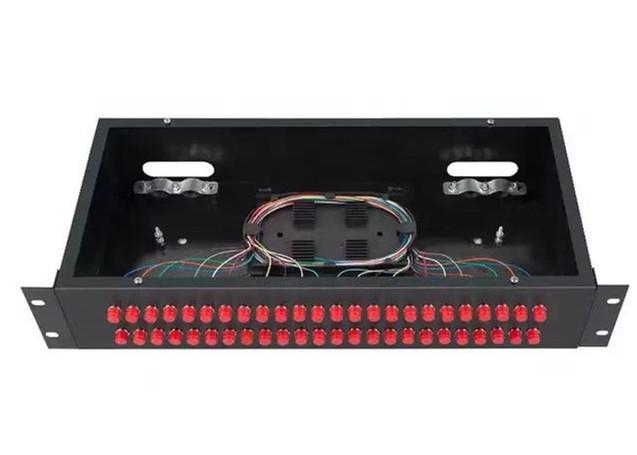

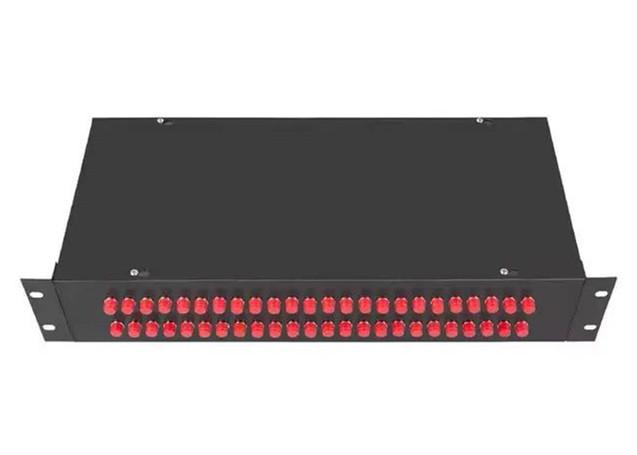

2U Optical Fiber Distribution Panel Box Enclosure Rack Mount Fc Adapter
Optical Distribution Enclosure Rack Mount Enclosure 19" 2u 48 Fibers With Fc Adapter
Description:
TW-RM02-2U-FC is made of 2U 19" cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. It provides an economical way of splicing fiber cables in communication room or existing equipment racks where space is constrained.
Apply to termination point of optical fiber access network, and comply with LC, FC, ST or SC adapter. The function of wiring and splicing realize flexible wiring and storage cable core.
-
Cold-roll steel, electrostatic painting
-
ABS plastic tray inside, 12~24 cores per tray
-

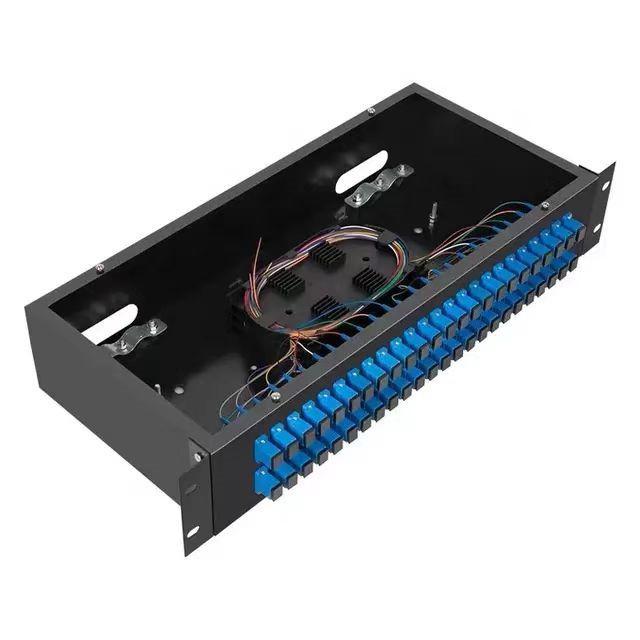

Different adapter plate available: FC, SC, LC, ST…
-
Suitable for 19’’ standard optic distribution cabinets
-
With front cover; 4 fiber cable entry ports at rear side
-
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
-
Rack mouted fixed type, indoor using;
-
White, black, grey … color painting optional
-
12 / 24 / 48 / 72 / 96… capacity customised
Technical Specification
| Material | Cold rolled steel sheet |
| Thinckness of the steel sheet | 1.0mm,1.3mm |
| Painting method | Electrostatic Painting |
| Color | Black |
| Dimension | 430*200*83mm |
| Capacity | 48 Core |
| Adapter | FC Simplex |
| Atmospheric pressure | 70kPa~106kPa |
| Application | Rack Mounted |
