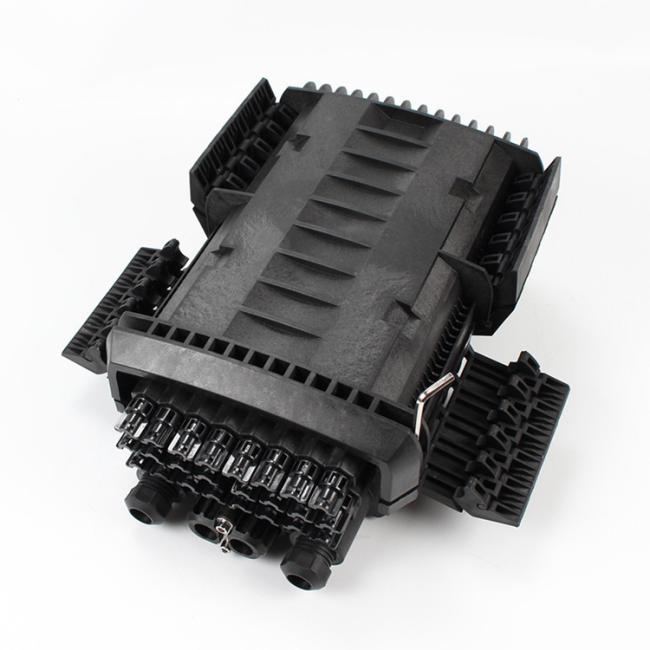

Fiber Optic Joint Closure 2 inlet 24 out 24 Core in tray max capacity 96 Core 4 trays

The fiber access terminal closure can connect the drop cable with feeder cable as the termination point

in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting,

storage and management with suitable space.It's designed to seal without screws. The compact size and

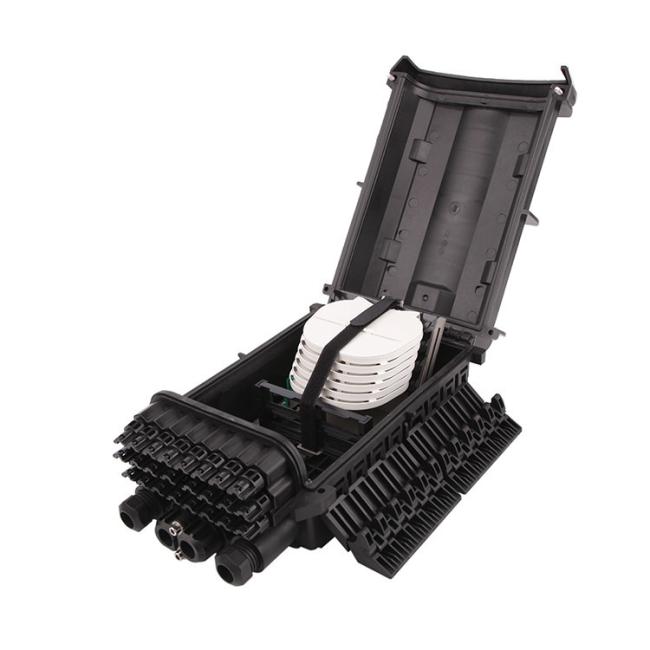

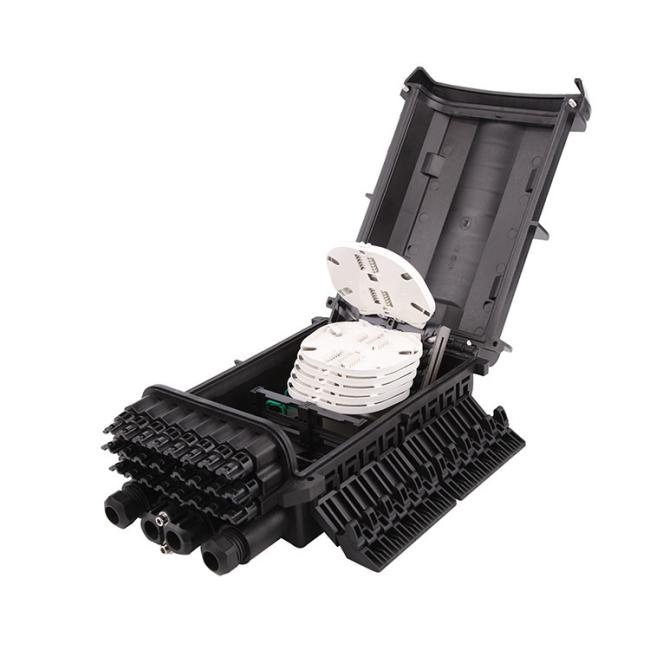

flip-over cover bring easy operation as well as complete function.The splice trays are jointed with a hinge

at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.

Technical Index

Features:

3.1 The body is made of high quality engineering plastic with good strength;

3.2 Water-proof design with IP-68 Protection level.

3.3 Integrated with flap-up splice cassette and adaptor holder.

3.4 With independent design, the box can be installed and maintained easily,

3.5 The fusion and termination are completely separated;

3.6 The drop leaf can be installed 2 pcs of 1*8 tube splitter.

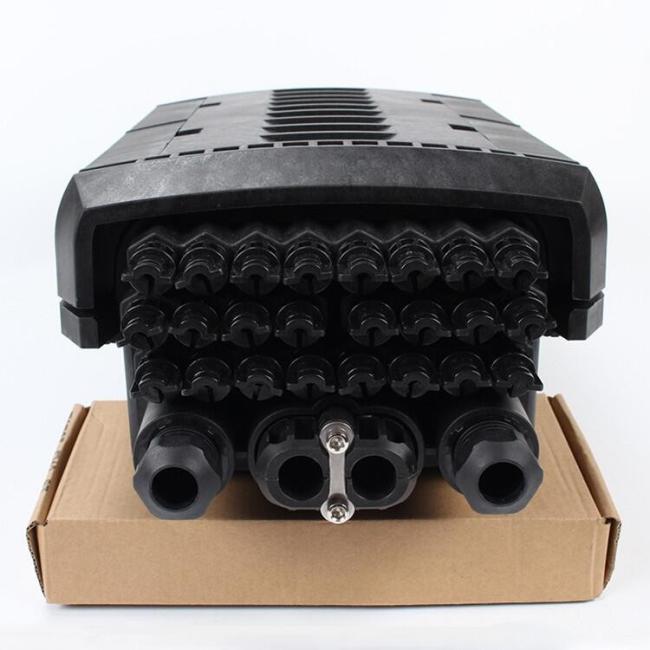

3.7 24 ports cable entrance for drop cable.

3.8 Impact test:IKlO.Pull Force:lOON.Full rugged design

Applications

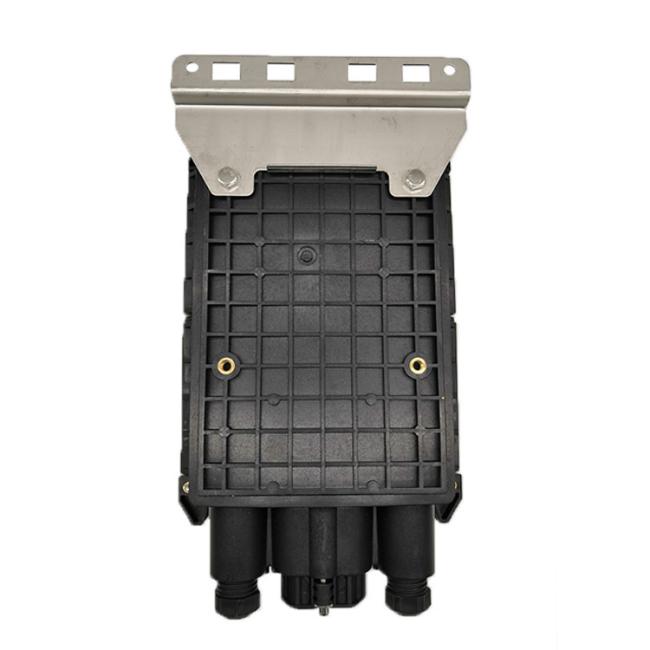

Wall mounting and pole mounting installtion
FTTH pre-installation and filedinstallation

Standard Accessories
Splice cassette and cable management tool,installation nuts and bolts,protection sleeves,
hose clamp,cable tube,wreach,cover holder,rubber seal for cable entrance.
