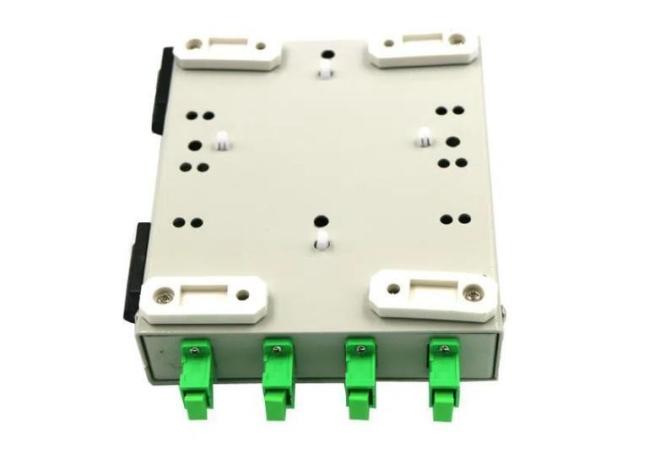

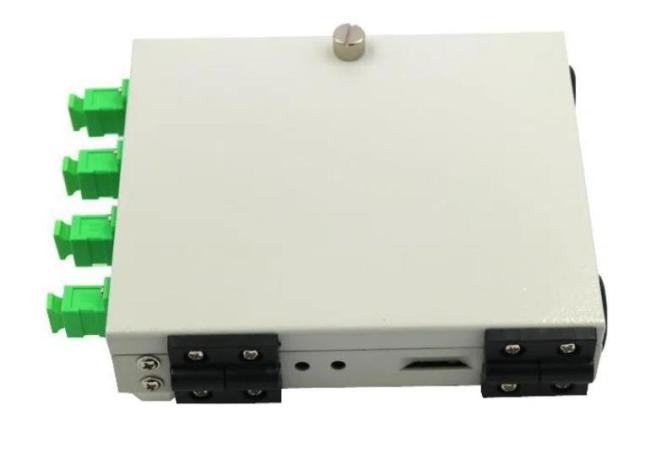

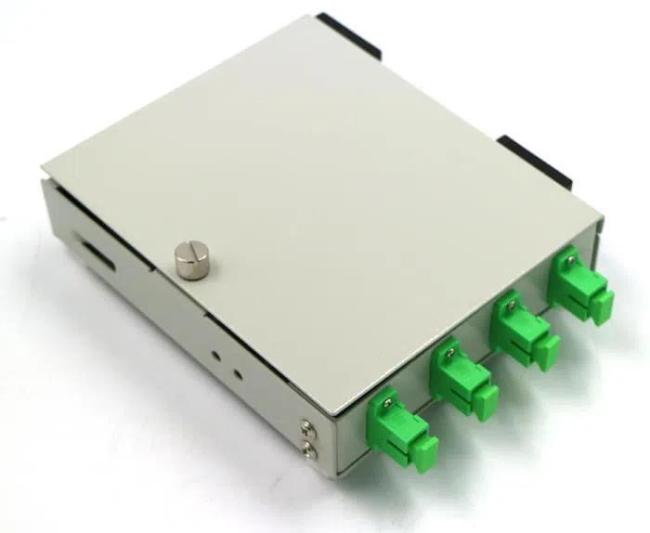

4 Core Wall Mounted Optical Fiber Terminal Box With Sc/Apc Adapters

FTB Series FTTH customer terminal box is used in the end termination of residential buildings and villas, to fix and splice with pigtails. We offer the full set of plastic terminal box as distribution box, including 0.9um pigtail and related adapter. 4Fiber wall mounted terminal box can install with 4pieces 0.9mm pigtails and Standard adapter ,SC,LC,FC,ST all is available.

Features

• 4 fibers or 8 fibers are available. Others can be customized
• Compact size, suitable for mini-network terminal distribution
• Clamshell design, easy to operate.
• Mountable adapter: SC simplex or LC duplex
• The fiber radius of curvature is over 40mm.
• The blockless splitter can be installed as an option.
• Working temperature: -40℃~+60℃
• small size,light weight,pleasing in appearance
• wall mounted with mechanical protection function
• hinge and convenient press-pull button lock design
• Fiber radius of curvature: ≥30mm
• Optical disk additional loss: ≤ 0.01dB
• Anti lateral pressure: ≥2000N / 10 cm
• Shock resistance: ≥20N.m

• Small size, light weight, pleasing in appearance

Technical specification
