120F Fiber Optic Terminal Box Wall Mount 16Port Aerial Hanging
16Port 120F Fiber Optic Terminal Box Aerial-hanging Wall-mount SC/LC/FC/ST
Description
FATB-0416A fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
| Name | 5trays 120Fibers 16Ports FATB Fibre Optik Distribution Enclosure |
| Use | FTTH FTTX FTTB Solutions |
| Application Type | Indoor/Outdoor |
| Installation Way | Wall-mount / Pole-mount / Aerial-hanging |
| Connector Type | SC/LC/FC/ST |
| Fiber Type | SM / MM (OM1, OM2, OM3, OM4) |
| Color | Grey/Black |
| Material | PC+ABS |
| Max Capacity | 120Fibers (5trays x 24F), PLC Splitter (2pcs 1x8) |
| Weight | 1.85kgs |
Features
► Water-proof design with IP-65 Protection level.
► Integrated with flap-up splice cassette and adapter holder.
► Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
► Easy for maintenance and expansion.
► Fiber bend radius control more than 40mm.
► 180 degree access with buckled lock structure.
► 2pcs of 1*8 PLC splitter can be installed.
► 16 pcs of mechanical ports for 3-7mm drop cable.
► 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm).
Configuration
|
Material |
PC+ABS |
| Size | 340*220*95mm |
|
Max Capacity |
Splice 120 Fibers (5 trays x 24F) |
| PLC Splitter 2pcs of 1x8(SC) | |
| Nos of Adapter | 24pcs SC/UPC or SC/APC |
|
Weight |
1.85kgs |
| Color | Grey/Black |
Application
► Wall-mounted Installation
► Pole-mounted Installation
► Aerial-hanging Installation
► Suitable for 2x3mm indoor FTTH drop cable and outdoor 4-7mm figure-8 self-supporting drop cable

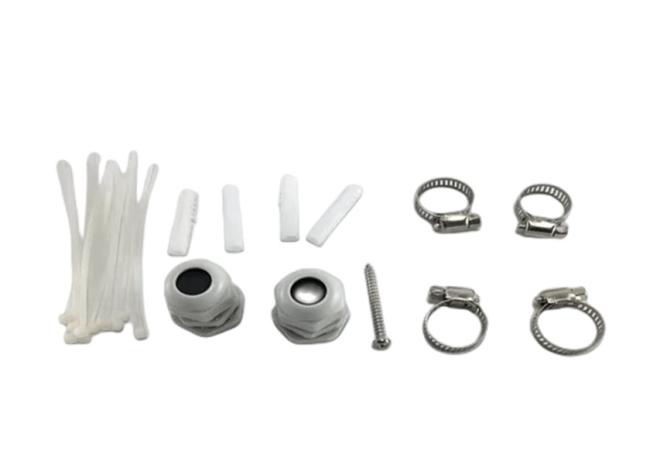

Standard Accessories
♦ Splice cassette and cable management tool
♦ Installation nuts and bolts
♦ Protection sleeves
♦ Hose clamp
♦ Cable tube
♦ Key
♦ Wrench
♦ Rubber seal for cable entrance
Optional Accessories
♦ Pole mounted Kits

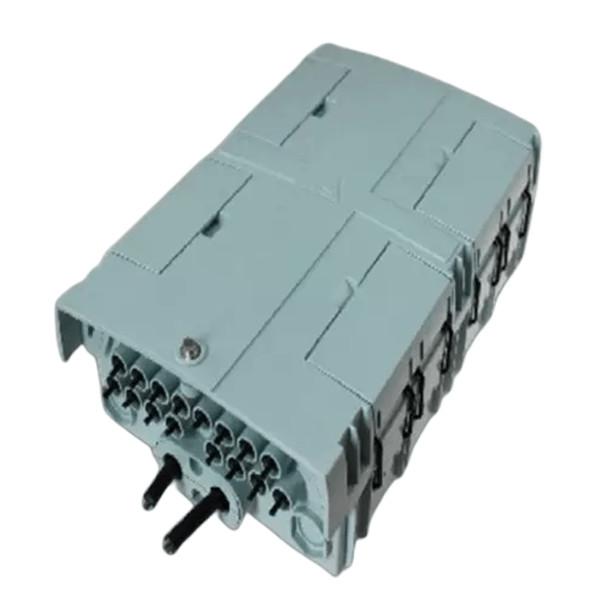

Details Picture
FAQ
► What’s your advantage? Why we choose you?
1) 10 Years experience of fiber optic equipment and R&D. We have the most professional techniques and team. More advantage in price.
2) Great production capacity Sustainable Supply. According to customer requirements, We support the customized include package.
3) We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
► What’s the Payment?
T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union and Paypal. For large quantity, sea shipping can be provided.
► Are you a factory or trading company?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
► How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
► When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
► How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays.
You can use your own express account or prepay us if you do not have an account.
