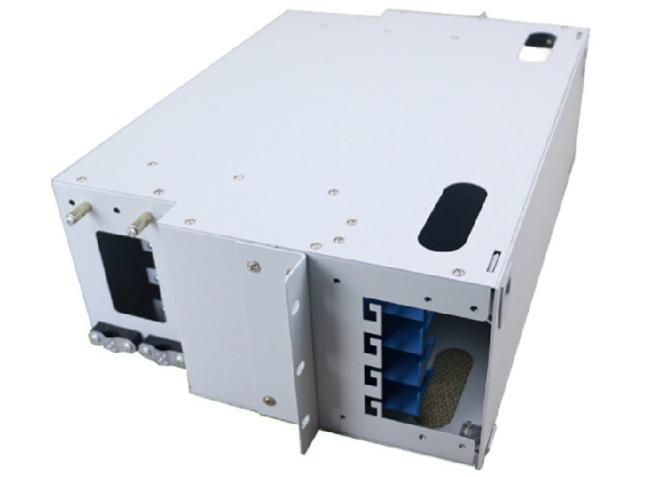

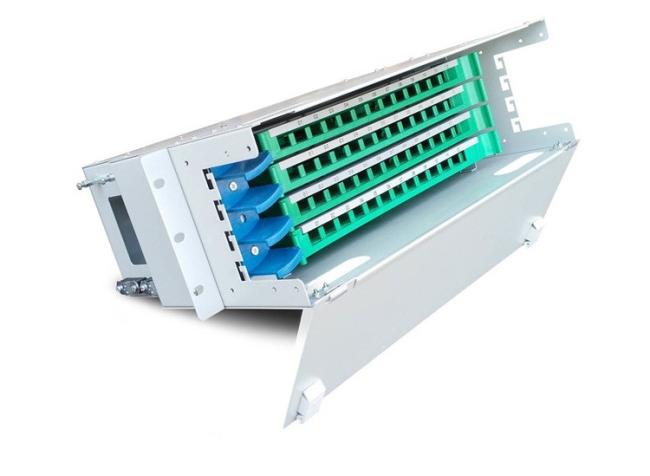

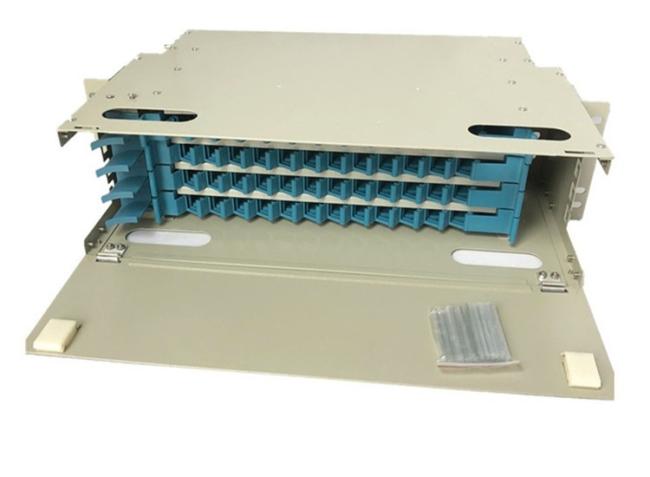

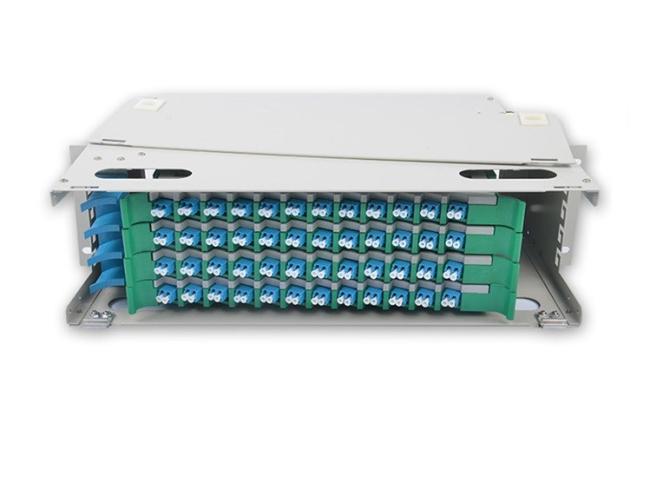

ODF Optic Distribution Unit Singemode 48 Port Fiber Optic Patch Panel LC
48Ports 96 Core LC Duplex Singemode Fiber Optic Distribution Unit Indoor Wall Mount
Specification:
| We support fiber capacity | 12/24/48/72/96/144 cores |
| Fiber Port | FC, SC, ST and LC |
| Number of ODF disks | 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
| Working temperature | -10 °C ~ +40 °C |
| Storage temperature | -25 ° C ~ +55 ° C |
| Relative humidity | ≤ 85% (+30 ° C) |
| Atmospheric pressure | 70Kpa~106Kpa |
| Nominal operating wavelength | 850nm, 1310nm, 1550nm |
| Insertion loss | ≤ 0.5dB |
| Return loss | PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
| Electrical strength | ≥3KV(DC)/1min without breakdown |
| Insulation resistance | ≥1000MΩ/500V (DC) |
| Life | ≥1000 times |
| Application range | Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.
Features:
1. Fully modular design and full frontal operation
2. Cold rolling steel sheet body, which is artistic and durable
3. Integrate splicing and wiring together, maximizing high density
4. Installed on standard 19 inch rack
5. Suitable for ribbon and non-ribbon fibre optic cables
6. Universal adapters SC, FC, ST and LC can be installed
7. Fibre cable and patch cords both have storage space of more than 2m
8. With cold-roll steel box, splicing unit, distribution unit and panel
9. Various panel plate to fit different adapter interface
10. Suitable for single fiber and ribbon & bundle fiber cables
11. Special design ensures the excess fiber cords and pigtails in good order
12. No interval and easy for management and operation
Application:
1. Telecommunication
2. CATV
3. LAN & WAN
4. Network
5. Broadband
The installation procedure of the box
A. Open the front cover of the box or the top (if necessary), take down the fiber splice tray; let in the fibers
from the fiber entry and fix them on the box; the devices for fixation are as follows: the adjustable collet,stainless fiber cable ring & nylon tie;
B. The fixation of steel core (if necessary): thread the steel core through the fixed device (optional) and screw down the bolt;
C. Leave about 500mm-800mm long spare fibers from the peeled point of fiber cable to the entrance of the splice tray, cover it with plastic protective tube, fix it with plastic tie at the T type holes; splice fibers as
usual;
D. Store the spare fibers and pigtails, plug the adapters in the slots on the tray; or first plug in the adapters and then store the spare fibers, please pay attention to the direction of coiling fibers
E. Cover the splice tray, push in the splice tray or fix it with the slot at the edge of the box;
F. Install the box inside 19" standard mounting equipment.
G. Connect the patch cord as usual.
