N06002 Hastelloy X Plate ASTM B435 Alloy Metal Products Nickel Steel Sheet For Oil Pipeline
ASTM B435 Hastelloy X UNS N06002 Nickel Alloy Steel Plate Sheet For Oil Pipeline
Introduction
Hastelloy C-276 alloy is a nickel-chromium-molybdenum alloy containing tungsten, an extremely low silicon carbon content, and is considered a universal corrosion-resistant alloy.
Specifications
|
Prdouct Name
|
ASTM B435 Hastelloy X UNS N06002 nickel alloy steel plate sheet |
|
Grade
|
Hastelloy: Hastelloy B / B-2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750,Carpenter 20; Incoloy: Incoloy 800/800H/800HT/825/925/926; Monel: Monel 400/K500 Nimonic: Nimonic 75/80A/90 ; |
|
Outer
Diameter (OD) |
Peeling Bar: 16~180mm
Cold Drawn Bar: 4.76~120mm (All sizes can be customized) Forged Bar: 180~400mm |
|
Length
|
Customized
|
|
Application
|
Auto, turbines, blades, powder and engines,etc
|
|
Feature
|
High corrosion resistance, low density, good thermal stability
|
|
Surface
|
Bright, Polished, Pickling, Acid cleaning, Sandblasting
|
|
Quality and test
|
Hardness test, Bending test, Hydrostatic etc.
|
|
Surface
|
Polished
|
|
Trade Term
|
FOB CIF EXW ,etc
|
|
Payment
|
T/T,Western Union
|
|
Delivery
|
7-25days or according to the product
|
|
Name
|
Hastelloy C-276 ( UNS N10276/W.Nr.2.4819/NS336)
|
||||
|
Nickel
|
|
Hastelloy
|
C276
|
||
|
Chemical Compsition Wt.%
|
Ni
|
balance
|
balance
|
||
|
Cr
|
min. 14.5
|
max. 16.5
|
min. 14.5
|
max. 16.5
|
|
|
Mo
|
min. 15
|
max. 17
|
min. 15
|
max. 17
|
|
|
Fe
|
min. 4
|
max. 7
|
min. 4
|
max. 7
|
|
|
W
|
min. 3
|
max. 4.5
|
min. 3
|
max. 4.5
|
|
|
Co
|
min. -
|
max. 2.5
|
min. -
|
max. 2.5
|
|
|
C
|
min. -
|
max. 0.08
|
min. -
|
max. 0.01
|
|
|
Mn
|
min. -
|
max. 1
|
min. -
|
max. 1
|
|
|
Si
|
min. -
|
max. 1
|
min. -
|
max. 0.08
|
|
|
V
|
min. -
|
max. 0.35
|
min. -
|
max. 0.35
|
|
|
P
|
min. -
|
max. 0.04
|
min. -
|
max. 0.04
|
|
|
S
|
min. -
|
max. 0.03
|
min. -
|
max. 0.03
|
|
|
Physical Constants
|
||||
|
Density.g/cm3
|
8.9g/cm3
|
|||
|
Melting Range
|
1325-1370 ℃
|
|||
|
Form
|
ASTM
|
ASTME
|
||
|
Plate, sheet and strip
|
B575
|
SB575
|
||
|
Seamless pipe and tube
|
B622
|
SB622
|
||
|
Welded pipe and tube
|
B619.B626
|
SB619.SB626
|
||
|
Rod
|
B574
|
SB574
|
||
|
Forging
|
B564
|
SB574
|
||
|
Characters
|
1. In the oxidation and reduction state, it has excellent corrosion resistance to most corrosive media.
|
|||
|
2. Excellent resistance to pitting corrosion, crevice corrosion and corrosion cracking.
|
||||
|
Applications
|
1.Pulp and paper industry, such as boiled and bleached containers
|
2.Scrubbers, reheaters, wet air fans in FDG systems.
|
3.Equipment and originals working in acid gases
|
4.Reactors for acetic acid and acidic products
|

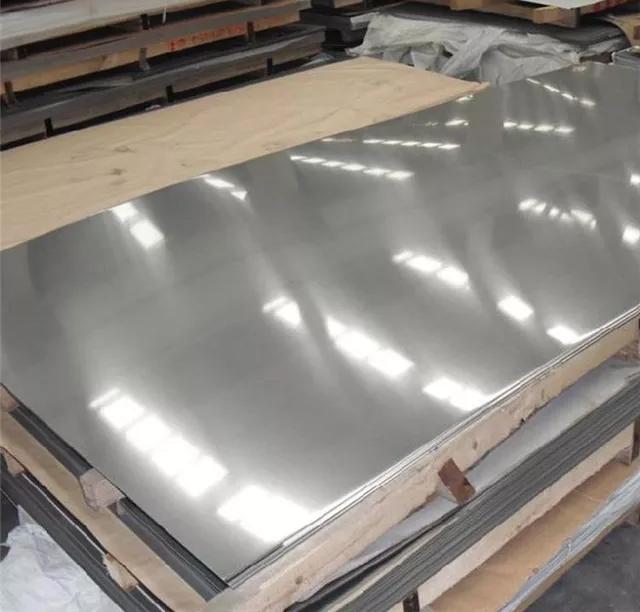

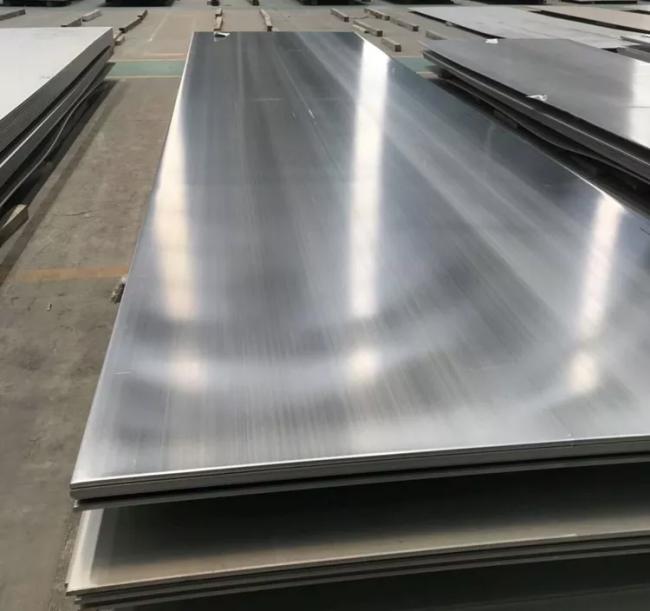

Product detail
