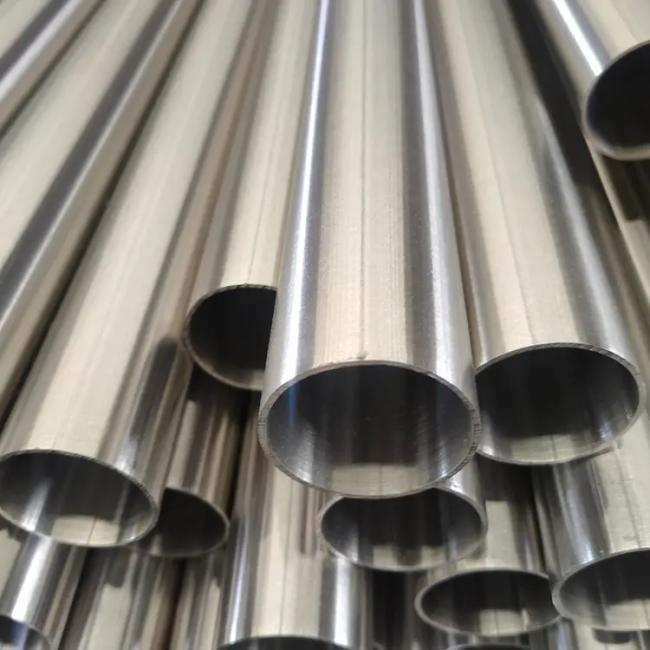

Precision Seamless CuNi 70/30 Pipe ASME SB111 C70600 High Pressure Tube
Precision Seamless CuNi 70/30 Pipe ASME SB111 C70600 High Pressure Tube
1.Product Description
Copper-nickel pipe is a wrought non-ferrous tube produced from vacuum-melted, deoxidized alloy. The material is characterized by its single-phase solid solution structure, which provides a unique combination of mechanical strength and ductility. The pipe is manufactured by piercing and cold drawing (seamless type) or by continuous welding with post-weld heat treatment (welded type). Both types meet international pressure vessel codes. A distinctive feature of this pipe is its ability to withstand impingement attack from flowing seawater containing sand or other suspended solids.
2.Product Advantages
-
Superior resistance to hydrogen embrittlement – Can be used in wet H₂S environments up to 50 ppm without cracking.
-
Excellent low-temperature toughness – Impact strength remains high down to -250°C (no ductile-to-brittle transition).
-
Resistance to chlorine dioxide – Suitable for paper mill bleach plants (unlike stainless steel).
-
Non-sparking property – Safe for use in explosive atmospheres (ATEX Zone 1 and 2).
-
Low maintenance requirement – Oxide layer eliminates need for internal coating or cathodic protection.
3.Product Applications
-
Liquefied gas transfer – LNG and LPG loading arms (cryogenic service down to -196°C after impact testing).
-
Firewater systems on FPSO vessels – Deck ring main and hydrant risers.
-
Heat recovery steam generators – Low-pressure evaporator tube bundles.
-
Marine condensers – Seawater side tubing in naval vessels (low magnetic signature).
-
Offshore wind farms – Internal cooling circuits for turbine converters.
-
Dockside potable water lines – NSF/ANSI 61 certified (for 90/10 alloy only).
4.Key Product Parameters
| Parameter | 90/10 Cu-Ni (C70600) | 70/30 Cu-Ni (C71500) |
| Nickel content | 9.0 – 11.0% | 29.0 – 33.0% |
| Iron content | 1.0 – 1.8% | 0.4 – 1.0% |
| Manganese content | 1.0% max | 1.0% max |
| Carbon content | 0.05% max | 0.05% max |
| Lead content | 0.02% max | 0.02% max |
| OD tolerance (seamless) | ±0.1 mm for OD ≤ 50 mm | ±0.1 mm |
| WT tolerance | ±10% of nominal | ±10% of nominal |
| Straightness | 1.0 mm per 3 m length | 0.8 mm per 3 m length |
| Thermal conductivity (at 20°C) | 45 W/m·K | 29 W/m·K |
| Coefficient of thermal expansion | 17.0 × 10⁻⁶ /K | 16.2 × 10⁻⁶ /K |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
