1.44 inch square display128x128 arduino ST7735 MCU TFT LCD DISPLAY
1.44 Inch LCD Display Module/TFT Display/128x160 TFT LCD/TFT-H014A1QQTST2N20
Product Description
Product Type - TFT
Display Content - 128x128
Field of View Window Size (mm) - 1.44"
Product Application - Kids Phone Watch
Viewing Angle - 12H (U70/D60/L70/R70)
Backlight type or brightness - 500cd/m2
Connection method PIN number - 26PIN
Interface - MCU
General Feature:
| Item | Standard Value | Unit |
| Display Size | 1.44” | -- |
| Number of Pixels | 128(H)x3(RGB)x128(V) | -- |
| Active Area | 25.498(H)x26.496(V) | mm |
| Outline Dimension | 29.50(H)×36.50×2.55(V) | mm |
| Viewing Direction | 12 O’Clock | - |
| Interface | MCU 8 bit interface compatible with SPI 3L/4L | - |
| Driver IC | ST7735S | - |
| Driver Condition | IOVCC=1.8V,VCI=2.8V | V |
| Backlight | White LED | - |
| Touch Panel | No Touch Panel | - |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
Product Description

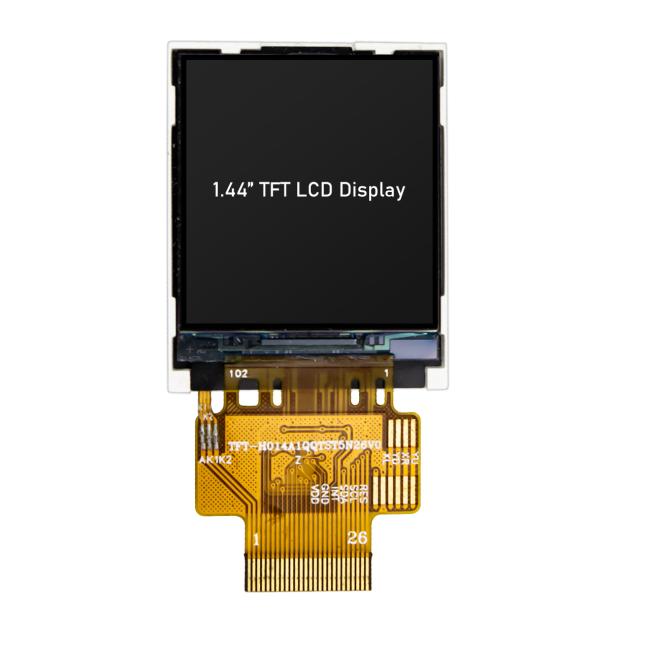

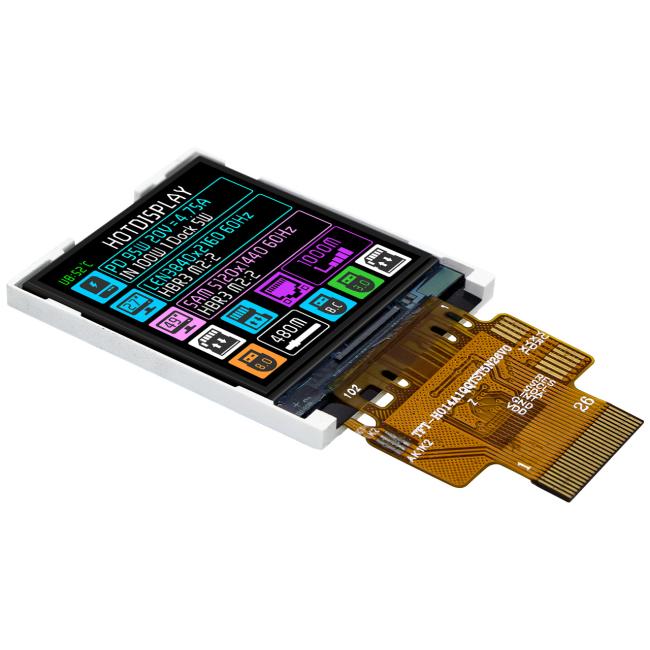

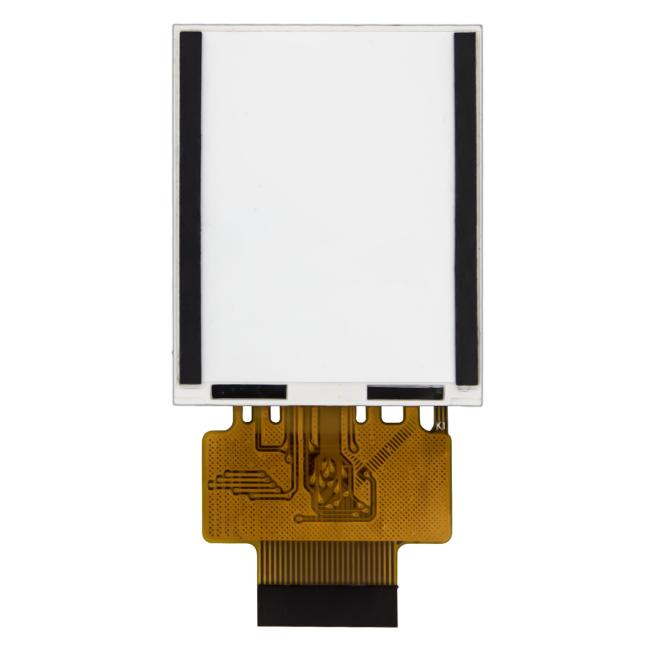

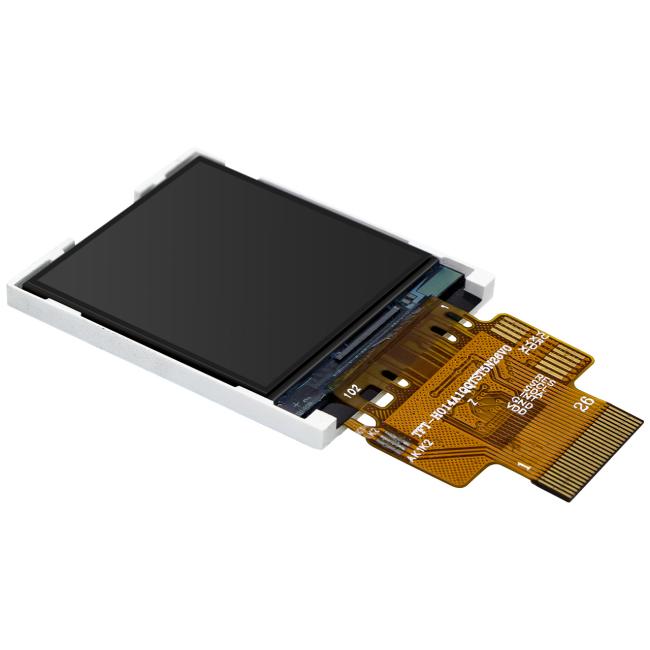

Product Description TFT-H014A1QQTST5N26 is a 1.44-inch full-color TFT LCD display module with a resolution of 128x128 pixels and an aspect ratio of 1:1. The TFT module adopts ST7735S driver IC and supports MCU interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), the typical contrast ratio is 800:1, and the module brightness is up to 500 nits (typical value). Module operating temperature range -20℃~+70℃, storage temperature range -30℃~+80℃
