2.8-inch SPI TFT LCD Display For Industrial

Price Negotiable

Price: Negotiable

MOQ: 2

Delivery Time: 25 days

Brand: HOTHMI

Product Description

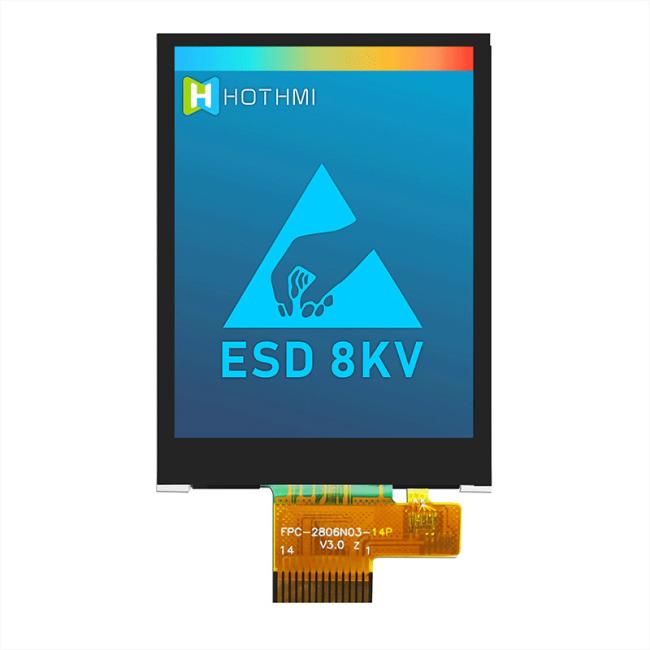

2.8" TFT SPI 240x320/2.8" SPI Interface TFT Color Display/TFT-H028A8QVTST2N14

Product parameters

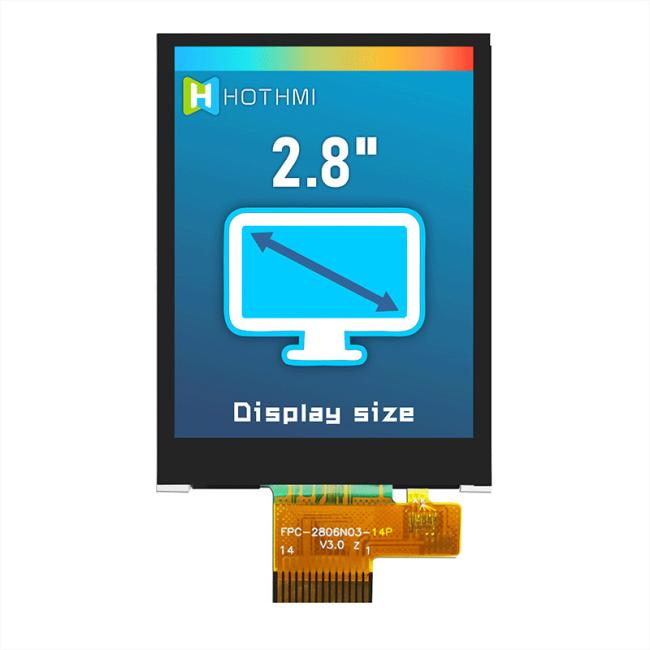

Display Dimensions (mm) - 2.8"
Viewing Angle - 12H

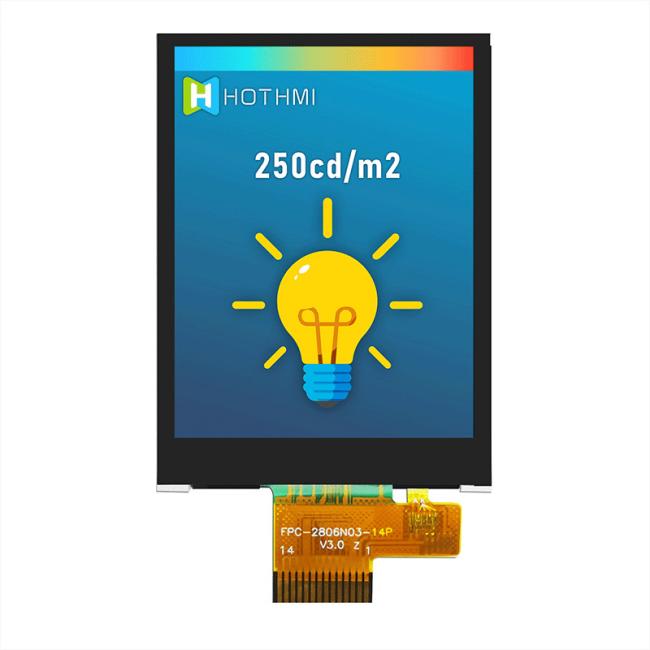

Backlight brightness - 250cd/m2
Connection method PIN number - FPC-14PIN

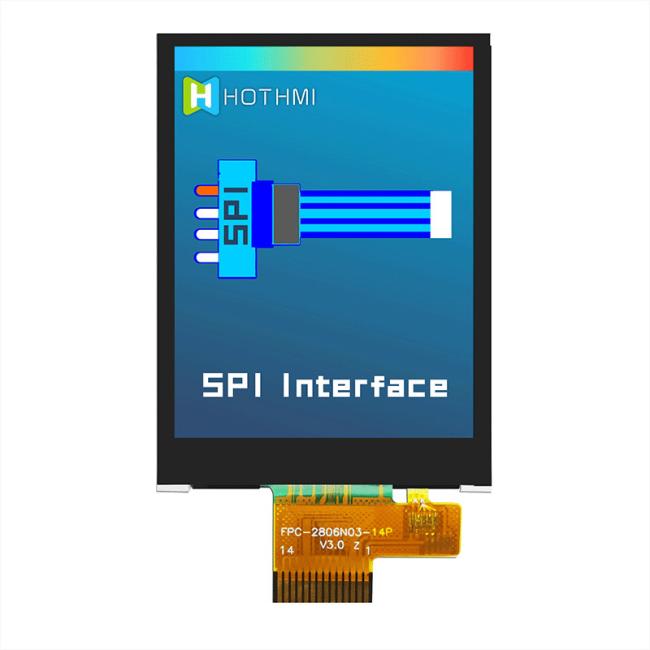

Interface - SPI 4L

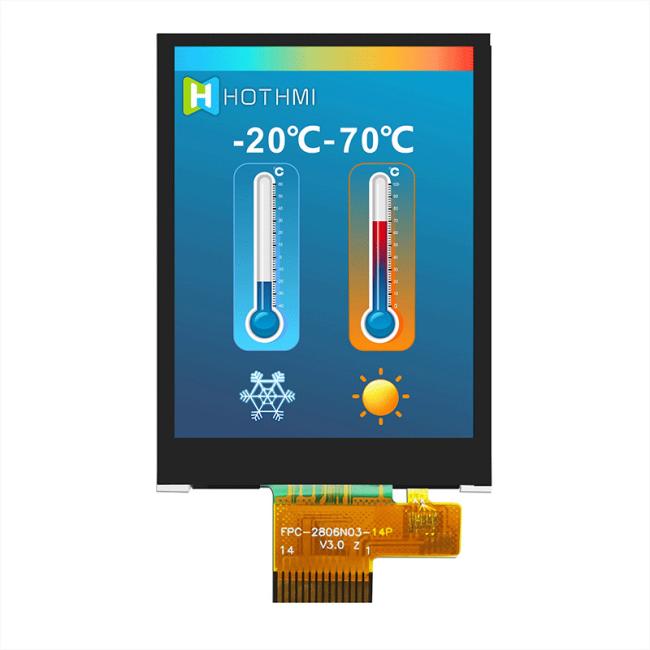

Operating temperature - (-20~70℃)
Supply Voltage - 2.8V

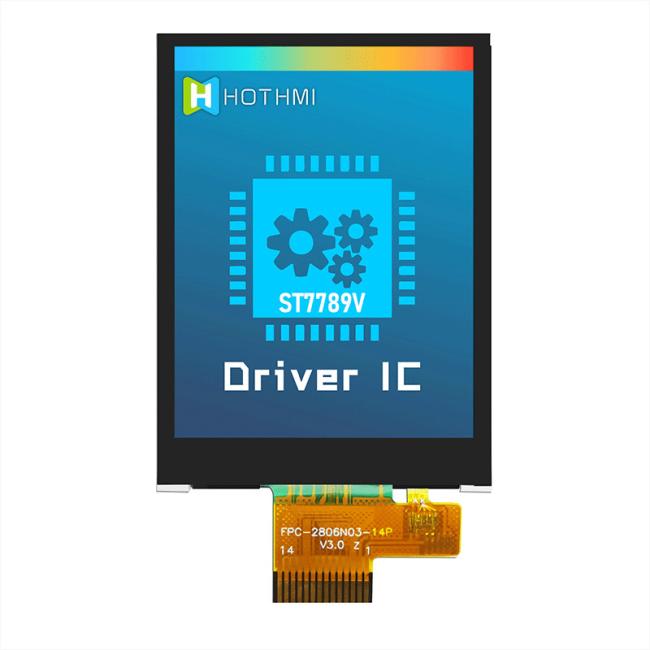

Driver chip model - ST7789V

General Feature:

Item	Standard Value	Unit
Display Size	2.8”	-

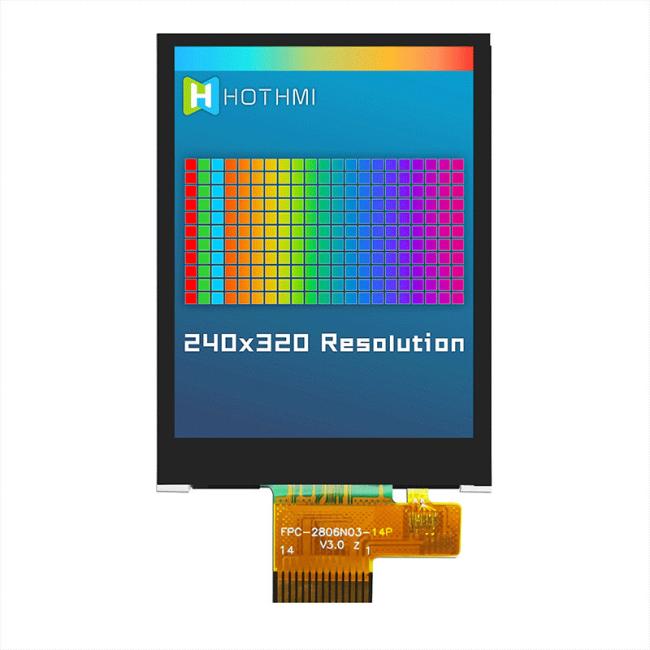

Number of Pixels	240(H)x3(RGB)x320(V)	-
Active Area	43.20H) x 57.60(V)	mm
Outline Dimension	50.00(H) x 69.20(V) x 2.50(D)	mm
Viewing Direction	12 O’Clock	-
Interface	SPI 4L	-
Driver IC	ST7789V	-
Driver Condition	VCI=2.8V,IOVCC=1.8V	V
Backlight	White LED	-
Touch Panel	Whitout Touch Panel	-
CTP Driver IC	- - -	-
CTP Driver Condition	- - -	V
Operation Temperature	-30 ～ 70	℃
Storage Temperature	-40 ～ 85	℃

Pin Description

Pin NO.	Symbol	Description
1	LED_A	LED Anode(+3.2V/80mA)
2	LED_K	LED Cathode
3	GND	Ground
4	CSB	Chip select input pin (“Low” enable).
5	RESX	LCM Reset Pin.
6	D/CX	Display data/command selection pin in 4-line serial IF.
7	SCL	This pin is used to be serial interface clock.
8	SDA	SPI input/output PIN
9	VCI	Digital Power(2.65 ~ 3.3 V)
10	GND	Ground
11	IOVCC	I/O Power (1.65 ~ 3.3 V)
12	NC	Open Pin
13	NC	Open Pin
14	GND	Ground
