160X128 Graphic Blue LCD Display With White Backlight T6963C

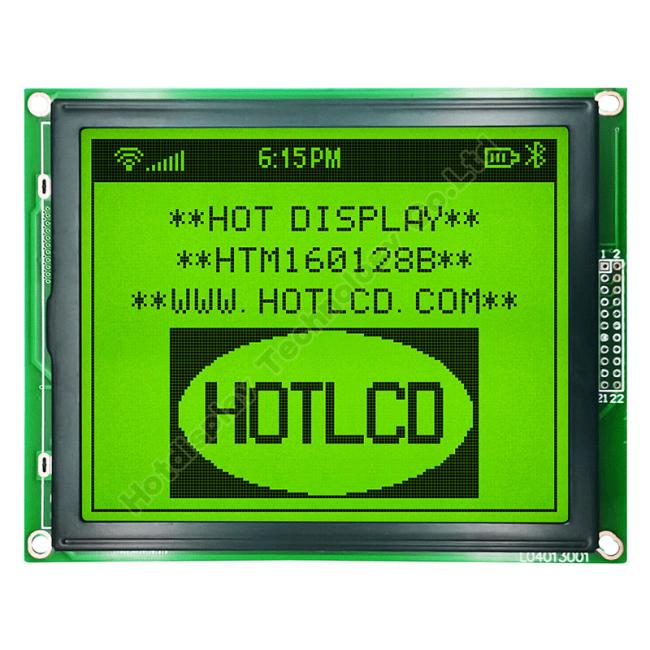

160X128 Graphic LCD Module | STN - Blue Display With White Backlight T6963C/HTM160128B
HTM160128B | Monochrome Graphic Module | 160x128 Pixels | Transmissive LCD | White Backlight | STN (-) Negative Blue Display | Built-in Negative Voltage | Selectable Font Size

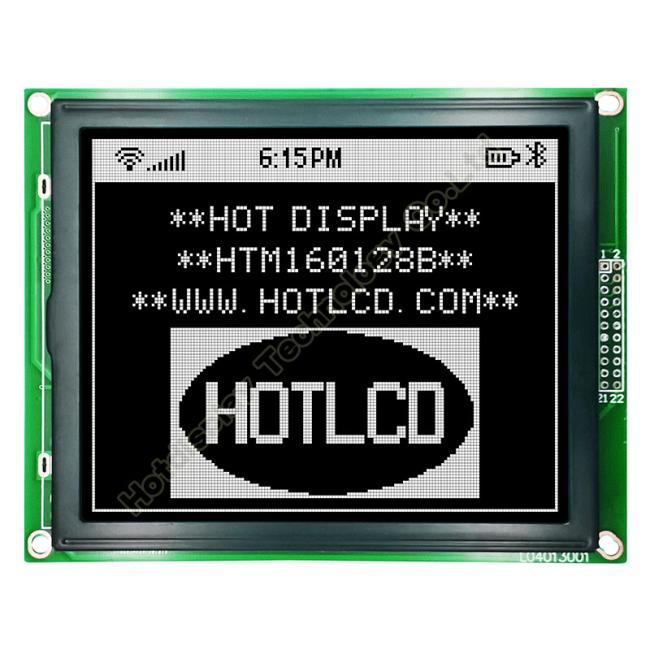

HOTLCD 160x128 graphic Liquid Crystal Display module shows white pixels on a blue background. This transmissive LCD Display requires a backlight for visibility and offers a wide operating temperature range from -20 to 70 degrees Celsius. This HTM160128B display includes built-in negative voltage supply as well as selectable font size. It has an optimal view of 6:00, operates at 5V supply voltage and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 160*128 DOTS | ---- |
| Module dimension | 129.0(W)*102.0(H)*12.1(T)MAX | mm |
| View display area | 101.0(W) x 82.0(H) | mm |
| Dot size | 0.54(W) x 0.54(H) | mm |
| Dot pitch | 0.58(W) x 0.58(H) | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
|
Driving Method |
1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V |
|
|
Viewing direction |
6 O’CLOCK |
|
|
Display mode |
STN/ (BLUE) |
|
|
Display type |
TRANSMISSIVE / NEGATIVE |
|
|
Driver IC |
T6963C or EQUIV |
|
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 129.0x102.0x8.6 | mm |
| Viewing Area | 101.0x82.0 | mm |
| Mounting Hole | 92.76x74.2 | mm |
| Dot Pitch | 0.58x0.58 | mm |
| Dot Size | 0.54x0.54 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 5.0 | V |

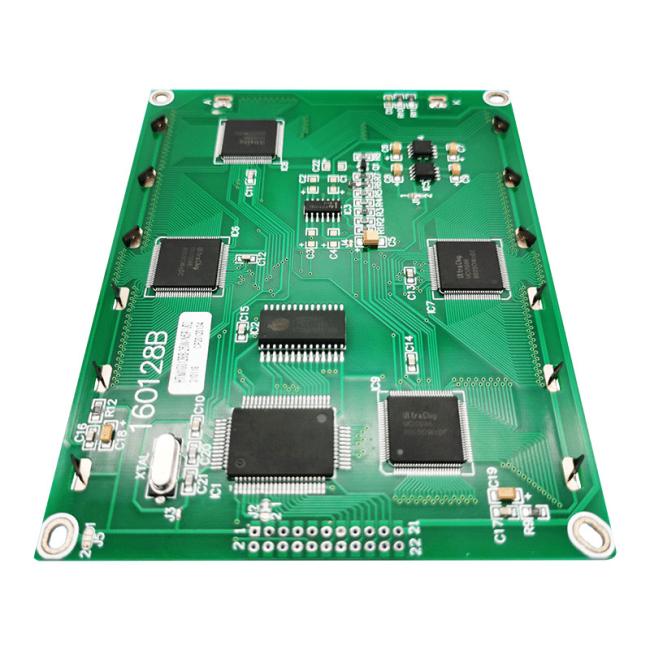

Interface Pin Function
| Pin No. | Pin Name | Function |
| 1 | FG | Frame ground |
| 2 | VSS | Ground for logic |
| 3 | VDD | Power supply for logic |
| 4 | V0 | Power supply for LCD driver (Vop=VDD-V0) |
| 5 | VEE | Negative voltage output |
| 6 | /WR | Write signal |
| 7 | /RD | Read signal |
| 8 | /CE | Chip enable |
| 9 | C/D | Command or data selection |
| 10 | HALT | Power-saving ( H : Normal ; L : stop clock operating) |
| 11 | /RES | Reset signal ( Low effective) |
| 12~19 | DB0~DB7 | Read/write signal ( H :read ; L : write) |
| 20 | FS1 | Pins for selection of font |
| 21 | BLK | Power supply for backlight+ |
| 22 | BLA | Power supply for backlight - |
Absolute Maximum Ratings
| Items | Symbol | MIN. | MAX. | Unit | Condition |
| Supply Voltage | VDD | -0.3 | +7.0 | V | VSS = 0V |
| Vlcd | -0.3 | +20.0 | V | VSS = 0V | |
| Input Voltage | VIN | -0.3 | VDD+0.3 | V | VSS = 0V |
| LED forward current | If | 0 | 100 | mA | --- |
| Operating Temperature | TOP | -20 | +70 | ℃ | --- |
| Storage Temperature | Tst | -30 | +80 | ℃ | --- |
DC Characteristics
| Items | Symbol | MIN. | TYP. | MAX. | Unit |
| Operating Voltage | VDD | 4.5 | 5.0 | 5.5 | V |
| Input High Voltage | VIH | VDD-2.2 | - | VDD | V |
| Input Low Voltage | VIL | 0 | - | 0.8 | V |
| Output High Voltage | VOH | VDD-0.3 | - | VDD | V |
| Output Low Voltage | VOL | 0 | - | 0.3 | V |
| Supply Current (BACKLIGHT) | IDD | --- | 105 | 140 | mA |
