2X16 Character COG LCD | FSTN+ Gray Display With No Backlight | ST7032I/HTG1602D
2X16 Character COG LCD | FSTN+ Gray Display with No Backlight | ST7032I/HTG1602D
HTG1602D | 16x2 Character COG | Reflective LCD | No Backlight | FSTN (+) Positive Gray Display
DESCRIPTION

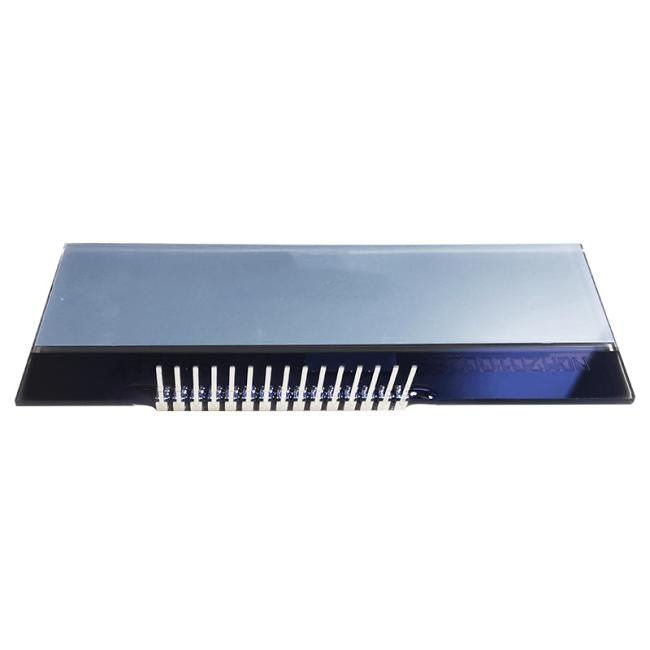

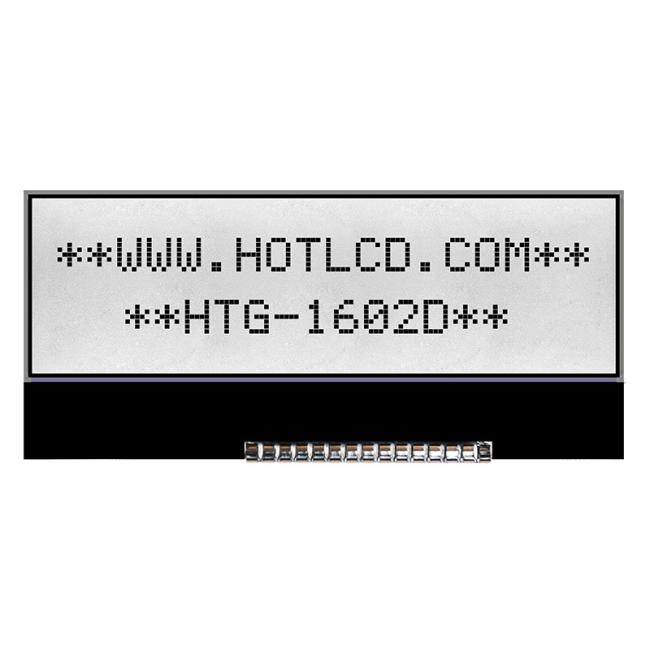

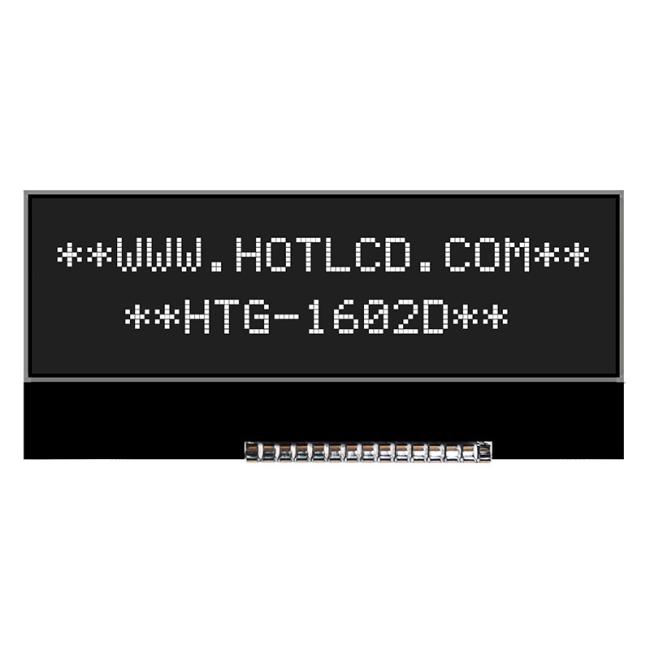

This 16x2 character Chip-On-Glass (COG) LCD shows blue pixels on a gray background. The FSTN positive LCD is reflective and does not have a backlight. As a COG display, there's no PCB and the controller/driver is directly bonded to the glass of the display. The Liquid Crystal Display offers a wide operating temperature range from -10 to 50 degrees Celsius. This HTG1602D display with built-in ST7032I controller has a 6:00 optimal view, 4-bit/ 8-bit parallel interface, operates at 3.3V supply voltage and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 2X16 DOTS | ---- |
| Module dimension | 65.0x27.7x2.8 | mm |
| View display area | 61.0x15.7 | mm |
| Dot size | 0.60x0. | mm |
| Dot pitch | 0.65x0.60 | mm |
| Operating temp | -10~50 | ℃ |
| Storage temp | -20~70 | ℃ |
|
Driving Method |
1/ 128 DUTY,1/ 12 BIAS,VOP= 15.0V |
|
|
Viewing direction |
6 O’CLOCK |
|
|
Display mode |
FSTN |
|
|
Display type |
TRANSMISSIVE / NEGATIVE |
|
|
Driver IC |
ST7032D |
|
| Backlight | WHITE | |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Module Dimension | 65.0x27.7x2.8 | mm |
| Viewing Area | 65.0x27.7x2.8 | mm |
| Mounting Hole | 56.2x10.8 | mm |
| Dot Pitch | 0.60x0.55 | mm |
| Dot Size | 0.65x0.60 | mm |
Electrical Characteristics
| Item | Symbol | Standard Value typ. |
Unit |
|---|---|---|---|
| Input Voltage | VDD | 3.3v | V |
Search Keyword: lcd 16x2, lcd 16 x 2, 16x2 lcd, 16 x 2 lcd, 16x02 lcd, lcd 16x02
