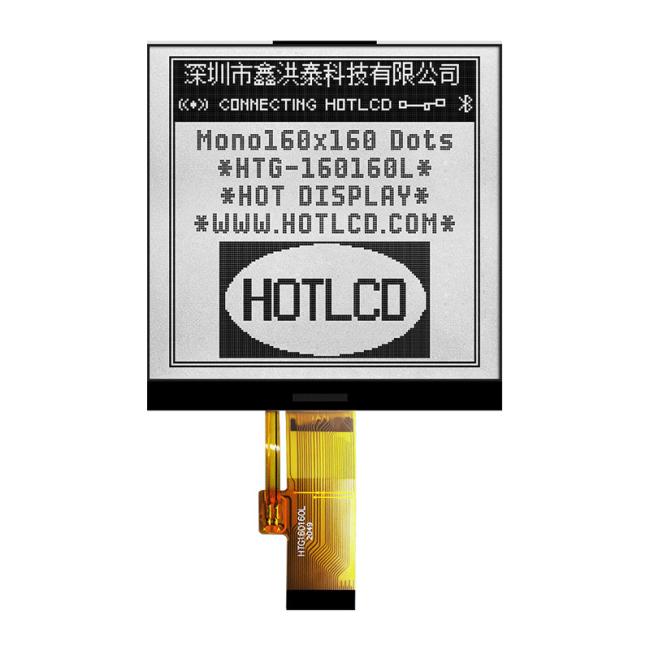

160X160 Square COG LCD Module FSTN Display With Side White Backlight HTG160160L
160X160 Graphic COG LCD UC1698 | FSTN Display With Side White Backlight/HTG160160L/In-Stock
HTG160160L-31W-34C05-V01 | Monochrome Graphic COG | 160x160 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display
HOTLCD 160x160 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG160160L-31W-34C05-V01 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.
Product parameters
| ITEM | STANDARD VALUE | UNIT |
| Number of dots | 240x120 | dots |
| Module dimension | 88x93x5.2 | mm |
| View display area | 84x81.5 | mm |
| Dot size | 0.45x0.45 | mm |
| Dot pitch | 0.47x0.47 | mm |
| Operating temp | -20~70 | ℃ |
| Storage temp | -30~80 | ℃ |
| Driving Method | 1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V | |
| Viewing direction | 6H | |
| Display mode | FSTN | |
| Display type | TRANSMISSIVE / NEGATIVE | |
| Driver IC | UC1698 | |
| Backlight |
WHITE |
|
| Product application | industrial control | |
PIN
| NO . 1 | SYMBOL BLK |
| 2 | BLA |
| 3 | VLCD |
| 4 | VS+ |
|
5 6 |
VS- VB0- |
| 7 | VB1- |
| 8 | VB1+ |
|
9 10 |
VB0+ VDD |
| 11 | VSS |
| 12 | TST4 |
| 13 | BM0 |
| 14 | CS0 |
|
15 16 |
CD RD |
| 17 | WR |
| 18 | RST |
| 19 | DB0 |
|
20 21 |
DB1 DB2 |
| 22 | DB3 |
| 23 | DB4 |
|
24 25 |
DB5 DB6 |
| 26 | DB7 |
| 27~34 | NC |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
Search keyword: 160x160 lcd, 160 x 160 lcd, lcd 160x160, lcd 160 x 160
