1.3 Inch TFT LCD | 240x240 Square Display Module

Price Negotiable

Price: Negotiable

MOQ: 2

Delivery Time: 25 days

Brand: HOTHMI

Product Description

Discover the Marvel of TFT - H013A2QQIST3N10 TFT LCD Module!

Are you on the hunt for a top - notch TFT LCD module that combines high - performance, reliability, and versatility? Look no further than the TFT - H013A2QQIST3N10 from Shenzhen Hot Display Technology Co.,Ltd! Here are its amazing selling points:

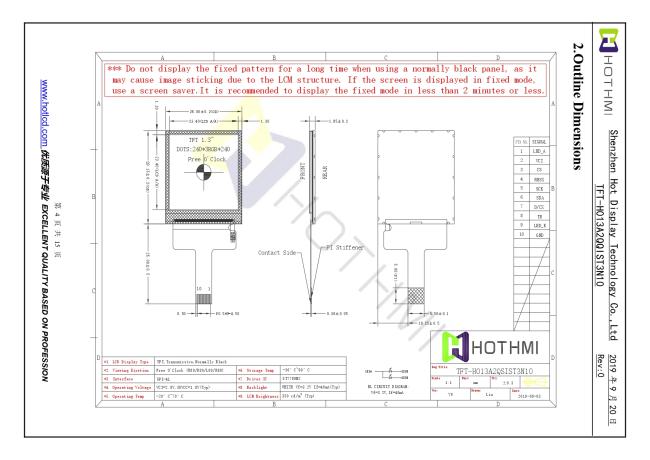

1.Compact and Precise Design: With a display size of 1.3", it has a pixel resolution of 240(H)x3(RGB)*240(V), offering and vivid visuals. The active area measures 23.40(H)×23.40(V) mm, and the overall outline dimension is 26.00(H)×29.15×1.95(V) mm, making it perfect for space - constrained applications.

2.Flexible Viewing Angle: The viewing direction is Free O'clock, allowing users to view the screen from various angles without compromising on image quality. Whether you're looking at it from the side, top, or bottom, you'll enjoy a clear and consistent visual experience.

3.Efficient Interface: Equipped with an SPI 4L interface, it ensures fast and stable data transfer. This makes it easy to integrate with different microcontrollers, enabling seamless communication and quick response times.

4.Reliable Driver IC: Powered by the ST7789H2 driver IC, the module operates at a stable VCI of 2.8V. This combination guarantees smooth display performance, accurate color representation, and efficient power management.

5.Bright and Uniform Backlight: The white LED backlight provides a luminance of 350 cd/㎡ (Typ) when the forward current is 40mA. It ensures excellent visibility even in low - light environments, and the uniform lighting across the screen enhances the overall viewing experience.

6.Wide Operating Temperature Range: It can operate flawlessly in the temperature range of - 20~70℃ and be stored in - 30~80℃. This wide temperature tolerance makes it suitable for a variety of applications, from outdoor devices to industrial equipment.

7.Impressive Optical Performance:

◦High contrast ratio of 800 (Typ) at Θ = 0°, ensuring clear differentiation between light and dark areas for vivid images.

◦A color gamut of 50% (Typ) offers a rich and vibrant color palette, making colors look more realistic.

◦Fast response time of 30 ms (Typ) (Tr + Tf) ensures smooth transitions and reduces motion blur, ideal for applications with dynamic content.

8.Rigorous Reliability Testing:

◦Passed multiple reliability tests such as high - temperature operation (60 ℃; 120hrs), high - temperature storage (70 ℃; 120hrs), and thermal shock (-30 ℃ (0.5hr) ~ 80 ℃ (0.5hr); 100 Cycles). You can trust its long - term performance and durability.

◦Withstood electrostatic discharge (ESD) tests (Contact ± 4KV, Air: ± 8KV), ensuring protection against static electricity during handling and operation.

9.User - friendly Initialization and Modes: Comes with easy - to - use initialization code. It also has sleep - in and sleep - out modes, which not only save power but also extend the lifespan of the module.

10.Simple Handling Precautions: Although it requires careful handling due to its glass construction, the provided handling precautions are easy to follow. For example, avoiding strong mechanical impact and static charge, which helps users ensure the module's longevity.

General Feature:

Item	Standard Value	Unit
Display Size	1.3”	--
Number of Pixels	240(H)x3(RGB)*240(V)	--
Active Area	23.40(H) *23.40(V)	mm
Outline Dimension	26.00(H) ×29.15× 1.95(V)	mm
Viewing Direction	Free O'clock	-
Interface	SPI 4L	-
Driver IC	ST7789H2	-
Driver Condition	VCI=2.8V	V
Backlight	White LED	-
Touch Panel	No Touch Panel	-
Operation Temperature	-20~70	℃
Storage Temperature	-30~80	℃

Pin Description

Pin NO.	Symbol	Description
1	LED-A	LED Anode(+3.2V/100mA)
2	VCI	Analog Power(2.65 ~ 3.3 V)
3	CS	Chip select input pin (“Low” enable).
4	RESX	Reset Pin
5	SCK	Serial interface clock.
6	SDA	SPI interface input pin.
7	D/CX	Display data/command selection pin.
8	TE	Tearing effect signal is used to synchronize MCU to frame memorywriting. If not used, please let this pin open
9	LED-K	LED Cathode
10	GND	Ground
