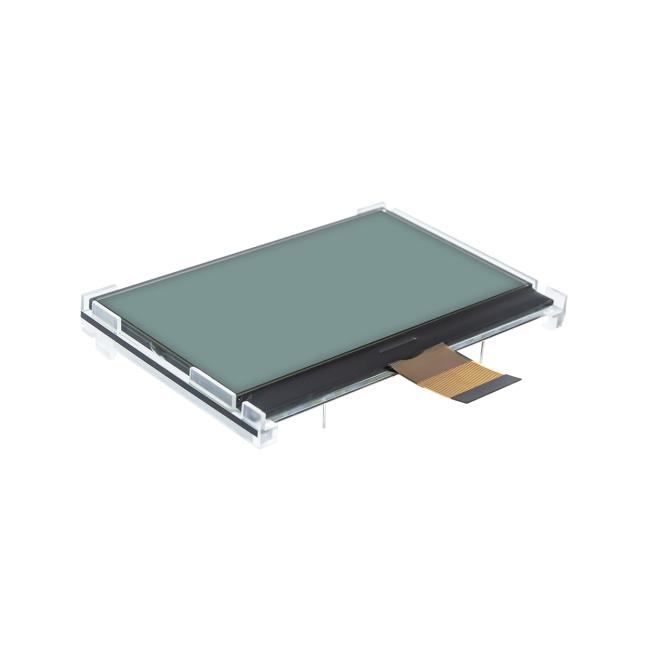

Product Details: HTG12864-125 High-Definition Dot Matrix Display Panel

Product Overview:

The HTG12864-125 is a high-precision dot matrix display panel featuring a white-blue background design. It is ideal for display applications in industrial control, instrumentation, smart home systems, and more. This product includes detailed wiring diagrams and circuit schematics, with a 5:1 scaled dot matrix view for enhanced clarity, facilitating quick understanding and implementation by engineers.

Key Features:

- High-Resolution Dot Matrix Display: 128×64 pixel resolution ensures and detailed character/graphics rendering.

- White-Blue Background: Unique color scheme improves contrast and readability.

- Comprehensive Technical Drawings: Includes panel wiring diagrams, enlarged dot matrix details (5:1 scale), and circuit schematics for easy installation and debugging.

- Industrial-Grade Reliability: Stable performance in demanding environments.

- High Compatibility: Supports multiple controller interfaces for flexible system integration.

Applications:

- Industrial control devices (e.g., PLCs, HMIs)

- Medical and testing equipment

- Smart home control panels

- Automotive display systems

- Other electronics requiring high-precision displays

Technical Specifications:

- Display Type: Dot Matrix LCD

- Resolution: 128×64 pixels

- Background Color: White-Blue

- Operating Voltage: 3.3V (customizable upon request)

- Interface: Parallel/Serial (refer to circuit diagram)

- Operating Temperature: -20°C to +70°C

Documentation Support:

The product includes detailed technical documents:

1. Panel Wiring Diagram: Clearly labeled interface definitions and connections.

2. Dot Matrix Detail View: 5:1 scaled enlargement for precise inspection.

3. Circuit Schematic: Complete driver circuit design for secondary development.
