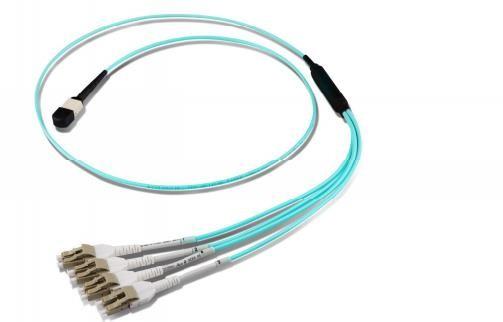

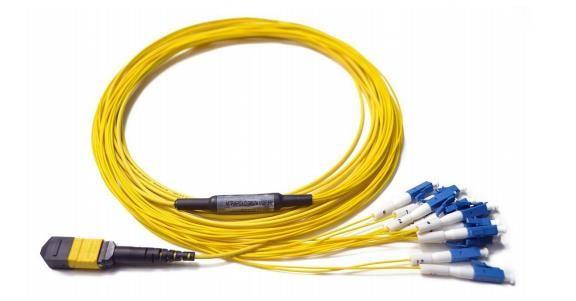

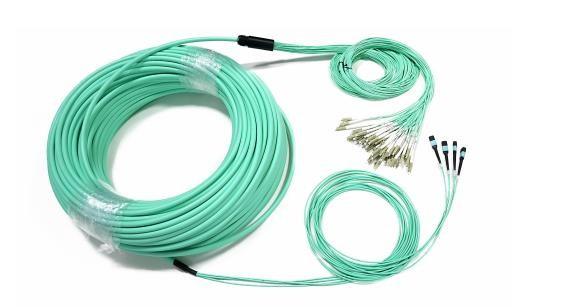

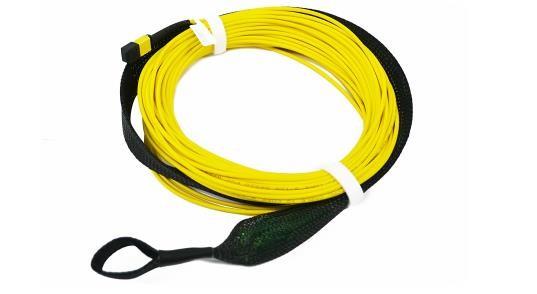

Low Loss MTP MPO Patchcord Fiber Harness 12F 24F 48F 72F Available
MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144. The Harness MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series. All of our MPO(MTP) harness cables meet IEC 1754-7 and TIA/EIA 604-5 standards.
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Characteristic
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Product Parameters
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
| Mechanical Properties | |||
| Item | Criteria | Conformance | |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) | ||
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) | ||
| Environment Conditions | ||
| Item | Criteria | Conformance |
| Operation Temperature | -40~60°C | IEC 61753-1 |
| Storage Temperature | -45~85°C | |
