Automatic 4 Head Linear Weigher Grain Rice Bean Fine Granule Packing Machine
Price:
5800USD-15130USD per set
MOQ:
One sets
Delivery Time:
10-15 working days
Brand:
BOSHI
Product Description

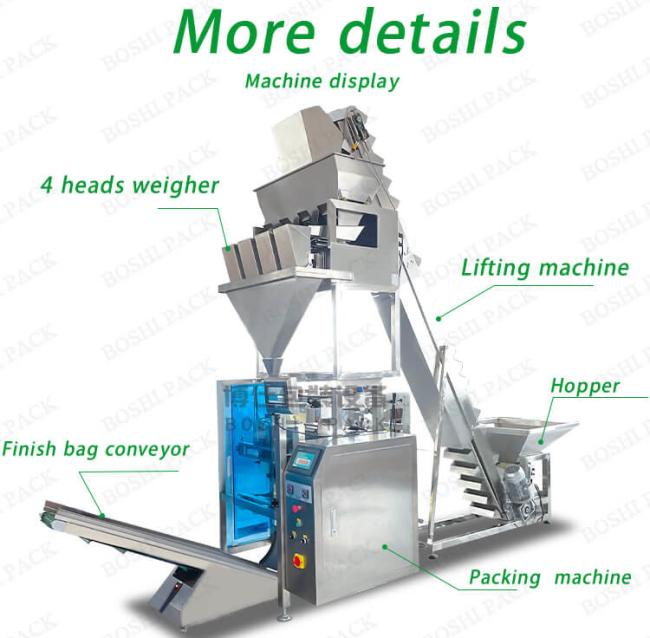

Automatic 4 Head Linear Weigher Grain Rice Bean Fine Granule Packing Machine
Applications:
Suitable for different kind of granular products, such as chips, peanut, dried fruit,popcorn,dates,coffee bean,
chips,marshmallow, sunflower seeds,beans,walnuts, pistachios, salad vegetables ,wide use in industrial product and non industrial product.

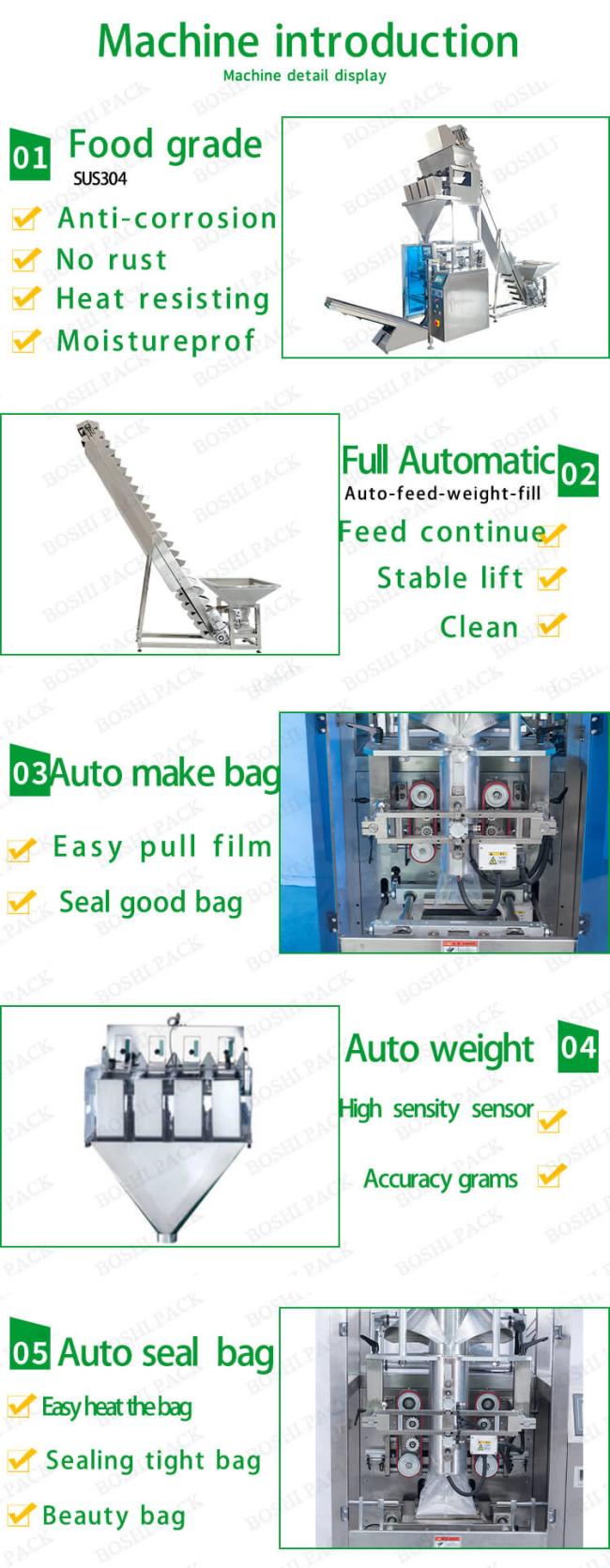

Standard Features:
1. The machine designed with stable servo film transport system, PLC Program Control, 7 inch touch screen.
Human-machine Interface of Advanced Automatic Positioning, Photoelectric Tracking, Digital Temperature Control,etc.
2. Easy operation and perfect performance. It is the first choice of food packaging industry to Improve the production
2. Easy operation and perfect performance. It is the first choice of food packaging industry to Improve the production
efficiency,reduce Labor Intensity, improve the grade of packaging equipment.
3. The machine can adopt with 2 head weigher, 4 head weigher, 10 head and 14 head weigher.
3. The machine can adopt with 2 head weigher, 4 head weigher, 10 head and 14 head weigher.
4. Customized bag former, film running smoothly and make the nice bag shape.
5. Imported servo control system, control the film drawing and bag length.
Technical parameters:
| Model | BS-420G-4 |
| Packing speed | 5-60 bags/ min |
| Support bag size | L(50-300 )*W(50-200 )mm |
| Bag type | Pillow bag(back seal) /3side seal /4 side seal |
| Film width | ≤420mm |
| Measure system | 4 heads weigher weighting |
| Measuring range (max) | 3000 ml |
| Packing accuracy | ±0.5-2.0 g |
| Film thickness range | 30-80um |
| Power | 220 V /380 V ,50 HZ/60 HZ,2.2KW |
| Air consumption | 1.0 Mpa |
| Gas consumption | 0.4 m³/ min |
| Machine material | Stainless steel SUS304 |
| Machine weight | 600 kg |
| Machine dimension | 1080*1300*1400mm |
| Applications | Suitable for granular products, such as, peanut, nuts,dried fruit,popcorn, dates, coffee bean, chips, seeds, walnuts, pistachios, screws, buckles, and etc. |
