PRODUCT INTRODUCTION
GeoMax® Geocells are strong, 3D honeycomb structures made of high-density polyethylene (HDPE) sheets that are welded together using ultrasound.
You can fill these honeycombs with sand, soil, or whatever other materials you have on hand. That makes them a really useful and affordable solution for a lot of geotechnical projects.
Whether you're dealing with driveways, highways, railroads, landscaping, landfills, parking lots, or pipelines, this innovative system is an excellent choice. The system is great because it saves a lot of time and labor by reducing project costs, minimizing environmental impact, and making installation a breeze.
GEOCELL SPECIFICATIONS
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
GEOMAX DETAILED PHOTOS
GEOCELL APPLICATIONS
 |

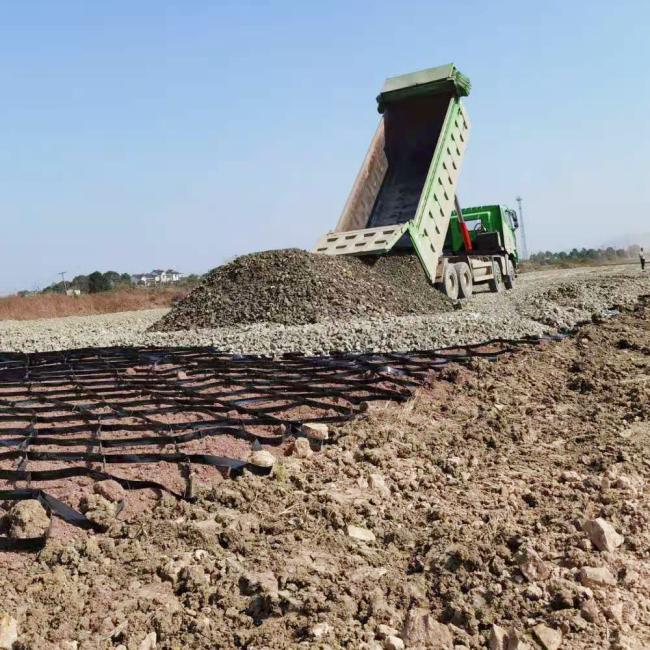

SOIL REINFORCEMENTGeomax® (Hdpe Geocell) is a possible solution to soil stabilization or soil reinforcement. It has the potential to enhance the load-bearing capacity of the pavement, thereby helping to prevent cracking. |
 |

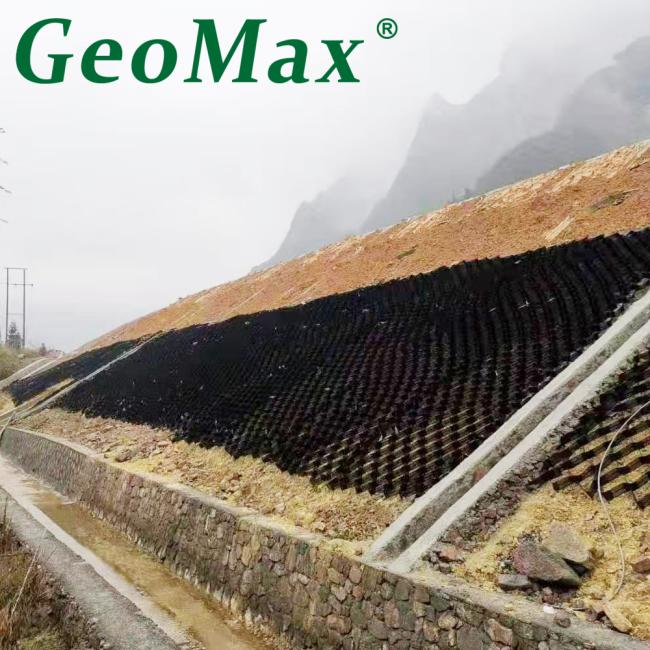

SLOPE PROTECTIONGeomax® (Hdpe Geocell) is an excellent option for slope protection or erosion control. It has been observed to have both good drainage effect and slope protection. |
 |
CHANNEL PROTECTIONGeomax® (Hdpe Geocell) has been found to offer stability and protection for channels that are exposed to erosive conditions ranging from low to high flows, whether intermittent or continuous. |
 |
RETAINING WALLSGeomax® (HDPE Geocell) has been found to offer highly permeable properties and act as a great number of planting pots, allowing rainwater to infiltrate and minimizing runoff. |
GEOCELL PRODUCT AREA
GEOMAX CERTIFICATES
PHOTO OF THE EXHIBITION
FAQ:
Q: Has Geocell passed third-party testing? What certifications does it have?
A: Products are tested by third parties (e.g., SGS, Intertek) and certified with CE, ISO9001, ISO14001, etc. Complete test reports and certification documents are available
Q: Where can Geocells be used?
A:Roads/Railways: Load distribution over weak subgrades.
Slopes: Erosion control and vegetation support.
Temporary Access Roads: Rapid deployment on soft ground.
Retaining Walls: Cost-effective alternative to gabions.
Q: Are Geocells eco-friendly?
A:Recyclable: HDPE can be repurposed.
Vegetation-Compatible: Some designs allow root penetration.
