200sqm White Polypropylene Geosynthetic Fabric 4 Ounce Non Woven Geotextile Fabric
Wanshengli brand short non woven fiber filament geotextile is made from polypropylene, which is a new special geotechnical engineering construction material. It is okay for different thickness, because short filament fabric is stiff, thick, and soft.
Due to the different material, it has 2 types:
- short non woven filament geosynthetic fabric
- non woven filament geosynthetic fabric
The short non-woven geotextile filament geosynthetic fabric fiber has resistance of high temperature up to 230℃ to guanrantee maintain structure stability, high flat drainage, high elongation under certain stress, high creep resistance and vertical permeability, so can be applied in uneven and irregular bases. Many geotechnical engineering projects can use short non-woven geotextile filament fiber as materials.
Quick Detail:
material: PP polypropylene, PET polyester
function: protection, isolation, reinforcement, drainage
thickness: 2.4mm
application: landfills, chemical plant, sewage plant
Geosynthetic Fabric Features
- Oxidation resistance
- Good flexibility
- Corrosion resistance
- Acid and alkali resisitance
- Good water permeability
- Filtration and isolation performance
| No. |
Item Index Specification |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
| 1 | Unit area mass deviation,% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| 2 | thickness, mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| 3 | Width deviation, % | -0.5 | |||||||||||
| 4 | Breaking strength, KN/M ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
| 5 | Elongation at break, % | 25-100 | |||||||||||
| 6 | CBR bursting strength,KN ≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| 7 | Equivalent aperture,O99(O35),mm | 0.07-0.2 | |||||||||||
| 8 | Vertical permeability coefficient,cm/s | KX(10 -1 -10 -3 ) | K=1.0-9.9 | ||||||||||
| 9 | Tear strength 3,KN ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.4 | 0.6 | Vertical and horizontal |
Applications

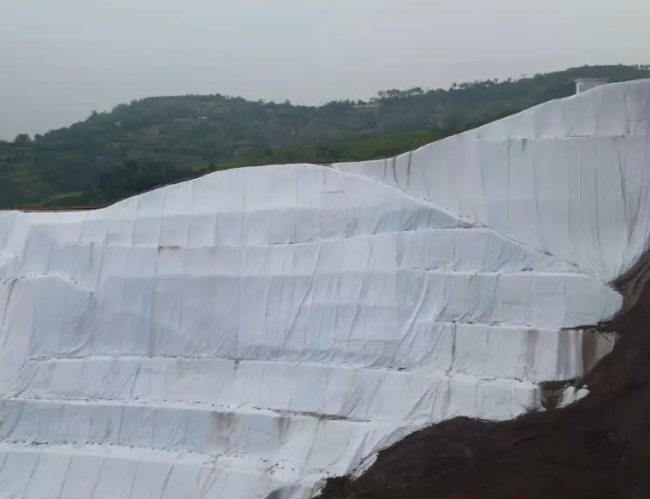

- Reinforcement and drainage for soil slope,retaining wall.
- Be the isolation layer and for dam layer, slope protection, road and airport runway.
- Reinforcement and drainage for asphalt pavement, cement concrete pavement and subgrade enhancement. Both rigid and flexible road pavement applicable.
- Soft foundation treatment/ soft soil improvement of port project; the reinforcement and drainage for beach dike, seaport wharf and seawall/bulwark.
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. I t can gurantee onvenient unloading and protecting product.
