935×275×350mm Textile Test Equipment 90times/Min Wear Resistant

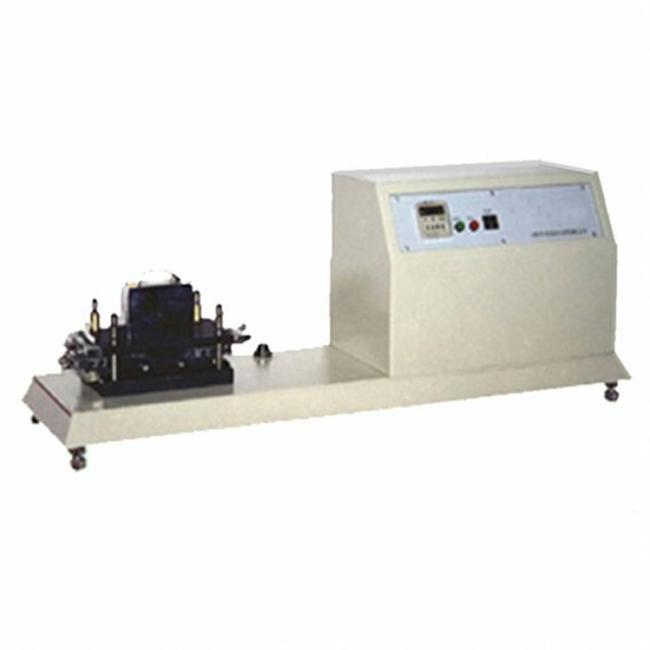

Textile Test Equipment Geotextiles Wear Tester HZ-8005 GB/T17636 435×575×1600(Mm)
Equipment description:
The instrument used to determine the woven geotextile, nonwoven geotextiles and related products, anti-wear properties. Principle: The sample fixed on the platform, the provisions of the pressure and friction in the action condition, the surface characteristics of the abrasive with the provisions of with friction, the final test samples before and after the tensile strength of friction, in order to describe the percentage of strength loss of wear resistance of the specimen.
To meet the standard:
GB/T17636 "and geotextile related products - Determination of wear resistance of abrasive cloth / slider Act."
Technical parameter:
| Model | HZ-8005 |
| Up plate | 50mm×200mm |
| Down plate-dimension | 50mm×200mm |
| Stroke | 25±1mm |
| Frequency | 90times/min |
| Bear the weight of the sample | 6±0.01(kg) |
| Friction number | 2 – 99999times, set according to the requirement |
| Outside dimension | 935×275×350(mm) |
