Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Price:
USD 1000~6000/per set
MOQ:
1
Delivery Time:
7 days
Brand:
lixian
Product Description

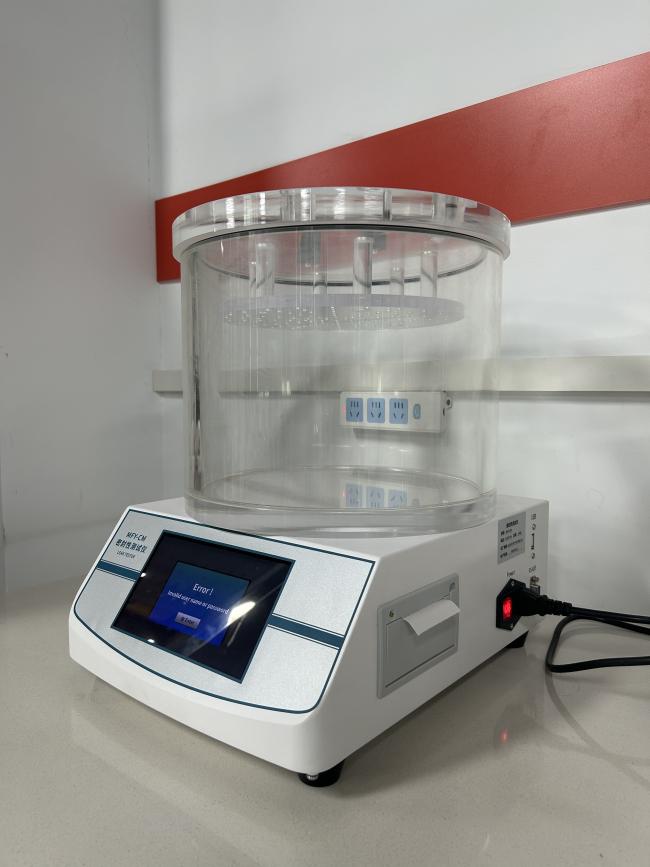

Intelligent Sealing Tester Equipment Meeting Test Standard ASTM D3078 For Plastic Flexible Packaging
Intelligent sealing tester is professionally suitable for product sealing tests. Through the test, the sealing process and sealing performance of flexible packaging can be effectively compared and evaluated. It is used in food, plastic flexible packaging, wet wipes, pharmaceuticals, daily chemical and other industries. Ideal seal test instrument.
Intelligent sealing tester Test standard
The instrument complies with many national and international standards:
ASTM D3078,
YBB00112002-2015,
YBB00122002-2015,
YBB00262002-2015
Product features
1.7-inch color touch screen, more convenient humanized operation
2.Two test modes of pressure holding and pressure increasing to meet the testing needs of different materials
3.Fully automatic control, automatic completion of pressure extraction, pressure holding, pressure replenishment, timing, backflush, printing, saving, and data upload
4.Equipped with a micro printer, USB data interface, supports PC software measurement and control operation, and mbar and kpa units are interchangeable.
5.Automatically save historical test records, local query, and can be exported to EXCEL format for saving
6.User hierarchical authority settings to meet GMP requirements, test record auditing and tracking functions
7.Test results are uploaded to the cloud server for storage, and can be browsed anywhere in the world with a network
8.Local data and cloud data are backed up double to ensure that data will not be lost
9.Chinese and English bilingual options to facilitate customer language switching
Basic application
Applicable to the overall sealing test of glass bottles, tubes, cans and boxes
Applicable to the overall sealing test of plastic bottles, tubes, cans and boxes
Applicable to the overall sealing test of metal bottles, tubes, cans and boxes
Applicable to the sealing test of paper-plastic composite bags and box materials
Extended application
Applicable to the sealing test of pen refills
Applicable to the sealing test of electronic components
Applicable to the sealing test of medical devices
Specification
|
Model Number
|
HZ-MFY-CM
|
|
Screen size
|
7-inch touch screen
|
|
Vacuum degree
|
0 ~ -90kPa
|
|
Precision
|
0.5 grade
|
|
Negative pressure generation method
|
Vacuum generator
|
|
Effective size of vacuum chamber
|
270 mm *210 mm (H) (standard)
|
|
Air source pressure
|
0.7MPa
|
|
Air source interface
|
6 mm polyurethane tube
|
|
Overall dimensions
|
370 mm (L)* 300 mm (B) *450 mm (H)
|
|
Power supply
|
AC 220 V 50 Hz
|
|
Net weight
|
15 kg
|
