13mm IP20 LED Linear Light Corner Recessed Trimless Led Aluminium Profile
13mm IP20 LED Linear Light Corner Recessed Trimless Led Aluminium Profile
Product Description
1. Standard Recessed Plaster In Aluminium Channel, 2 Metre Length
2. Trimless profiles for recessing into plastered walls and ceilings for an incredible seamless diffused light output.
3. Designed to plaster in to plaster board for an beautiful seamless lighting effect. Available in 2 or custom metered lengths.

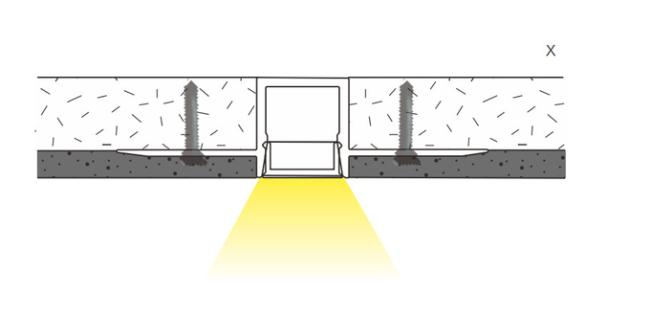

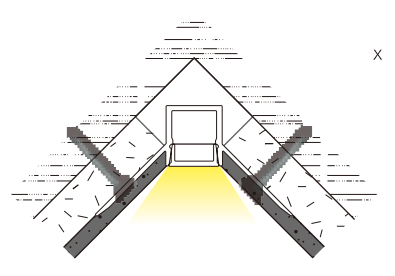

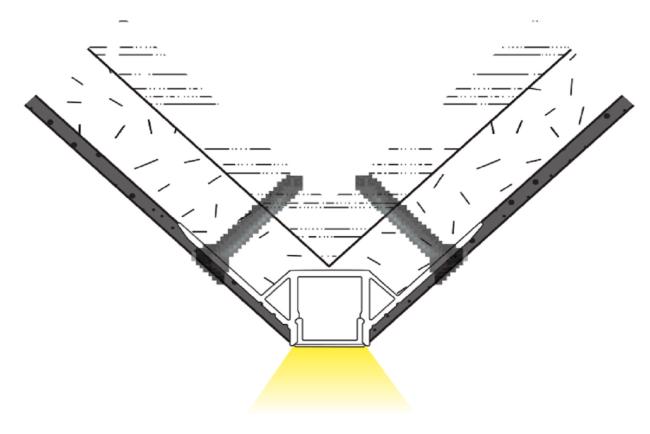

4. Simply screw the profile into drywall and plaster over then add the diffuser
Product Parameter
| Item | GR1314A ; GR1314B ; GR1314C |
| Installation Mode | Trimless recessed |

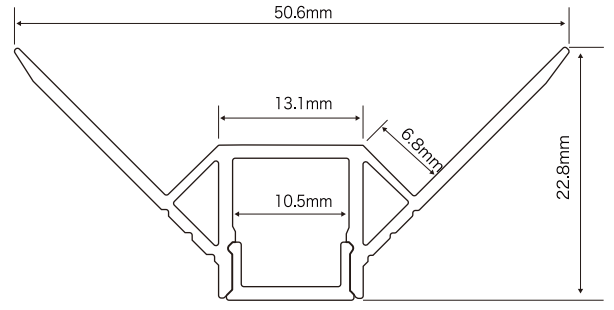

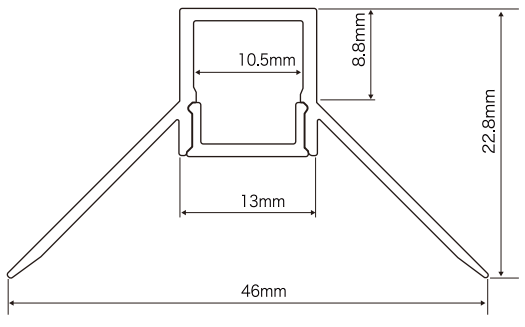

| Size(mm) | 13(W)*14(H)*2000(L) |
| Profile Material | AL6063-T5 |
| Surface Technics | Anodizing |
| Standard Colour | Silver |
| Optional Colour | Black Silver White |
| Diffuser Material | PC |
| Light Transmittance | 70% |
| End Caps | PC(2pcs) |
| Recommed Light Source | |||||||
| Model | CRI | Lumens | Voltage | Typ.power | Size | Leds/m | Cutting Unit |
| S8120-24V-8mm | >90 | 1397lm/m | 24V | 14.4w/m | 5000*8*1.8mm | 120Leds | 50mm/6leds |

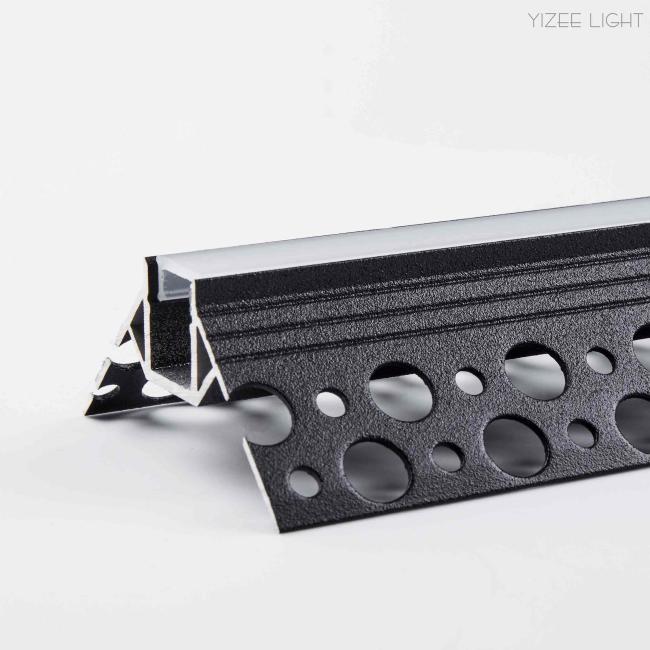

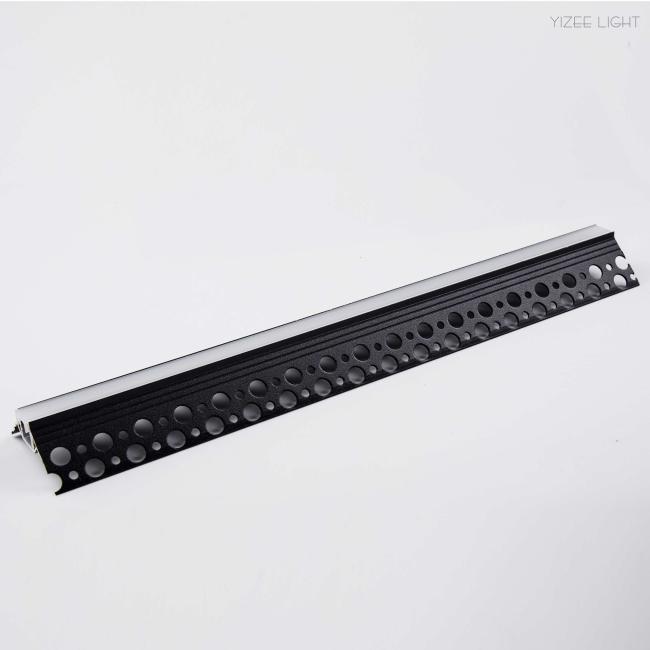

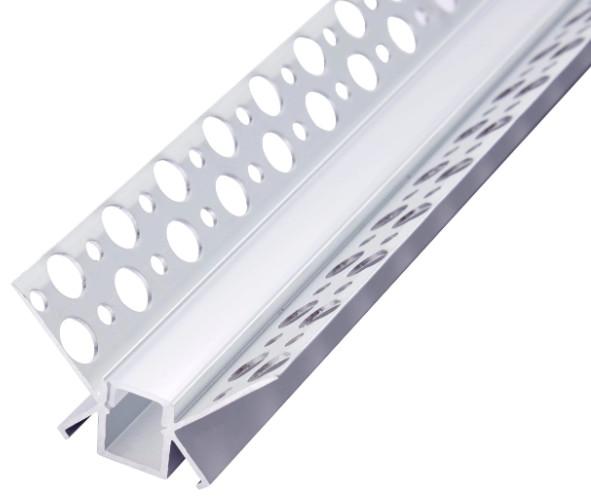

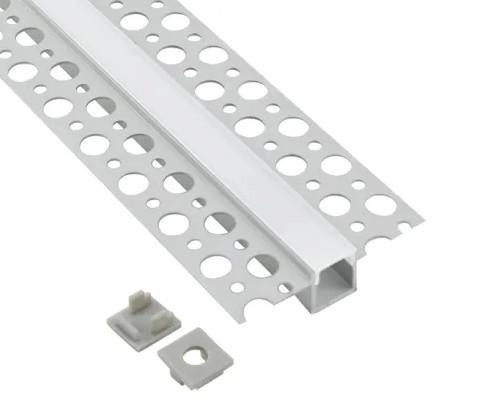

Product Image
- GR1314A
- GR1314B
- GR1314C
FAQ
Q1. What is the length in stock ?
A1: 2Meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3. What is the material of diffuser ?
A3: PC or PMMA
Q4: Can you company help to assembly the led strip and driver ?
A4: Yes, we provide one-stop assembly service.
Q5: Can we have the profile in other color ?
A5: Yes, power coating and anodizing available
Q6: What is the delivery time ?
A6: 5-15 working days according to your order volume.
Q7: Is free sample available for quality approve ?
A7: Yes, free sample in short piece is available.
Why Choose US?
We hold a large inventory of our LED profiles in our warehouse and most orders are shipped in 3-10 business days.
High quality double anodized aluminum,all products are released after meeting quality management
Customers receive technical support and a dedicated sales person to speak with. We are a business you can trust with a great reputation of customer service and superior products.
