Type 1 & Type 2 Portable EV Charger Output Voltage 110V-450V
Type 1 & Type 2 Portable EV Charger Compatible With All Electric Vehicles,Output Voltage 110V-450V
Product Description:
FAST CHARGING – Utilizing the standard J1772 charging protocol, this charging cable is compatible with all electric cars and plug-in hybrids.
HIGH QUALITY – The charging station is rugged and robust, equipped with overvoltage, overheat and overcurrent protection. The indicating light on the charging station helps to show the various stages of charging and to warn of possible errors
CERTIFICATION – CE️ , UL️ , FCC , UN,along with other built in safety features such as, lightning-proof, leakage protection, overvoltage, overheat, overcurrent protection, UL94V-0 rating flame resistance, IP65 rating waterproof and are safe to use outdoors for snow, rain, dust
ADJUSTABLE AMPERAGE – 40A, 32A, 24A, 16A. EASY TO INSTALL – Save hundreds of dollars on installation : just install a simple outlet and you are ready to plug .
Features:
- IP Rating: IP65
- Operating tempeature: -25℃ to +55℃
- Length: 5 meters
- Insulation resistance: > 1000MD (DC500V)
- Terminal temperature rise: < 50K
- Housing Fire Rating:UL94V-0

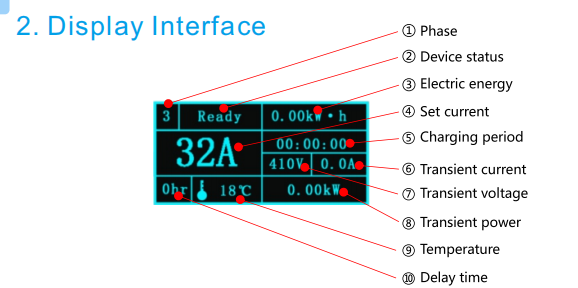

Display Interface:
Device status:
| Devicestatus | Indicator/color | Description |
| Ready | Always blue | The wall side plug is plugged into the power supply but the EVconnector is disconnected. |
| Connect | Blink blue | The wall side plug is plugged into the power supply and the EVconnector is connected. |
| Charge | Cycle blink blue | The device is charging |
| NoNet0/1* | Any | Bluetooth is not ready. |
| NoNet2* | Any | Bluetooth is waiting for connect. |
| Done* | Any | Bluetooth is connected. |

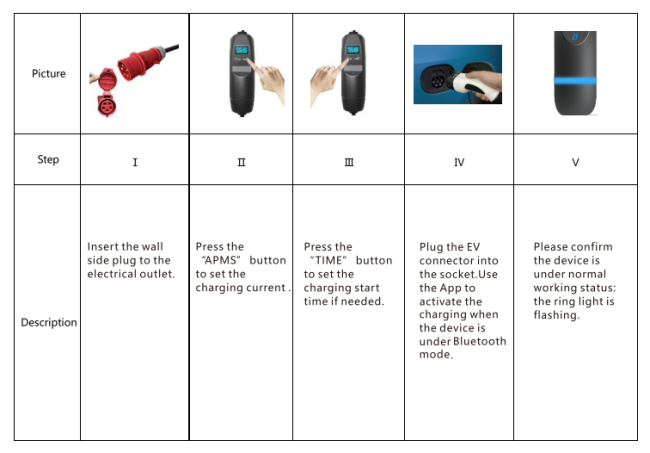

EV Charging Instruction:
1.Insert the wall side plug to the electrical outlet.
2.Press the“APMS”button to set the charging current
3.Press theTIME” button to set the charging start time if needed.
4.Plug the EV connector into the socket.Use the App to activate the charging when the device is under Bluetooth mode.
5.Please confirm the device is under normal working status:the ring light is flashing.
Picture:
Customizable Plugs
au, cee, schuko, uk, nema 14-50, etc
type 1, type 2, type GBT

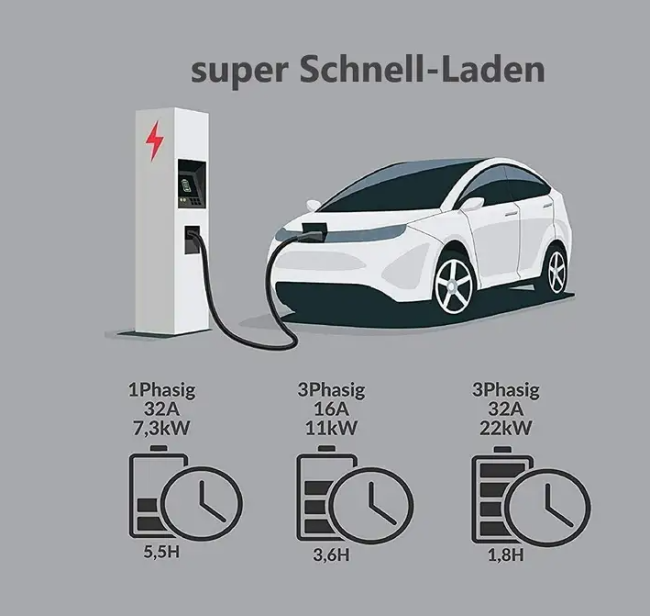

1Phasig 32A 7.3kW
3Phasig 16A 11kW
3Phasig 32A 22kW
Compatibility
between vehicles TYPE 2 to CEE
