16/32A Portable Charging Station Type 2 GB/T Plug 3.5kW 7kW Smart Home EV Charger
16/32 Amp Portable Charging Station Type 2 GB/T Plug 3.5kW 7kW Smart EV Home Car Charger for Electric Car
parameters
| Basic Data | |||

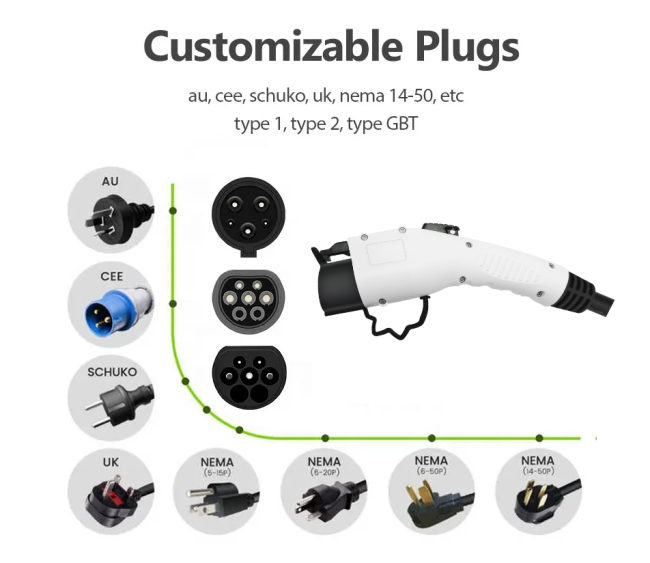

| Charging Plug / Connector | Type 2/type1 | Power side plug | customizable |
| Input voltage | 110V-480V AC | Output voltage | 110V-480V AC |
| Output current | 6-32A adjustable | Max. output power | 3.5KW/7KW/11KW/22KW |
| Input frequency | 50-60Hz | Cable length | 5m / customized |
| Operating temperature | -25°C~+50°C | Altitude | <2000m |
| Function and Accessory | |||
| WIFI/4G | NO | LED Indicator light | NO |

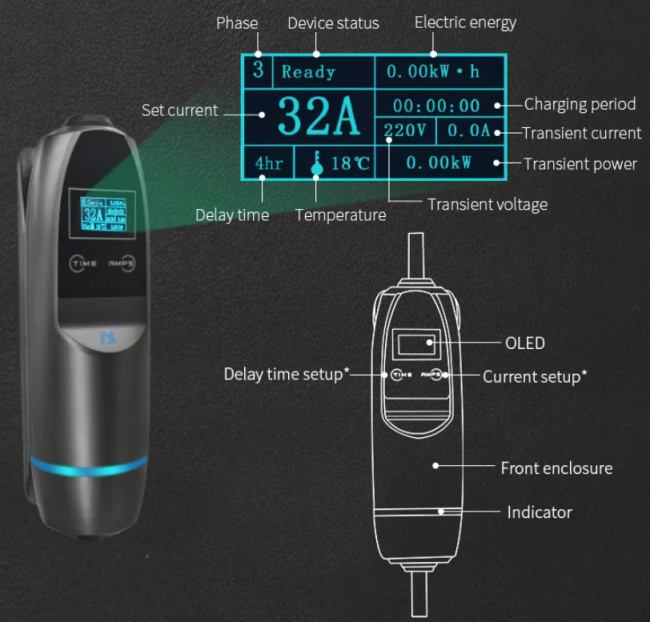

| Intelligent power adjustment | YES | LCD Screen | YES |
| RCD | TYPE A | Timing Function | YES |
| Protection | |||

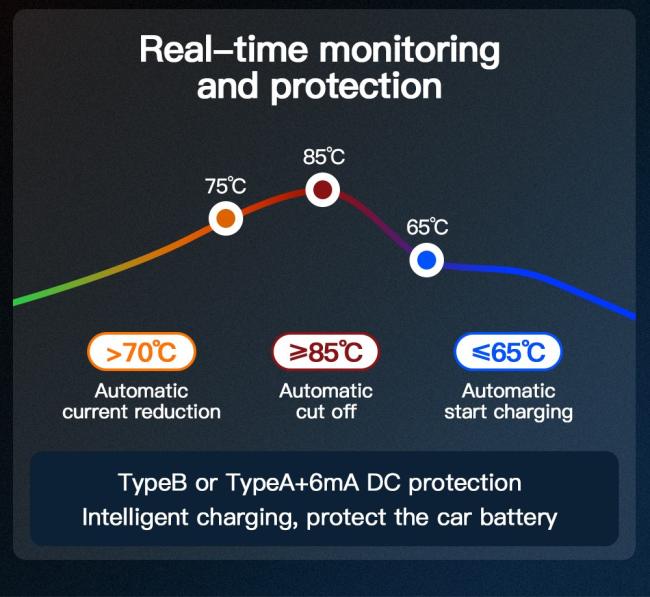

| Temperature Protection | YES | Leakage Protection | YES |
| Package | |||
| Dimension (W/H/D) | 199.2mmx86.7mmx57.8mm | Weight | 4KG |
| Packing Methord | Color box | ||
| Guarantee | |||
| Warranty | 13 months | Certificate | CE ROHS |
FAQ
Q1. What is your sample policy?
A1. We can supply the sample within 7 days, but customer need to pay the sample cost and the courier cost.Of course, if you are an agent, you can contact our customer service to obtain more sample discounts
Q2 .Can I put my brand logo on charger?
A2.Yes, we support OEM and ODM production. We can put your trademark on the ev charger box.
Q3. Does your products have quality certification? How long is the warranty time?
A3.We have a very strict quality controlling system which promises the goods we produced are always of the best quality. Our EV charging products passes with CE&TUV certifications. All products FREE warranty within 13 month.
Q4. How can we guarantee quality?
A4. We always conduct a pre-production sample before mass production and 100% Inspection before shipment
