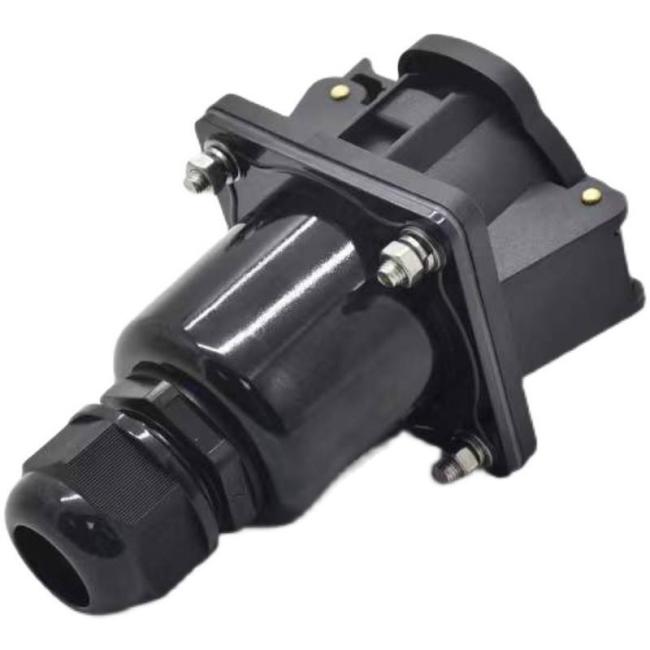

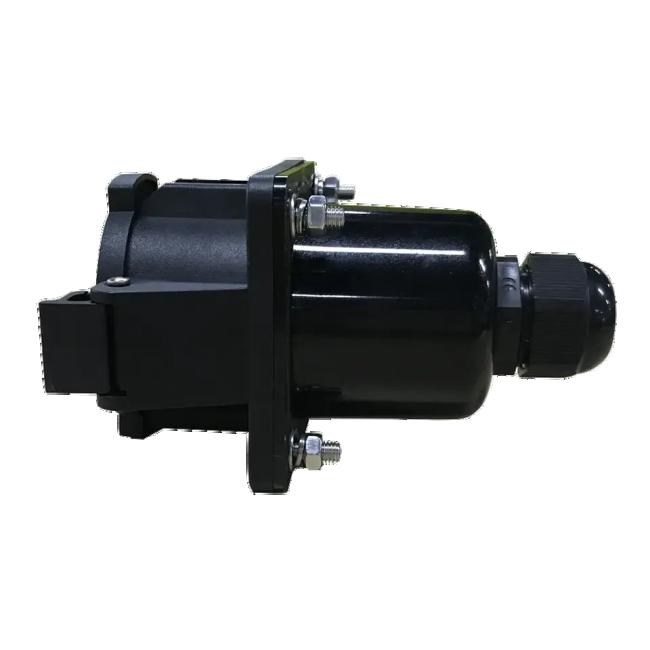

Product Description:

Contact Pin: Crafted from copper alloy and available with a choice of silver or nickel plating for enhanced conductivity and durability.

Sealing Gasket: Designed with a sealing gasket made of either rubber or silicone rubber to ensure a reliable and secure seal, protecting against moisture and contaminants.

Mechanical Durability: Demonstrates remarkable mechanical durability, with a no-load plug life exceeding 10,000 cycles.

Resilience to External Forces: Can withstand external forces, such as a 1-meter drop and pressures equivalent to 2 tons of a vehicle running over it without damage.

Insertion and Extraction Ease: Requires an insertion and extraction force of less than 100 Newtons, ensuring ease of use and convenience.

Electrical Specifications:

• Rated Current: Available in multiple configurations, including 16A, 32A, 40A, and 50A, accommodating a range of electrical needs.
• Rated Voltage: Rated for 240V applications, ensuring safe and reliable electrical connections.
• Insulation Resistance: Exhibits excellent insulation resistance, surpassing 1000 megohms (MΩ) at DC500V.
• Pins Temperature: Maintains pins at a temperature below 50 Kelvin (K) during operation.
• Withstand Voltage: Withstands high voltage levels, up to 2500V, to ensure electrical safety.
• Contact Impedance: Achieves a maximum contact impedance of 0.5 milliohms (mΩ), guaranteeing efficient electrical conductivity.

Environmental Performance:

• Temperature Range: Operates reliably within a temperature range spanning from -30°C to +50°C, suitable for various environmental conditions.

Technical Parameters:

Packing and Shipping:

Filling material: Sufficient filling material, such as foam plastic, bubble wrap or other cushioning materials, should be added inside the case to absorb shock and vibration during transportation.
