Medical Imaging USB Video Recording Full HD Endoscope Camera for Otoscope Laparoscopy
Price:
Negotiable
MOQ:
1 SET
Delivery Time:
30 Days
Brand:
DAJING
Product Description

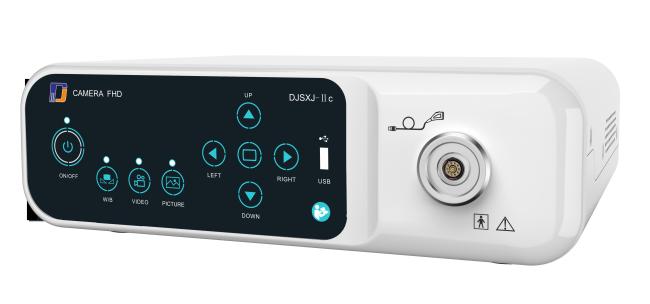

DJSXJ-IIc Full HD Endoscope Camera
1080P Medical Endoscope Camera includes camera control unit, camera head and optical adapter.
(Zoom adapter is optional.)
Our Full HD endoscope camera system, the perfect solution for high-quality surgical imaging. This system features 1920(H) x 1080(V) effective pixels ensuring every surgical procedure is captured in full HD for clear visualization and precision. With surgical definition, you can perform your duties with ease, knowing that you are fully equipped to deliver exceptional quality care to your patients.
Features
1. Recording function: meet the needs of clinical teaching
2. Delicate endoscope Images, Richer color gamut, FPGA image processing algorithms.
3. Stronger noise reduction, sharpening, brightness, contrast and extinction functions.
4. SHADING Fuction: to enhance the vascular, enable doctors to see clearer
5. The ergonomic design and light weight of camera handle effectively help reduce the fatigue of doctors during long term operation.

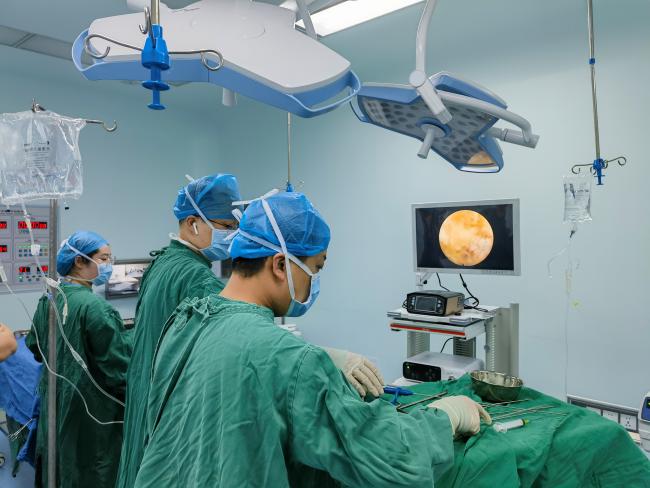

Applications
Widely used in hysteroscopy, laparoscopy, proctoscopy, arthroscopy, ENT, otolaryngology, urology, gynecology, ophthalmology, plastic surgery, cystoscopy, prostate surgery hernia repair, appendectomy, colectomy, etc.
| Image Sensor | 1/1.9'' Sony IMX185 CMOS Sensor |
| Unit Cell Size | 3.75 umx3.75 um |
| Effective Pixels | 1920(H) x 1080(V) |
| Resolution | 1000TVL |
| Photometry | Average, peak and area photometry |
| Exposure | Auto/Manual |
| S/N | >54dB |
| Image Gamma | 0.45, 0.55, 0.65, 0.75 |
| Shutter | Auto range 1/50-1/4000 |
| AGC | 0-20dB Adjustable |
| Lens Mount | C-Mount |
| Scanning Mode | Progressive |
| Illumination Ref | 3000k-8000k |
| Min.Sensitivity | 20LxF1.4 |
| Waterproof | Camera Head IPX7 waterproof |
| Transmission | SMPTE 424M 3G-SDI, 75Ω |
| Output Signal | HDMI, DVI, SDI, VGA(720P 60HZ, 1080P 60 HZ, 1024 X 768 60Hz , 1920X1200 60Hz, Video(480P or 480I) |
| Recording Function | Support U disk or mobile hard disk for 1080P recording |
| Video Storage Format | MP4 format for H.264/H.265 ENCODING STORAGE |
| White Balance | Manual |
| Language | Chinese,English |
| Handle Button | Picture, Video, White balance |
| Working Temperature | 0℃ ~+40℃ |
| Power Supply | AC100-240V 50/60 HZ |
| Size | Handle:32mm x 32mm x80mm; Cable:3m; Control Unit: 360mm x 285mm x 120mm |
| Weight | 4KG |
