Expanded 304 316 Stainless Steel Rope Wire Mesh 200x200mm High Toughness

Hand Woven Expanded 304 316 Stainless Steel Wire Rope Fencing

304 316 Stainless Steel Wire Rope Fencing Information:

Stainless steel inter-woven netting also named stainless steel knotted mesh ,zoo mesh,zoo netting,animal enclosure wire netting,rope netting,bird protective netting.The stainless steel woven netting all made by stainless steel cable.
The raw material of the stainless steel cable is stainless steel304,316,316L,etc.Galvanizing wire cable is also available.The cable can be do black or other color.

Technical Info​ Of Stainless Steel Rope Fencing :

Stainless steel wire rope fencing  is assembed by seamless ferrules and stainlesssteel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle).
Rope diameter:1.0 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.

The cable structure is 7*7 or 7*19.
Feature of inter-woven cable netting:All the mesh panel is woven by hand.And the mesh is weave in a specifical way to make the cable go through another cable.So it is tight and strong.

Package and Delivery :

•  Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

•  Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.

• As customer's requirements

Main Case Of the stainless steel wire rope fencing:

Mesh Details:

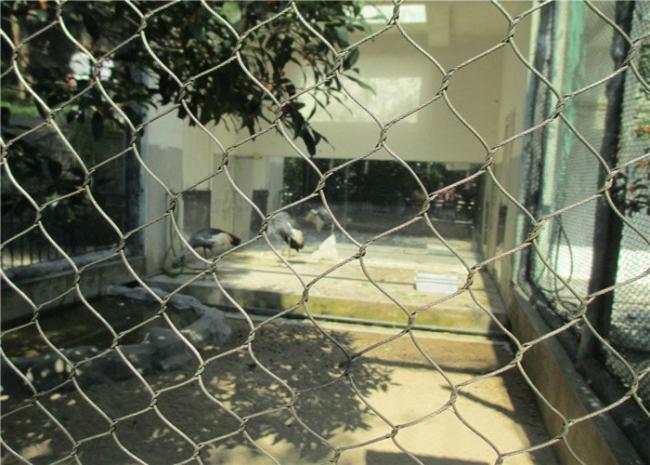

Aviary mesh of Hebei Zoo

Material :stainless steel 316

Cable diameter: 1.6mm (7*7)

Hole Aperture:40*70

Normal Break:676 Ibs

Advantage of the stainless steel Wire Rope Fencing:

The main benefit stainless steel wire rope fencing provides for zoo enclosures, however, is the filigreed structure that minimizes the viewing obstruction caused by the unavoidable safety barrier. This effect is particularly impressive at Temaiken Zoo in Buenos Aires, where wire cable net has been used to build huge, walk through aviaries. Strung between steel arches that are up to 12 meters high, the mesh is barely visible when looking up to the sky. The benefits of transparency, however, are not limited to visitors to the zoo, now able to enjoy even better views of their darlings.

1.  The netting is clipped to the cable.
2.  The mesh Hole size and diameter can be modified.
3.  It can be made to customer orders and statically tested – especially suitable for facades.
4.  High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5.  Anti-corrosive, resist the rust, can be repeated use.
6.  Resists chewing by rodents and other pests (tensile strength approximately 100-110,000PSI)

How to place the order ?

• Rope diameter and mesh hole size : such as 1.2mmx25x25mm,2.0mmx60x60mm etc
• Opening orientation : H or V
• The height and length per piece
• Drawing is necessary if available
• Quantity
• When we get your confirmations, then we will be able to offer our exact price timely.
