316 Stainless Steel Balustrade Wire Mesh 1.5mm 60x60mm Customized Size

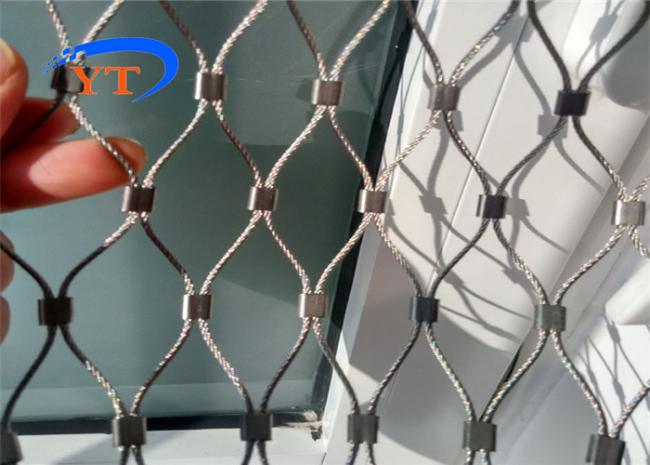

High Grade Ferruled Stainless Steel Balustrade Rope Mesh
Stainless Steel Balustrade Rope Mesh Detailed Introductions:
The stainless steel rope mesh, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.
Ferruled Stainless Steel Balustrade Rope Mesh Specifications :
Wire Rope Mesh Details:
- The stainless steel wire rope diameter:1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm
- Mesh Aperture:25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,customized
- The wire rope structure:7x7,7x19
- The breaking load (lbs):270 to 1600
Mesh type:Inter-woven type (Sleeveless Webnet)and Ferrule Type (Stainless steel ferrule)
Ferruled Stainless steel Rope Mesh(Ferruled Type) | |||||
| Item | Diameter | Mesh Opening Size | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
What need to know for design ?
316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.
Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.
Directions Of the Mesh Aperture :
There are two kinds of directions for the mesh aperture,one is horizontal the other is vertical.You can choose anyone you prefer.
Rope Structure:
Stainless Steel Rope Mesh Application :
The Stainless steel cable webnet made by Yuntong company is a vibrant, premium-quality product made from the stainless AISI 316 material group: the mesh aperture W x H (variable from very tight to very wide), the wire-rope diameter (1.2 mm, 1.5 mm, 2.0 mm and 3.0 mm) determine fucntion and aesthetics.
Packing And Delivery Details :
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
As customer's requirements
Our Services:
Stainless steel rope mesh is customizable to in widths and length to suit the place, where will you install the cable mesh.
Diagonal and irregular shapes can also be supplied.
Mesh Aperture is from 25mm x 25mm to 200mm x 200mm
Wire Diameter is from 1.2mm to 4.0mm.
