AISI 316 Stainless Cable Mesh Balustrade Safety Netting Long Service Life
Inox Cable Railing Balustrade Fence Panels Stainless Steel Rope Wire Mesh
Stainless Steel Rope Wire Mesh Description:
The stainless steel wire cable net, especially the ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems.
Stainless steel Wire rope mesh products have various specifications suitable for different environments. We will recommend the wire rope diameter, mesh hole and installation suggestions suitable for each kind of plant according to the different requirements of customers.
Flexible Stainless Steel Wire Cable Net Specifications :
Mesh Opening :25 x 43mm to 200 x 346 mm
Material:stainless steel 304, 304L, 316, 316L
Wire Rope Construction: 7x7 and 7x19
Wire Rope Diameter: 1/8", 3/32", 1/16", and 3/64"
Mesh Aperture: 1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
|
Stainless Steel Wire Cable Net |
|||||
| Item | Cable Diameter | Mesh Aperture | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
Stainless Steel Rope Wire Mesh Details:

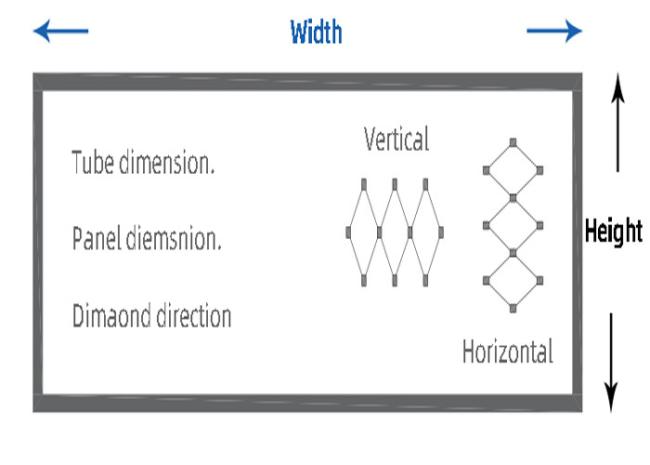

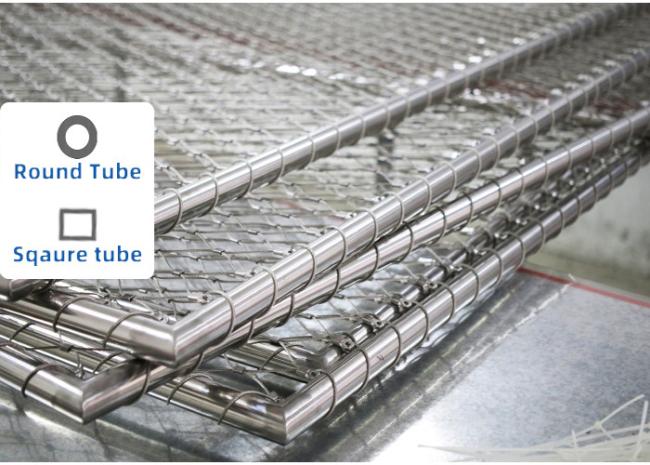

Frame For Stainless Steel Rope Wire Mesh:
Stainless Steel Rope Wire Mesh Popular Usages:
Stainless steel wire cable net are widely used in the decoration, construction and transformation of animal cages, bird nets, animal fences and gardens in zoos, wildlife parks, marine parks and other similar environments. In addition, the stainless steel rope mesh is also suitable for sports, acrobatics, home decoration, architectural decoration and other fields.

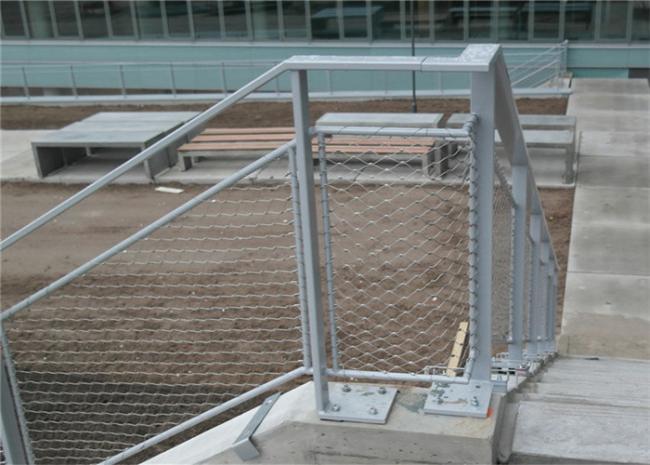

- Balustrades & Staircases
- 3D Structures
- Suspended Ceilings
- Fencing
- Zoo Cages,Aviary Netting ,Animal Enclosure
- Safety Net on Bridges , Buildings or Windows
- Climber Trainer
- Playground
What is feature of rope mesh ?
1. Mesh designed under high break loading capacity.corrosion resistant.
2. 100% install guarantee.precsion panel dimension.
3. Suit tube frame or tension rope structure.
4. Irregular shape,large piece of mesh can be manufactured.
Our Services:
1.We are the factory, the quality is controlled by ourselves, and the price is very nice.
2.Support the customization, give me the specifications you want.
3.We have a professional installation team.
4.If the products you receive have any quality problems, we promise to return the goods timely.
If you are interested in our products,please don't hesitate to contact with me!We supply sample for free.
