2mm Metal Wire Rope Mesh SUS316l 100x100mm Wire Mesh For Growing Vines
2mm Metal Plant Trellis Wire Rope Mesh Cable Mesh For Green Facade
Plant Trellis Wire Rope Cable Mesh is a stainless steel woven wire mesh made of excellent tensile resilience and flexibility. It is weather resistant, very strong, and requires little maintenance. Stainless Steel Mesh for indoor and outdoor applications. Installed on railings or stairs to provide stability and clear guidance. On the façade, it can be used as a climbing support for the plants, as well as an elaborate accent as a dividing element in a large space. The biggest advantage is its delicate structure. Especially in zoo enclosures or nets, the unavoidable obstacles are minimal due to visual impairment.
Specifications:
| Material | SUS 304, SUS 304l, SUS316, SUS316l |
| Wire Diameter | 1.2mm, 1.5mm, 2.0mm, 2.5mm ,3.0mm ,3.2mm ,4.0mm ,5.0mm |
| Mesh Aperture |
25X25mm,30X30mm,35X35mm,40X40mm,50X50mm,60X60mm |
| Size | Height: 0.5 - 50meter Length: 0.5 - 90 meters.It can be customized |
| Mesh type | Woven Type,Ferruled Type |
| Cable structure | 7*7 or 7*19 |
Due to different applications from customers, the specifications of the stainless steel wire rope net would be different. So we start to produce the ss rope net after the customer tell us the details of the rope mesh. And the mesh opening depends on the usage of the rope net. By different mesh opening sizes and stainless steel wire rope diameter, Plant Trellis wire rope cable mesh can have different strength to meet the needs for different applications.
| Stainless Steel Wire Rope Mesh (Woven Type) | |||||
| Item No.s | Cable Diameter | Mesh Opening Size (W×H) |
Normal Break
|
||
| inch | mm | inch | mm | ibs. | |
| YT-3212W | 1/8 | 3.2 | 4.75×4.75 | 120×120 | 1,600 |
| YT-3210W | 1/8 | 3.2 | 4×4 | 102×102 | 1,600 |
| YT-3290W | 1/8 | 3.2 | 3.55×3.55 | 90×90 | 1,600 |
| YT-3250W | 1/8 | 3.2 | 2×2 | 51×51 | 1,600 |
| YT-2510W | 3/32 | 2.4 | 4×4 | 102×102 | 920 |
| YT-2490W | 3/32 | 2.4 | 3.55×3.55 | 90×90 | 920 |
| YT-2560W | 3/32 | 2.4 | 2.4×2.4 | 60×60 | 920 |
| YT-2550W | 3/32 | 2.4 | 2×2 | 51×51 | 920 |
| YT-2060W | 5/64 | 2.0 | 2.4×2.4 | 60×60 | 676 |
| YT-2050W | 5/64 | 2.0 | 2 | 51×51 | 676 |
| YT-1680W | 1/16 | 1.6 | 3.15 | 80*80 | 480 |
| YT-1650W | 1/16 | 1.6 | 2×2 | 51×51 | 480 |
| YT-1630W | 1/16 | 1.6 | 1.2×1.2 | 30×30 | 480 |
| YT-1625W | 1/16 | 1.6 | 1×1 | 25.4×25.4 | 480 |
Mesh Orientation:
there are two kind of mesh orientations :
-
Horizontal
-
Vertical

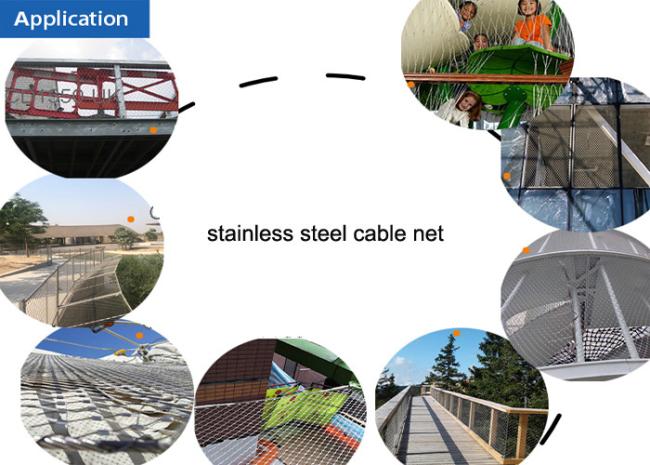

Applications:

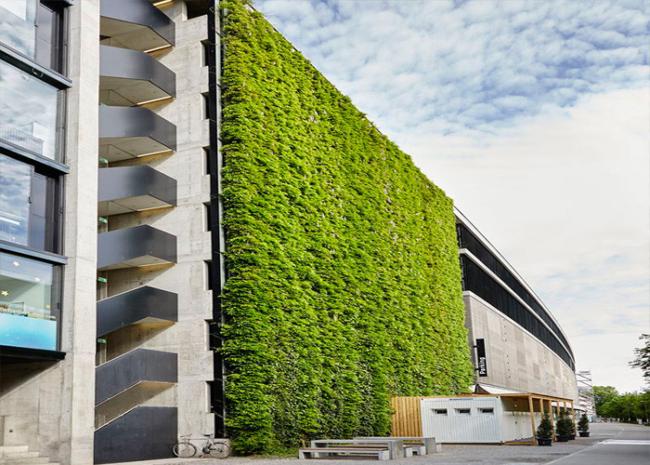

- Green Facade - Cable System for Most Climbing Plants
- Aviary Netting - Lightweight, Durable and Long Lasting
- Cable Zoo Mesh - Solution to Enclosing Most Animals
- Helipad Safety Net - Modular Heliport Webbing
- Safety Net - Structural Measure to Prevent Suicide
- Cable Mesh - Excellent Solution to Safety
- Steel Mesh Balustrade - bridge, stair, balcony, path
What are the advantages of stainless steel rope net for plant climbing net plant support?
1. The metal plant trellis rope mesh is corrosion-resistant, non-rusting, strong in tensile strength, resistant to wind, frost, rain and snow, and does not require maintenance;
2. The metal plant trellis rope mesh has good softness, good sight, flame retardant, anti-tear and pull, and long service life;
3. Metal wire rope cable mesh is beautiful, high-end atmosphere, improve user taste and grade of the place used;
4. Green and environmental protection, without any chemical treatment, can be reused.
5. Complete specifications and customized sizes.

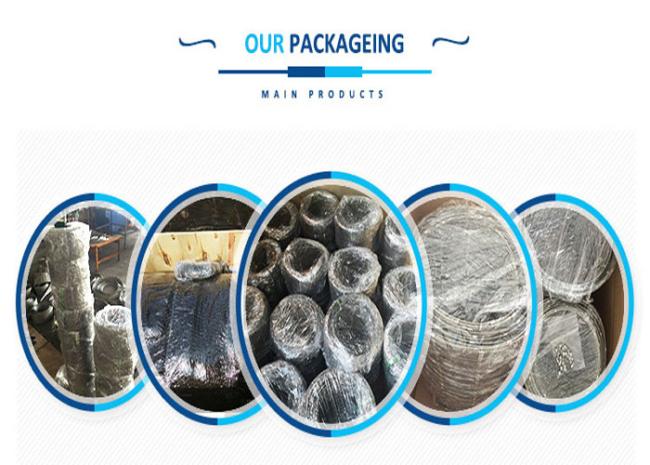

Packing And Shipping Details:
Packing:plastic foam inside then wooden cases outside.
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
1. How to make an inquiry of stainless steel cable wire rope mesh?
You need to provide material, rope diameter, rope construction, mesh apertures,mesh length & width and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll provide formal quotatiom list after your inquiry received.
2. Could you provide stainless steel wire rope mesh sample ? How long does the sample need to be prepared?
Yes, we can provide sample . Sample production time is 5~7 days
3. Can you tell me how to install the rope mesh?
Yes, we have professional engineers to help you install the rope mesh. And can solve any problems you have in the installation
4. Can you provide customized services?
Yes,we can. We can produce according to your needs, and can recommend you a cost-effective product for you.
5. What is your MOQ ?
There is no minimum order quantity, we will do the best to support you.
About Us:
We are the professional manufacture of stainless steel green wall wire rope crawl net and any other wire mesh.
We have more than 13 years experience in producing stainless steel wire rope net .
Based on our experience, with our reasonable price, high quality and considerate service. Our products enjoy high reputation in the market.
