Flexible Potato Grapes Trellis Stainless Steel Rope Netting For Green Wall

Green walls and facades can contribute to building warmth in the cooler months. According to the Growing Green Guide, green facades create an insulating layer that can increase the temperature close to the wall during winter by up to 3.8 degrees.

But green infrastructure can fail during winter for various reasons – such as inappropriate plant selections, failure to protect plant root systems or a wind-chill effect.

Specifications:

Due to different applications from customers, the specifications of the stainless steel wire rope net would be different. So we start to produce the ss rope net after the customer tell us the details of the rope mesh. And the mesh opening depends on the usage of the rope net. By different mesh opening sizes and stainless steel wire rope diameter, Plant Trellis wire rope cable mesh can have different strength to meet the needs for different applications.

Mesh Orientation:

Stainless steel wire rope mesh can be installed horizontally or vertically depending on the actual engineering needs.

•  Horizontal

•  Vertical

Mesh Type:

1. Knotted mesh

2. Ferruled mesh

	Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

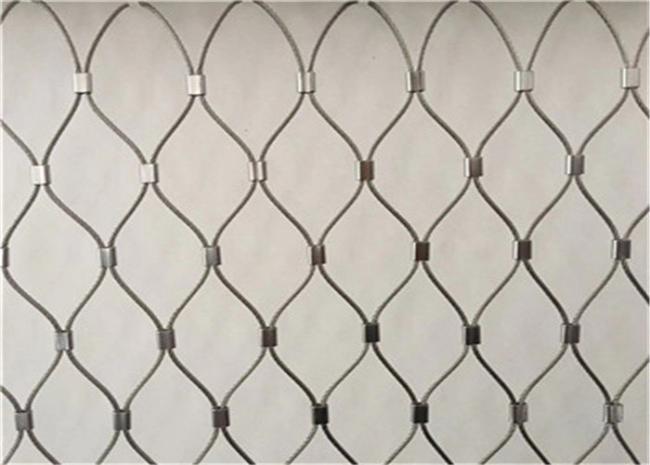

	Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Stainless Steel Rope Netting Details:

Applications:

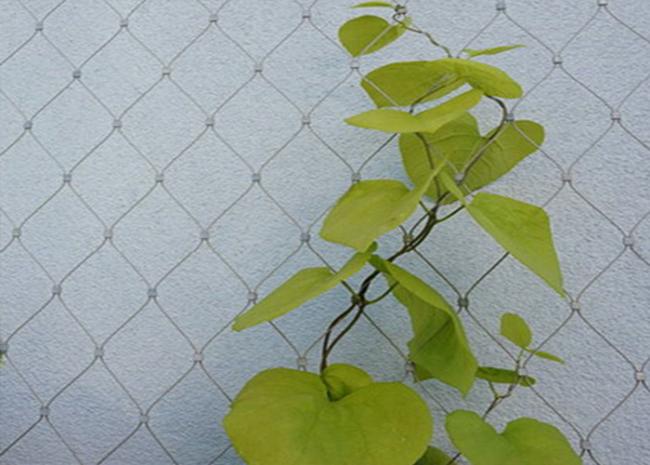

1.  Green Facade - Cable System for Most Climbing Plants
2.  Aviary Netting - Lightweight, Durable and Long Lasting
3.  Cable Zoo Mesh - Solution to Enclosing Most Animals
4.  Helipad Safety Net - Modular Heliport Webbing
5.  Safety Net - Structural Measure to Prevent Suicide
6.  Cable Mesh - Excellent Solution to Safety
7.  Steel Mesh Balustrade - bridge, stair, balcony, path

​

What are the advantages of stainless steel rope netting?

Some of its features include:

•  Non-corrosiveness – Webnet is made from 316-grade (marine-grade) stainless steel wire rope, making it resistant to rust and the effects of sea-spray.

•  Customisation – in terms of aperture-opening size and shape, wire rope diameter, colour, span, posts, fittings and more.
•  Low-maintenance needs and longevity – a Webnet stainless steel mesh balustrade requires very little in the way of maintenance or cleaning, and can last two decades or more.
•  Useful for indoor or outdoor projects – being robust, non-corrosive, and difficult to break or cut makes the material suitable for both inside and outside environments, and for installations involving large crowds.
•  Non-climbable – by using a smaller aperture size, a Webnet balustrade can be made fully non-climbable.
•  Suits public and private spaces – while Webnet is often used for commercial architectural projects, it can also be used to create balustrades in domestic settings.

Packing And Shipping Details:


Packing : plastic foam inside then wooden cases outside.
Delivery : by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.




1. How to make an inquiry of stainless steel rope netting?

You need to provide material, rope diameter, rope construction, mesh apertures,mesh length & width and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll provide formal quotatiom list after your inquiry received.

2. Could you provide stainless steel rope netting sample ? How long does the sample need to be prepared?

Yes, we can provide sample . Sample production time is 5~7 days

3. Can you tell me how to install the rope mesh?

Yes, we have professional engineers to help you install the ss rope mesh. And can solve any problems you have in the installation

4. Can you provide customized services?

Yes,we can. We can produce according to your needs, and can recommend you a cost-effective product for you.

5. What is your MOQ ?

There is no minimum order quantity, we will do the best to support you.

About Us:

We are the professional manufacture of stainless steel green wall wire rope netting and any other wire mesh.
We have more than 13 years experience in producing stainless steel wire rope net .

Based on our experience, with our reasonable price, high quality and considerate service. Our products enjoy high reputation in the market.
