Hand Woven AISI 316 Stainless Steel Cable Mesh Ferruled 60x60mm
Hand - Woven Ferrule AISI 316 Flexible Stainless Steel Cable Netting
Ferrule AISI316 Flexible Stainless Steel Cable Netting Details:
Stainless steel cable netting is widely used, including zoo enclosure, Aviary net,zoo mesh fence, safety mesh,balcony mesh,architecture mesh and decorative mesh, etc. It is also an ideal choice for indoor and outdoor railings such as staircases, railings, guardrails, bridge railings, etc. From a safety point of view, the stainless steel cable netting railing infill mesh is sturdy and firm, which can effectively prevent people from falling. It can be designed as a traditional balustrade or as a protective wall from the ceiling to the ground. The visibility of the stainless steel cable netting can not only create a gorgeous and transparent space effect, but also transform the designer's diverse inspiration into reality. Stainless steel cable netting has become one of the architectural design elements that modern designers love.
| Material | AISI304,AISI316,AISI304L,AISI316L |
| Mesh Type | Ferruled |
| Application | Balustrade Mesh,Balcony Mesh,Safety Mesh,Zoo Enclosure,Aviary Mesh |
| Features | Flexible,soft,x-tend,support customization |
| Cable Structure | 7x7,7x19 |
| Surface Treatment | Polish |
| Mesh Size | 0.8x50m,1x1m,1x2m,1x5m,1.5x1m,1.5x3m,2x3m,2x6m |
| Mesh Opening Shape | Diamond |
| Wire Diameter | 1.2mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm |
| Mesh Opening | 25x25mm,30x30mm,40x40mm,50x50mm,60x60mm,80x80mm,100x100mm |
| Color | Stainless steel primary color,black,red,blue |
| Sample | Free,but the customer need to pay for the shippingcost |
| Certificate | CE,SGS |
Ferrule AISI 316 Stainless Steel Cable Netting Specifications :
Stainless steel cable netting detailed description:
- Cable Diameter : 1.2mm,1.5mm,1.6mm,2.0mm,2.4mm,3.2mm,customizable
- Mesh Hole Size : 40x40mm,50x50mm,60x60mm,80x80mmcustomized
- Cable Structure : 7 x7,7x19
- The breaking load (lbs) : 270 to 1600
-
Mesh type : Inter-woven type (Sleeveless Webnet) and Ferrule Type (Stainless steel ferrule)
|
Ferrule AISI316 Stainless Steel Cable Netting |
|||||
| Item | Cable Diameter | Mesh Hole Size | Normal Break | ||
| inch | mm | inch | mm | lbs | |
| YT-3212F | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
| YT-3210F | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
| YT-3290F | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
| YT-3276F | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
| YT-3250F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 1600 |
| YT-2410F | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| YT-2490F | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| YT-2476F | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| YT-2460F | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| YT-2450F | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| YT-2076F | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| YT-2060F | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| YT-2050F | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| YT-2038F | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| YT-1676F | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| YT-1650F | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| YT-1638F | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| YT-1630F | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| YT-1625F | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| YT-1238F | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| YT-1230F | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| YT-1225F | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |

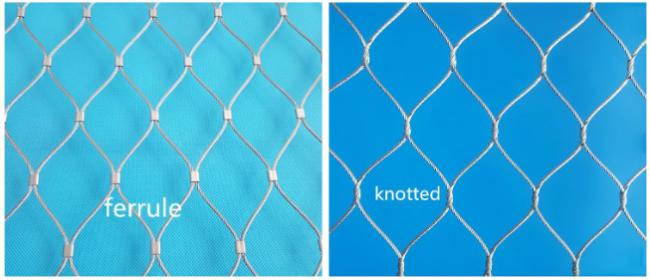

Different Mesh Types :
There are two kinds of mesh types. one is ferrule type, the other is knotted also named inter - woven type.You can choose anyone you prefer.
Cable Structure Show:
Stainless Steel Cable Netting Application :
Stainless steel cable netting can be used in many areas, like stadium fence mesh, stair protection cable mesh, bridge balustrade mesh, road safety mesh fence, balcony protection mesh etc.

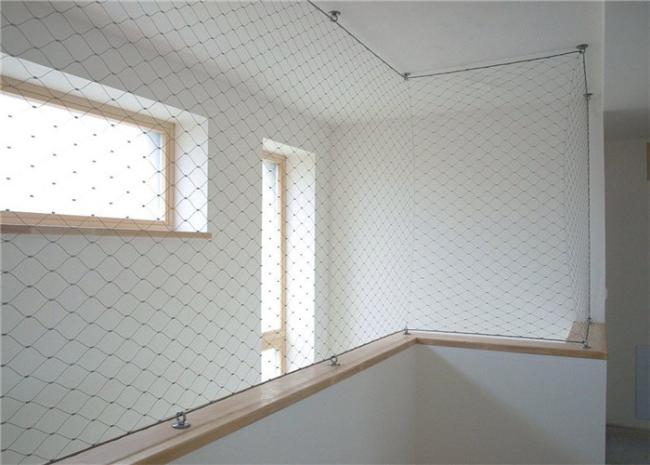

The following is the common various railing mesh for kinds situations:
-
stainless steel railing cable mesh for spiral staircases
-
stainless steel fall protection railing infill mesh
-
stainless steel cable mesh for balcony protection

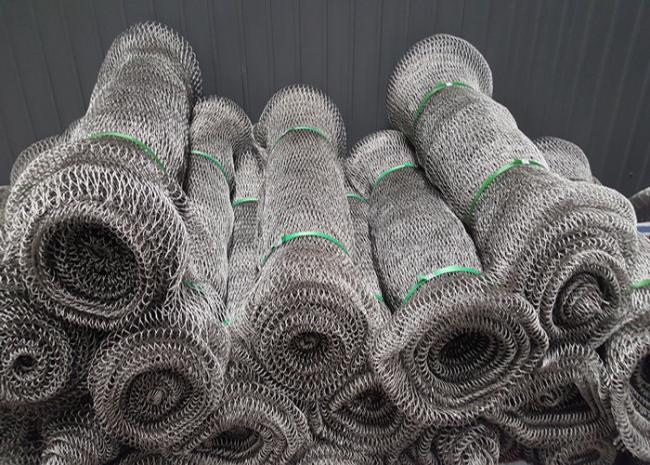

Packing And Delivery Details :
-
Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.
-
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
-
Lead time:The order could be arranged within 24hours, lead time is between 7-15 days depending on the quantum of order.
-
As customer's requirements
FAQ:
Q : Can I get a piece of your products sample?
A : Yes, If the sample is available, it will be free and be provided anytime. If unavailable, need to customize.
Q : What type of metal mesh does Yuntong offer?
A : we are specialized in the production of metal wire mesh,such as the stainless steel wire rope mesh,decorative net,metal aluminum mesh.We have a professional production line of metal wire mesh .
Q : Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
Q : What are fittings and how are they used?
A : We have hundreds of fittings for our stainless steel wire rope mesh products. Different application scenarios of rope mesh comes with different accessories,we will provide you with a detailed installation scheme.
Q : Which countries do you export to?
A : Our products are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
